ASTM ASME ANSI 316L Seamless Stainless Steel Round Pipe 2" Sch10
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 316L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes will be covered with waterproof protective packing materials; |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 100 Tons per month |
|
Detail Information |
|||
| Name: | 316L Seamless Ss Pipe | Shape: | Round |
|---|---|---|---|
| Outer Diameter: | 60.3mm | Thickness: | 2.77mm |
| Length: | Standard 6 Meters Or Customized | Finish: | Annealed Or Un Annealed |
| Thickness Tolerance: | ±5% | Grade: | ASTM A312 TP316L |
| Standard: | ASTM A312 | MOQ: | 1 Ton |
| Highlight: | ANSI 316l stainless steel pipe,316l stainless steel pipe 4in,4in 316l seamless tube |
||
Product Description
ASTM ASME ANSI 316L Seamless Stainless Steel Round Pipe 2" Sch10
Grade 316L is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316L better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments.
The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.
Compared to chromium-nickel austenitic stainless steels, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures.
Product introduction:
| Commodity | ASTM ASME ANSI 316L Seamless Stainless Steel Round Pipe 2" Sch10 |
| Grade | 316L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Wall Thickness | 1.5-30mm |
| Outside diameter | 6-630mm |
| Length | 1000-6000mm |
| Surface | Pickled |
| Technique | seamless |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
316Ti stainless steel is added Ti to SUS316 steel to improve intergranular corrosion resistance. The equipment is used to resist sulfuric acid, phosphoric acid, acetic acid and acetic acid . |
Chemical Composition:
| Grade | Chemical Composition (WT %) | |||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | |
| 316L | ≤ 0.030 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 16.00 to 18.00 | 10.00-14.00 | 2.00-3.00 |
Physical Property:
| Physical Property | |||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | / | Hardness(HV/HB) | Density |
| ≥480MPa | ≥175MPa | ≥40% | / | ≤187HB | 7.98g/cm3 |
316L is widely used in chemical industry because of its excellent corrosion resistance. 316L is also a derivative steel of 18-8 austenitic stainless steel, adding 2~3% Mo element.
The following table is the size of the stainless steel seamless tube. For any other detail information, please feel free to contact us.
Typicall material :
| Seamless and redrawn | |||
| ASTM Grade | UNS no. | Condition | Specifications |
| 304 | S30400 | Hard | AMS 5566/5564 |
| 304 | S30400 | Hard | MILT 5695 |
| 304 | S30400 | Hard | LN 9396 |
| 304 | S30400 | Hard | LN 9398 |
| 304 | S30400 | Annealed | MILT 8504 |
| 304L | S30403 | Hard | AMS 5569 |
| 304L | S30403 | Hard or annealed | AIR 9164 |
| 304L | S30403 | Hard or annealed | AIR 9160 |
| 304L | S30403 | Annealed | AIR 9423 |
| 304L | S30403 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | AMS 5645, AMS 5557/5570 |
| 321 | S32100 | Hard or annealed | AIR 9164 |
| 321 | S32100 | Hard or annealed | AIR 9160 |
| 321 | S32100 | Annealed | AIR 9423 |
| 321 | S32100 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | BSI T67 |
| 321 | S32100 | Annealed | LN 9396 |
| 321 | S32100 | Annealed | MILT 8808 |
| 321/347 | S34700 | Annealed | LN 9398 |
| 347 | S34700 | Annealed | AMS 5571/5556 |
| 347 | S34700 | Hard | BSI T68 |
| 347 | S34700 | Annealed | BSI T66 |
| 347 | S34700 | Annealed | BSI T72 |
| 347 | S34700 | Annealed | MILT 8808 |
| 304/304L | S30400/S30403 | Hard | MILT 6845 |
| 304L/321/347 | S30403/S32100/S34700 | Annealed | MILT 8606 |
| 304L/316L/321/347 | S30403/S32100/S34700 | Hard | MILT 8973 |
| Alloy 625 | N06625 | Annealed | AMS 5581 |
| Alloy 718 | N07718 | Annealed | AMS 5590 |
| Nickel 200 | N02200 | Annealed |
|
SCH Table:
Surface Finish:
Packaging:
ASTM ASME ANSI 316L Seamless Stainless Steel Round Pipe 4" Sch10 Packaging Details:
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Type 316L stainless steel contains molybdenum and is therefore significantly superior to 304 stainless steel in pitting resistance in Marine and chemical industry environments

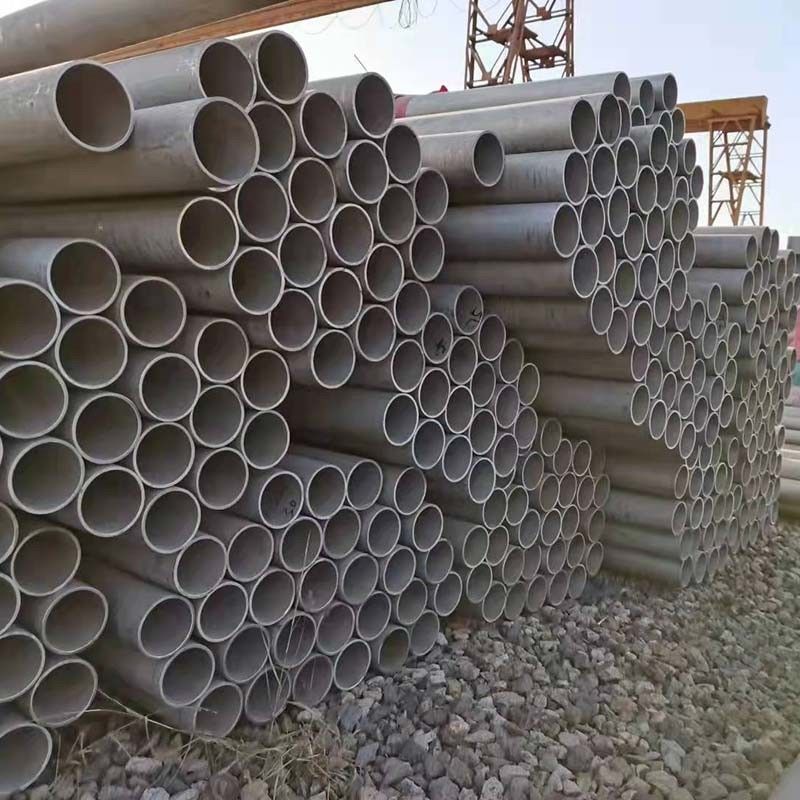

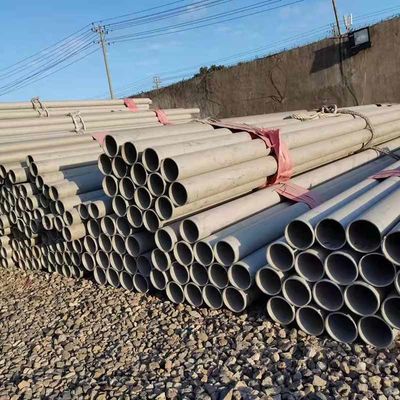

Product display:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
