• 317L SS Round Bar 4 Inch
317L SS Round Bar 4 Inch

317L SS Round Bar 4 Inch

Product Details:

Place of Origin: China
Brand Name: no brand
Certification: MTC; SGS
Model Number: 317L

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: Each steel bar has the single protective package and several be bundled togehter
Delivery Time: 10-30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 tons per month
Get Best Price Contact Now

Detail Information

Name: Cold Down 317L SS Round Bar Technique: Hot Rolled
Price Term: FOB, CFR, CIF,EXW Packing: Standard Sea-worthy Packing
OD: 101.6 Mm Length: Standard Length 6 M Or Customized
Tolerance: ±5% Standard: ASTM ASME
Surface: Black Other Shape: Square / Heaxgon
High Light:

317L SS Round Bar


SS Round Bar


4 Inch 317L round bar

Product Description

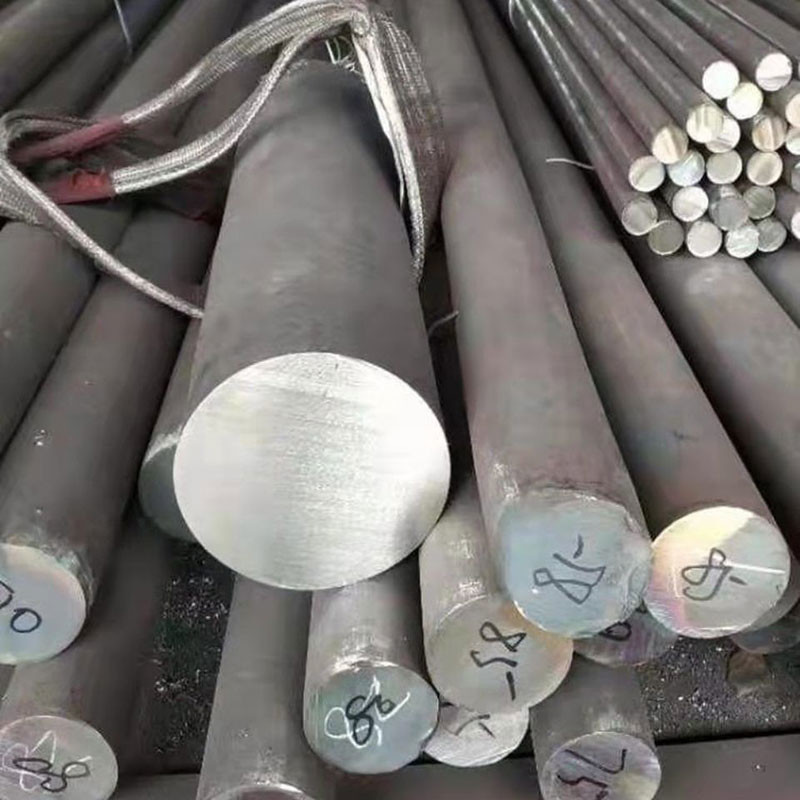

Hot Rolled 317L Stainless Steel Round Bar With Diameter of 4"

317L(00Cr19Ni13Mo3, SUS317L) alloy is an austenitic stainless steel based on molybdenum. Compared with conventional chrome-nickel austenitic stainless steel such as 304 alloy, it has better chemical corrosion resistance. In addition, compared with conventional stainless steel, 317L alloy has higher ductility, stress corrosion resistance, compressive strength and high temperature resistance. It is low carbon grade or L grade, which is resistant to sensitization during welding and heat treatment.


Product Description:


Commodity Hot Rolled 317L Stainless Steel Round Bar With Diameter of 4"
Grade 317L
Technique Hot rolled
Certification SGS,BV,IQI,TUV,ISO,etc
Diameter 101.6
Length standard 6m or customized length
Surface Black
Delivery time About15-30 days or based on the sales contract
Advantages Construction field, ships building industry, petroleum, chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields.


Round Bar:


Stainless steel round bar for machining in a wide range of grades, including duplex and super-duplex stainless steel. ... Chuangen Metal stainless bar steel is delivered with peel turned, burnished or rough machined surface, depending on size. It can be supplied in random lengths or cut into fixed lengths.


Chemical Composition:


Grade Chemical Composition (WT %)
Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel Mo
317L ≤ 0.03 ≤ 2.00 ≤ 0.045 ≤ 0.030 ≤ 1.00 18.0- 20.0 11.00 -15.00 3.00-4.00


Physical Property:


Physical Property
Tensile Strength(Mpa) Yield Strength(Mpa) Elongation(%) / Hardness(HV/HB) Density
≥480MPa ≥176MPa ≥40% / ≤200HV 7.98g/cm3


Advantage of 317L:


Compared with 316L, 317L steel has better seawater resistance and SCC resistance. It is used for Chemical equipment requiring high corrosion resistance such as Chemical ship, Chemical Product Reactor and so on.


Surface :


1: bright polished as cold drawn

2: black surface as hot rolled

Surface :


317L SS Round Bar 4 Inch 0



317L SS Round Bar 4 Inch 1


Hot Rolled 317L Stainless Steel Round Bar With Diameter of 4" Packing :


1:Each steel bar has the single protective package and several be bundled togehter ;

2:Stainless steel flat bars will be packaged with protective packing materials

and bundled with strong strips ;

3: Well loaded and be transported to the loading port .


The innner size container as below :


1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.


Product Display:


317L SS Round Bar 4 Inch 2

317L SS Round Bar 4 Inch 3


Advantange of 316L :


316L is very low carbon 316 steel. The performance of 316 steel plus intergranular corrosion resistance.




Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
