• TP304 Cold Drawn Seamless Tube
TP304 Cold Drawn Seamless Tube

TP304 Cold Drawn Seamless Tube

Product Details:

Place of Origin: China
Brand Name: no brand
Certification: MTC; SGS
Model Number: 304

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: Pipes will be covered with waterproof protective packing materials;
Delivery Time: 15-30 working days
Supply Ability: 100 Tons per month
Get Best Price Contact Now

Detail Information

Name: 304 Seamless Ss Pipe Shape: Round
Outer Diameter: 114.3mm Thickness: 6.02mm
Length: Standard 6 Meters Or Customized Finish: Annealed Or Un Annealed
Thickness Tolerance: ±5% Grade: ASTM A312 TP304
Standard: ASTM 312 MOQ: 1 Ton
High Light:

TP304 Cold Drawn Seamless Tube


4" Sch40 stainless steel Pipe


TP304 SS Seamless Tube

Product Description

ASTM A312 304 Seamless Stainless Steel Round Pipe 1 " Sch40


304 Stainless Steel is an austenite steel and contains between 16% and 24% chromium and up to 35% nickel. The most common type of 304 stainless steel is the 18/8 or 18-8 steel, which constitutes 18% chromium and 8% nickel. Additionally, it contains about 2% manganese, 0.1% nitrogen, 0.03% sulphur, 0.08% carbon, 0.75% silicon and 0.045% phosphorous. 304 stainless steel is the most popular and widely used grade of steel.


Using 304 stainless steel is a smart choice for your budget’s project and longevity. It is cost-effective in comparison to other materials. Its high quality and durability ensures that your product lasts a long time and the design of it is suitable for home and commercial use.


Product introduction:


Commodity ASTM A312 304 Seamless Stainless Steel Round Pipe 1 " Sch40
Grade 304
Certification SGS,BV,IQI,TUV,ISO,etc
Wall Thickness 1.5-30mm
Outside diameter 6-630mm
Length 1000-6000mm
Surface Pickled
Technique seamless
Delivery time About 15 -30 days or based on the sales contract
MOQ 1 Ton

304 stainless steel tube as stainless steel is used for food equipment, general chemical equipment, atomic energy industry equipment

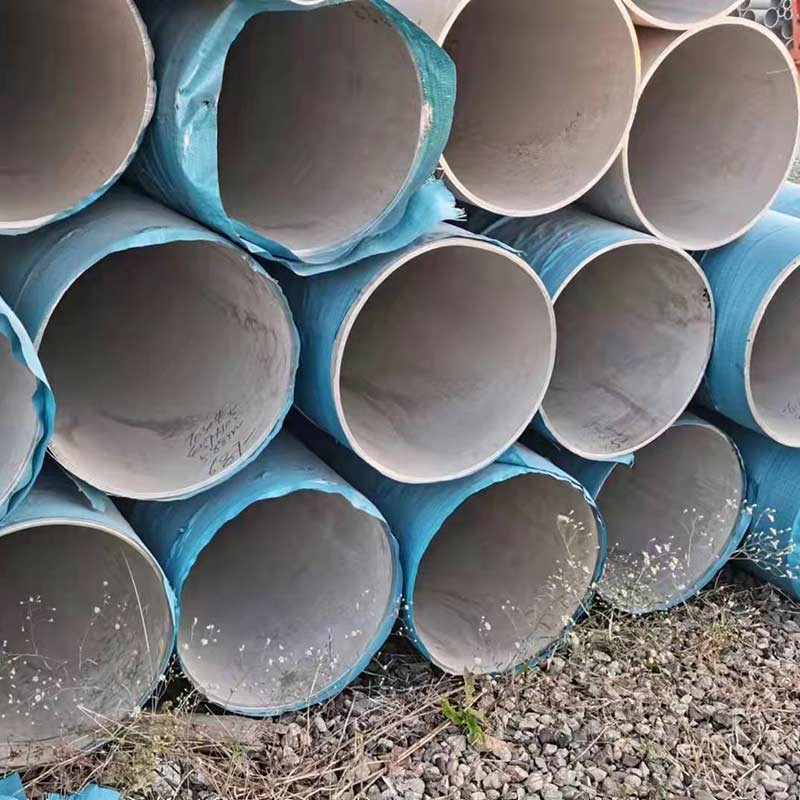

Product Display :


TP304 Cold Drawn Seamless Tube 0


Advantage of 304 :


304 stainless steel is one of the most widely used chromium - nickel stainless steel, as a widely used steel, has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; Stamping, bending and other thermal processing, no heat treatment hardening phenomenon (use temperature -196℃~800℃). Corrosion resistance in the atmosphere, if it is an industrial atmosphere or heavily polluted area, it needs to be cleaned in time to avoid corrosion. Suitable for food processing, storage and transportation. It has good machinability and weldability. Plate heat exchanger, corrugated pipe, household articles (1, 2 class tableware, cabinet, indoor pipeline, water heater, boiler, bathtub), auto parts (windshield wipers, mufflers, mold products), medical appliances, building materials, chemistry, food industry, agriculture, ship parts, etc. 304 stainless steel for the national approval of food grade stainless steel.


Chemical Composition:


Grade Chemical Composition (WT %)
C Mn P S Si Cr Ni
304 ≤ 0.08 ≤ 2.00 ≤ 0.045 ≤ 0.030 ≤ 1.00 18.0 to 20.0 8.0 to 10.0


Physical Property:


Physical Property
Tensile Strength(Mpa) Yield Strength(Mpa) Elongation(%) / Hardness(HV/HB) Density
≥520MPa ≥205MPa ≥40% / ≤200HV 7.93g/cm3


The following table is the size of the stainless steel seamless tube. For any other detail information, please feel free to contact us.


Typicall material :


Seamless and redrawn
ASTM Grade UNS no. Condition Specifications
304 S30400 Hard AMS 5566/5564
304 S30400 Hard MILT 5695
304 S30400 Hard LN 9396
304 S30400 Hard LN 9398
304 S30400 Annealed MILT 8504
304L S30403 Hard AMS 5569
304L S30403 Hard or annealed AIR 9164
304L S30403 Hard or annealed AIR 9160
304L S30403 Annealed AIR 9423
304L S30403 Annealed AIR 9424
321 S32100 Annealed AMS 5645, AMS 5557/5570
321 S32100 Hard or annealed AIR 9164
321 S32100 Hard or annealed AIR 9160
321 S32100 Annealed AIR 9423
321 S32100 Annealed AIR 9424
321 S32100 Annealed BSI T67
321 S32100 Annealed LN 9396
321 S32100 Annealed MILT 8808
321/347 S34700 Annealed LN 9398
347 S34700 Annealed AMS 5571/5556
347 S34700 Hard BSI T68
347 S34700 Annealed BSI T66
347 S34700 Annealed BSI T72
347 S34700 Annealed MILT 8808
304/304L S30400/S30403 Hard MILT 6845
304L/321/347 S30403/S32100/S34700 Annealed MILT 8606
304L/316L/321/347 S30403/S32100/S34700 Hard MILT 8973
Alloy 625 N06625 Annealed AMS 5581
Alloy 718 N07718 Annealed AMS 5590
Nickel 200 N02200 Annealed




SCH Table:


TP304 Cold Drawn Seamless Tube 1

Surface Finish:


TP304 Cold Drawn Seamless Tube 2




TP304 Cold Drawn Seamless Tube 3


Cold Drawn TP304 Stainless Steel Pipe 4 " Sch40 SS Round Tube Packaging Details:


1: Pipes be covered with waterproof protective packing materials;

2: Then be bundled with strips together;

3: Well loaded and be transported to the loading port.


The inner size container as below:


1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.




Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
