Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet

Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet

Product Details:

Place of Origin: China
Brand Name: SHOUGANG; ANSTEEL; MASTEEL; BXSTEEL
Certification: MTC; SGS;
Model Number: DC51D

Payment & Shipping Terms:

Minimum Order Quantity: 25 Ton
Price: Negotiable
Packaging Details: Coils covered with waterproof protective packing materails
Delivery Time: 10-25 working days
Payment Terms: T/T
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Name: PPGI Coil Width: 1250 Mm
Surface Treatment: Galvanized Price Term: FOB, CFR, CIF
Edge: Mill Edge Slit Edge Application: Roofing, Industry, Building Etc.
Surface: Skinpass Packing: Standard Seaworthy Package
Alloy Or Not: Alloy Standard: ASTM/EN/GBIT/3198-2010
High Light:

Prepainted Galvanized Steel Coil

,

Prepainted Metal Sheet Steel Coil

,

PPGI Prepainted Steel Coil

Product Description

Prepainted Galvanized Steel Coil/PPGI Zinc Coating Metal Sheet



PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate. The term is an extension of GI which is a traditional abbreviation for Galvanized Iron.



The organic coating on hot dip galvanized steel plate to get the product is hot dip galvanized color coated plate. In addition to the protective effect of zinc, the organic coating on the surface also plays the role of isolation protection and rust prevention, and the service life is longer than the hot galvanized plate. The zinc content of hot-dip galvanized substrate is generally 180g/m2(double-sided), and the zinc content of hot-dip galvanized substrate for external building is up to 275g/m2.



Product Introduction:



Commodity Prepainted Galvanized Steel Coil/PPGI Zinc Coating Metal Sheet
Grade SGCC/ CGCC/ TDC51DZM/ TDC52DT350GD/ DX51D+Z
Brand SHOUGANG; ANSTEEL; MASTEEL; BXSTEEL
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.14-1.2 MM
Width  1250 MM, 1219MM, 500MM, 600MM,900MM
Length coil
Surface Prepainted as you require
Standard JIS,AISI,ASTM,GB,DIN, BS EN, AS
Delivery time About 25  or based on the sales contract
MOQ 25 Ton
Zinc coating

40-275g/m²





Advantages:



  • The use of hot dip galvanized steel strip as the base material of color coating steel strip in addition to the zinc layer protection, the zinc layer of the organic coating to cover and protect the rust of the steel strip, the service life is longer than galvanized strip, about 1.5 times.

Product Show:

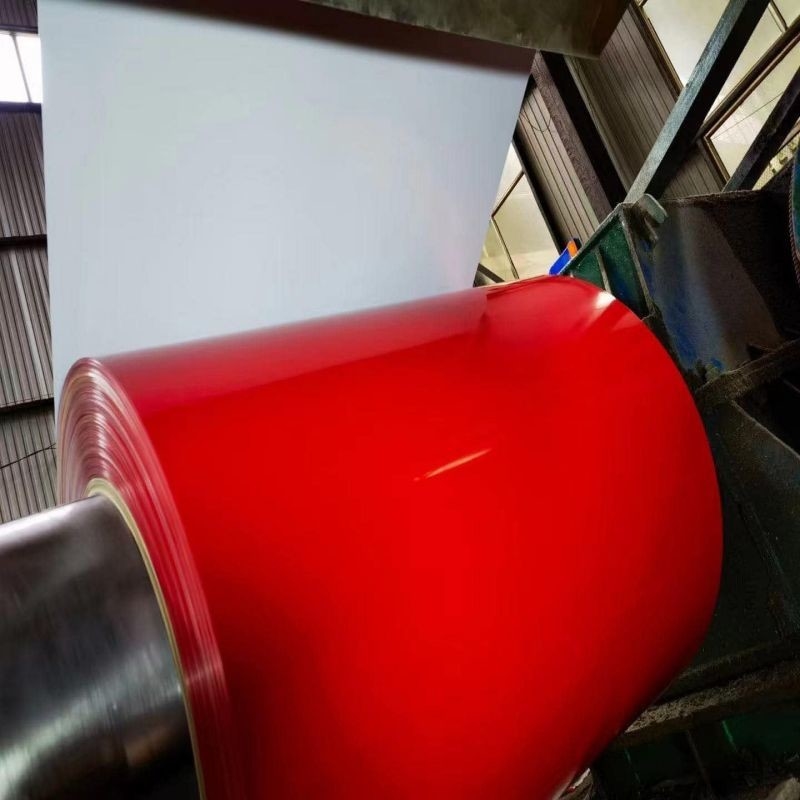

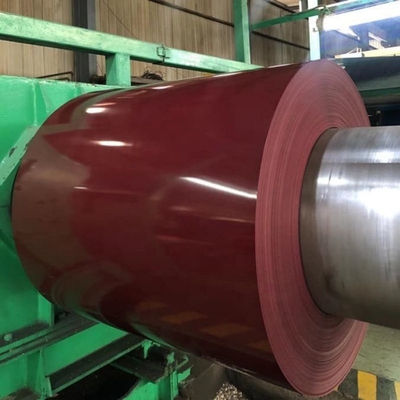

Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet 0Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet 1



PP:



The coating used for color coating rolls according to the use of different environment to choose the appropriate resin, such as polyester silicon modified polyester, PVC plastisol, poly vinylidene chloride and so on. Users can choose according to usage.



Application:



Pre-painted Galvanized Iron (PPGI)

The hot dip metallic coating process is typically used to coat steel sheet and coil which all may be factory pre-painted like PPGI. PPGI is also used to refer to metallic coated steels that have been pre-painted, by TSC offers PPGI that is zinc coated steel



Gauge Size Table:



Gauge SS inch SS mm Mild Steel Galvanized Steel

3 0.25 6.35 0.2391
4 0.2344 5.95376 0.2242
5 0.2187 5.55498 0.2092
6 0.2031 5.15874 0.1943
7 0.1875 4.7625 0.1793
8 0.165 4.191 0.1644 0.168
9 0.1562 3.96748 0.1495 0.1532
10 0.1406 3.57124 0.1345 0.1382
11 0.125 3.175 0.1196 0.1233
12 0.1094 2.77876 0.1046 0.1084
13 0.0937 2.37998 0.0897 0.0934
14 0.0781 1.98374 0.0747 0.0785
15 0.0703 1.78562 0.0673 0.071
16 0.0625 1.5875 0.0598 0.0635
17 0.0562 1.42748 0.0538 0.0575
18 0.05 1.27 0.0478 0.0516
19 0.0437 1.10998 0.0418 0.0456
20 0.0375 0.9525 0.0359 0.0396
21 0.0344 0.87376 0.0329 0.0366
22 0.0312 0.79248 0.0299 0.0336



Surface finish :



Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet 2Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet 3


Surface Finish Definition Application
2B Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface General application Medical instruments, Tableware
BA Bright heat treament after cold rolling Kitchen utensil, kitchenware, architectural
8K A mirror-like reflective surface by polishing with finer abrasives over 800mesh Construction, mirrors, plate sets, decoration elevators
HL Finished by continuous linear polishing Architectural purpose, Escalators, kitchenware, vehicles
NO.1 Finished by hot rolling, annealing and picking, characterized by white pickled surface Chemical industry Equipment, industrail tanks
NO.4 Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 Kitchen utensils, Building Construction, Medical equipment



What is the difference between galvanized and galvalume?



Galvanized steel is made completely of zinc, while galvalume includes aluminum, zinc, and a small amount of silicon. This provides superior durability and resistance to corrosion in comparison to galvanized coating



Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet 4

Packaging :



Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet 5



Prepainted Galvanized Steel Coil/PPGI Zinc Coating Metal Sheet packaging details :

1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel strip ;
3: Well loaded and be transported to the loading port .

The innner size container as below :

1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.



Product Display:





Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet 6Prepainted Galvanized Steel Coil PPGI Zinc Coating Metal Sheet 7



WHY CHOOSE US:



Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: FOB, CIF, CFR,

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
