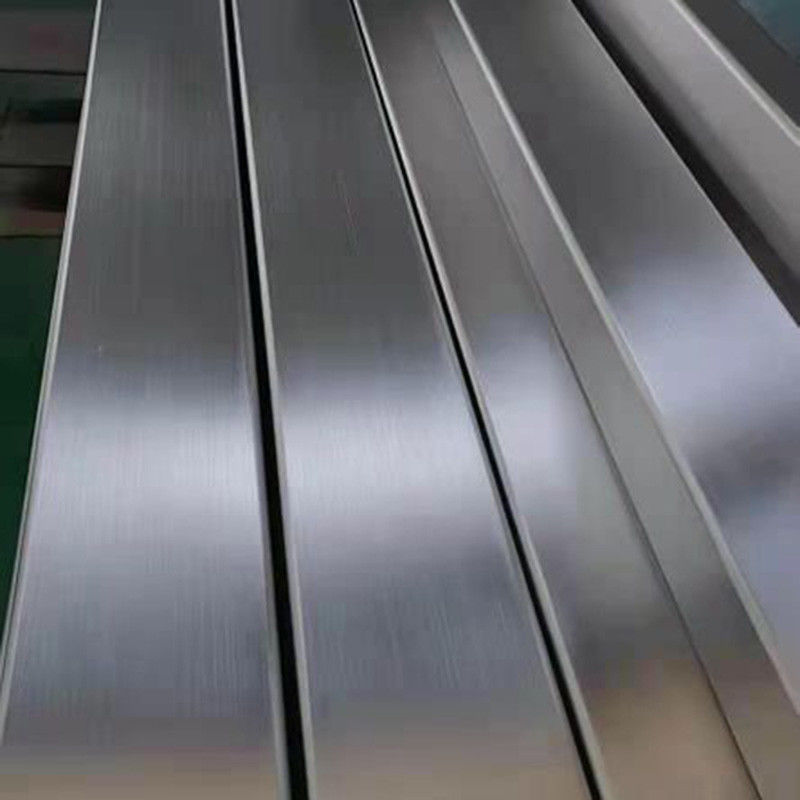

A554 304L Stainless Steel Rectangular Pipe 240 Grit Polished
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 304L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes be covered with waterproof protective packing materials |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 100 Tons per month |
|
Detail Information |
|||
| Name: | 304L SS Rectangular Pipe | Thickness: | 2.0 Mm |
|---|---|---|---|
| Size: | 6-101.6mm | Length: | 6 M |
| Surface: | 240 Grit Polished | Grade: | 304L |
| Tolerance: | ±10% | Application: | Industrial |
| Standard: | ASTM A554 | End Treatment: | Threaded, Beveled, Plain, Screwed, Etc. |
| High Light: | 304L Stainless Steel Rectangular Pipe,Stainless Steel Rectangular Pipe 240 Grit,Rectangular 304L Stainless Steel Pipe |
||
Product Description
ASTM A554 304L Stainless Steel Recatangular Pipe 2.0 mm Thickness 240 Grit Polished
304L stainless steel, also known as ultra low carbon stainless steel, is a universal stainless steel material, widely used in the manufacture of equipment and parts requiring good comprehensive performance (corrosion resistance and formability). 304L is a variant of 304 stainless steel with lower carbon content and is used for welding applications.
Product introduction:
| Commodity |
ASTM A554 304L Stainless Steel Recatangular Pipe 2.0 mm Thickness 240 Grit Polished |
| Grade | 304L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness1 | 1.0 mm |
| Size | 6-101.6mm |
| Length | 1m,2m,3m,4m,5m, 5.8m,6m or customized length |
| Surface | 240 grit polished |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About15-30 days or based on the sales contract |
| MOQ | 1 TON |
| Advanatages |
It is widely used in the manufacture of equipment and parts requiring good comprehensive performance (corrosion resistance and formability) |
Mechanical property:
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | HV/HB Hardness |
| 304 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 304L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 316 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 316L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 430 | ≥205 | ≥450 | ≥22 | ≤200HV |
| SAF2507 | ≥800 | ≥550 | ≥15 | ≤310HB |
| SAF2205 | ≥620 | ≥440 | ≥25 | ≤290HB |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - |
| 202 | ≤0.15 | ≤1.00 | 7.5～10.0 | ≤0.060 | ≤0.03 | 4.0～6.0 | 17.00～19.00 | - |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00～8.00 | 16.00～18.00 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 17.00～19.00 | - |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 18.00～20.00 | - |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00～22.00 | 24.00～26.00 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 |
Size:
Product display :
Advantage of 304:
304L is a variant of 304 stainless steel with lower carbon content and is used for welding applications.
Surface finish :
Packaging:
ASTM A554 304L Stainless Steel Recatangular Pipe 2.0 mm Thickness 240 Grit Polished Packing Details :
1: Pipes are to be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Wooden cases packing:
We will customized the wooden cases according to the pipe length and quantity . It will protect goods well but cost high . One wooden case size usually : 580x580x6100mm (for pipe with small size ) .
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
