317L Cold Drawn SS Round Bar 38mm Bright Polished Surface
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 317L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Each steel bar has the single protective package and several be bundled togehter |
| Delivery Time: | 10-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 tons per month |
|
Detail Information |
|||
| Name: | Cold Down 317L SS Round Bar | Technique: | Cold Drawn |
|---|---|---|---|
| Price Term: | FOB, CFR, CIF,EXW | Packing: | Standard Sea-worthy Packing |
| OD: | 38 Mm | Length: | Standard Length 6 M Or Customized |
| Tolerance: | ±5% | Standard: | ASTM ASME |
| Surface: | Bright Polished | Other Shape: | Square / Heaxgon |
| High Light: | Bright Polished SS Round Bar 38mm,Cold Drawn SS Round Bar 38mm,Bright Polished 317L Round Bar 38mm |
||
Product Description

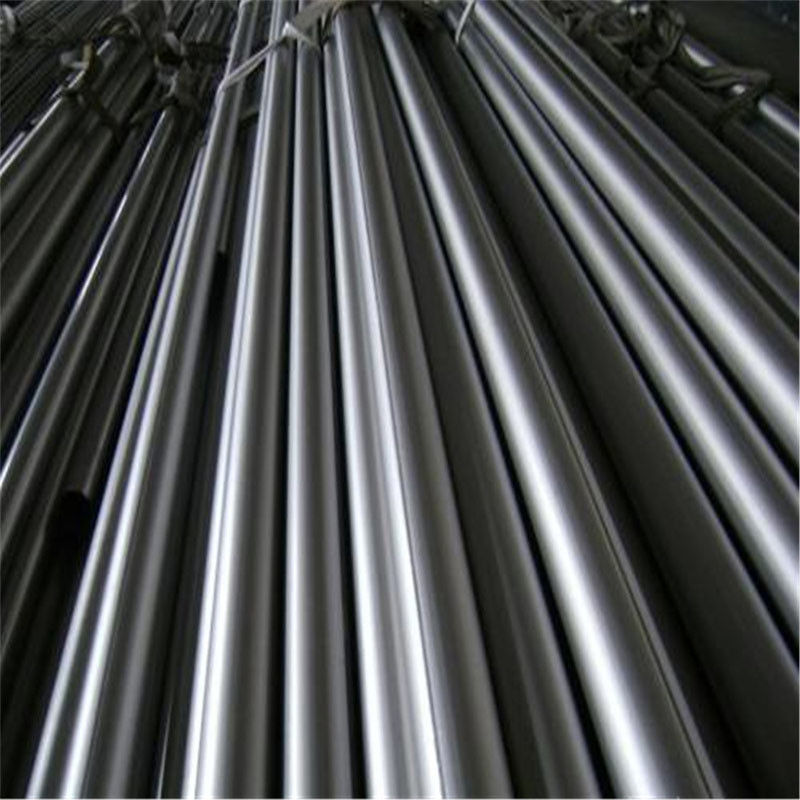

317L Cold Drawn Bright Surface Stainless Steel Round Bar 38mm
317L(00Cr19Ni13Mo3, SUS317L) alloy is an austenitic stainless steel based on molybdenum. Compared with conventional chrome-nickel austenitic stainless steel such as 304 alloy, it has better chemical corrosion resistance. In addition, compared with conventional stainless steel, 317L alloy has higher ductility, stress corrosion resistance, compressive strength and high temperature resistance. It is low carbon grade or L grade, which is resistant to sensitization during welding and heat treatment.
Product Description:
| Commodity | 317L Cold Drawn Bright Surface Stainless Steel Round Bar 38mm |
| Grade | 317L |
| Technique | Hot rolled , cold drawn |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Diameter | 3-400mm |
| Length | 5.8m,6m or customized length |
| Surface | Black , bright, |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About15-30 days or based on the sales contract |
| MOQ | 1 TON |
| Advantages | Construction field, ships building industry, petroleum, chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields. |
Round Bar:
Stainless steel round bar for machining in a wide range of grades, including duplex and super-duplex stainless steel. ... Chuangen Metal stainless bar steel is delivered with peel turned, burnished or rough machined surface, depending on size. It can be supplied in random lengths or cut into fixed lengths.
Chemical Composition:
| Grade | Chemical Composition (WT %) | |||||||
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Mo | |
| 317L | ≤ 0.03 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 18.0- 20.0 | 11.00 -15.00 | 3.00-4.00 |
Physical Property:
| Physical Property | |||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | / | Hardness(HV/HB) | Density |
| ≥480MPa | ≥176MPa | ≥40% | / | ≤200HV | 7.98g/cm3 |
Advantage of 317L:
Compared with 316L, 317L steel has better seawater resistance and SCC resistance. It is used for Chemical equipment requiring high corrosion resistance such as Chemical ship, Chemical Product Reactor and so on.
Surface :
1: bright polished as cold drawn
2: black surface as hot rolled
Surface :
Packing:
317L Cold Drawn Bright Surface Stainless Steel Round Bar 38mm Packing :
1:Each steel bar has the single protective package and several be bundled togehter ;
2:Stainless steel flat bars will be packaged with protective packing materials
and bundled with strong strips ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Product Display:
Advantange of 316L :
316L is very low carbon 316 steel. The performance of 316 steel plus intergranular corrosion resistance.
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
