ASTM TP316L Equal L Shaped Metal Bar Cold Drawn Angle Bar Steel

ASTM TP316L Equal L Shaped Metal Bar Cold Drawn Angle Bar Steel

Product Details:

Place of Origin: China
Brand Name: no brand
Certification: MTC; SGS
Model Number: 316L

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: Each steel bar has the single protective package and several be bundled togehter
Delivery Time: 15-35 working days
Payment Terms: L/C, T/T
Supply Ability: 100 tons per month
Get Best Price Contact Now

Detail Information

Name: 316L Stainless Steel Angle Surface: Annealed And Pickled
Price Term: FOB, CFR, CIF Packing: Standard Sea-worthy Packing
Standard: ASTM Material: 316L
Technique: Cold Drawn Shape: Equal
Sample: Free Keywords: Angble Steel Bar
High Light:

TP316L L shaped metal bar

,

Cold Drawn L shaped metal bar

,

ASTM TP316L angle bar steel

Product Description

ASTM TP316L Bright Cold Drawn Stainless Steel Angle Bar SS Angle



316L stainless steel Angle steel is made of 316L stainless steel. 316L stainless steel, also known as titanium steel, 316L fine steel · Titanium steel, material grade :022Cr17Ni12Mo2. Add Mo(2~3%), excellent pitting resistance, high temperature resistance, excellent creep resistance. Stainless steel Angle is a long strip of steel that is perpendicular to each other. There are equilateral stainless steel Angle and unequal stainless steel Angle



Product information:



Commodity ASTM TP316L Bright Cold Drawn Stainless Steel Angle Bar SS Angle
Grade 316L
Variety Equal
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 3-12mm
Side 1& Side 2 20-150mm
Length 5.8m,6m or customized length
Surface Hot rolled
Standard JIS,AISI,ASTM,GB,DIN
Delivery time About15-30 days or based on the sales contract
MOQ 1 TON
Advantages

Pulp and paper equipment heat exchangers, dyeing equipment, film development equipment, pipes, materials for the exterior of buildings in coastal areas, as well as chains and cases for high-end watches.



Product Display :



ASTM TP316L Equal L Shaped Metal Bar Cold Drawn Angle Bar Steel 0



Chemical Position:



Grade C Si Mn P S Ni Cr Mo N
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 12.0015.00 16.0018.00 2.00-3.00





Physical Property:



Grade YS(Mpa) TS(Mpa) EL(%) HV/HB Hardness
316L ≥175 ≥480 ≥40 ≤200HV


Surface :

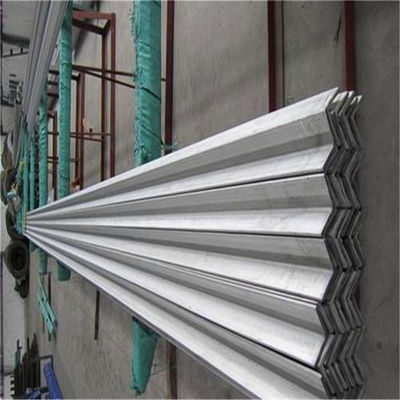

ASTM TP316L Equal L Shaped Metal Bar Cold Drawn Angle Bar Steel 1



Packing :



ASTM TP316L Equal L Shaped Metal Bar Cold Drawn Angle Bar Steel 2



ASTM TP316L Bright Cold Drawn Stainless Steel Angle Bar SS Angle Packaging Details :



1:Each steel bar has the single protective package and several be bundled togehter ;

2:Stainless steel flat bars will be packaged with protective packing materials

and bundled with strong strips ;

3: Well loaded and be transported to the loading port .



The innner size container as below :



1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM



Advantage of 316L :

  • Good corrosion resistance
  • Easily machined
  • Non-magnetic
  • Good strength-to-weight ratio
  • Damage resistant
  • Excellent long term value

Stainless Steel Angle Applications:

Stainless angle and stainless steel angle products are used for numerous applications throughout a multitude of industries, some of which include:

  • Aerospace
  • Architectural
  • Construction
  • Chemical
  • Food Processing
  • Oil & Gas
  • And more



WHY CHOOSE US:



Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: FOB, CIF, CFR,

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
