2mm 3mm 4mm Stainless Steel Strip Roll SUS 304 316L SS 430
Product Details:
Place of Origin: | China |
Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
Certification: | MTC; SGS |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Ton |
---|---|
Price: | Negotiable |
Packaging Details: | Coils covered with waterproof protective packing materails |
Delivery Time: | 3-15 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 250 tons per month |
Detail Information |
|||
Name: | Stainless Steel Strip Roll 2mm 3mm | Price Term: | FOB, CFR, CIF |
---|---|---|---|
Packing: | Standard Sea-worthy Packing | Application: | Medical Scalpel |
Standard: | ASTM, AISI, GB, DIN, JIS | Material: | 304 316L 430 |
Surface: | BA Finish | Type: | Sheet Plate Coil Strip |
Width: | 70 Mm | Thickness: | 2 /3/4 Mm |
High Light: | 2mm stainless steel strip roll,sus 430 stainless steel strip roll,3mm 304 ss strips |
Product Description
Stainless Steel Strip Roll 2mm 3mm 4mm SUS 304 316L SS 430 Strip
Strip steels are manufactured by hot rolling to thicknesses not less than 2 mm, and then finally cold rolled to the required final thickness. Since cold forming (e.g. by deep drawing, stretch forming or bending) is a widely used application for low-carbon strip steels, a final recrystallization anneal is applied.
Product information:
Commodity |
Stainless Steel Strip Roll 2mm 3mm 4mm SUS 304 316L SS 430 Strip |
Grade | 304 316L 430 |
Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
Certification | SGS,BV,IQI,TUV,ISO,etc |
Thickness | 2 3 4 5mm |
Width |
70 mm |
Length | as per customers'requirements |
Surface | BA Finish |
Standard | JIS,AISI,ASTM,GB,DIN |
Delivery time | About 15days or based on the sales contract |
MOQ | 1 Ton |
Advantages |
Showing the splendor of your quality, wearresistant as well , strong corrosion resistance and decorative effect, durable and beautiful in good taste. |
Chemical Position:
Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.03 | 3.5~5.5 | 16.00~18.00 | - |
202 | ≤0.15 | ≤1.00 | 7.5~10.0 | ≤0.060 | ≤0.03 | 4.0~6.0 | 17.00~19.00 | - |
301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00~8.00 | 16.00~18.00 | - |
302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~10.00 | 17.00~19.00 | - |
304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~10.00 | 18.00~20.00 | - |
304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00~13.00 | 18.00~20.00 | - |
310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00~22.00 | 24.00~26.00 | - |
316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00~13.00 | 17.00~19.00 | - |
410 | ≤0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 11.500~13.50 | - | |
430 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 | - |
Physical Property:
Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
304L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
304 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
304J1 | ≥450 | ≥155 | ≥40 | ≤187 | ≤90 | ≤200 |
304N1 | ≥550 | ≥275 | ≥35 | ≤217 | ≤95 | ≤200 |
304N2 | ≥690 | ≥345 | ≥35 | ≤248 | ≤100 | ≤260 |
316 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
316L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
321 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
409L | ≥360 | ≥175 | ≥25 | ≤162 | ≤80 | ≤175 |
410L | ≥360 | ≥195 | ≥22 | ≤183 | ≤88 | ≤200 |
430 | ≥450 | ≥205 | ≥22 | ≤183 | ≤88 | ≤200 |
430J1L | ≥390 | ≥205 | ≥22 | ≤192 | ≤90 | ≤200 |
436L | ≥410 | ≥245 | ≥20 | ≤217 | ≤96 | ≤230 |
Brand Cross Reference Table:
GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
12Cr17Ni7 | SUS301 | 301 | S30100 | STS301 | 1.4319 | 301 |
06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 304L |
06Cr19Ni10N | SUS304N1 | 304N | S30451 | STS304N1 | 1.4315 | 304N1 |
06Cr19Ni9NbN | SUS304N2 | XM21 | S30452 | STS304N2 | - | 304N2 |
022Cr19Ni10N | SUS304LN | 304LN | S30453 | STS304LN | - | 304LN |
10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | 305 |
06Cr23Ni13 | SUS309S | 309S | S30908 | STS309S | 1.4833 | 309S |
Surface Finish:
Surface Finish | Definition | Application |
2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Packing:
Stainless Steel Strip Roll 2mm 3mm 4mm SUS 304 316L SS 430 Strip packaging details :
1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel strip ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Stainless Steel Coil VS Stainless Steel Strip:
Strip steel is used for a variety of industrial applications.Typically strip steel is used in body panels and automotive components, tubes, appliances such as refrigerators,washers and dryers, building materials as well as electrical components.
There are no difference between coils and strips but the width.
Application:
You'll find strip steel used in appliances like refrigerators, washers, and dryers. The unique properties of strip steel have also made it a popular material for building and construction materials

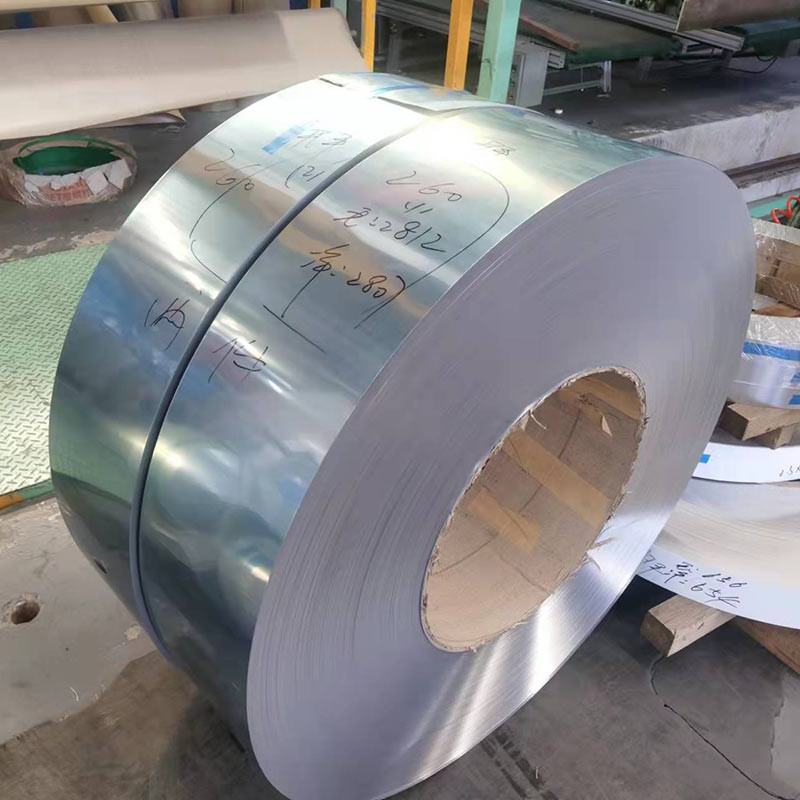

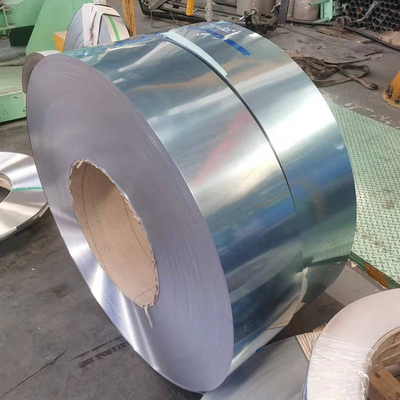

Product Display:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
