Product Details:

Place of Origin: China
Brand Name: SHOUGANG; ANSTEEL; MASTEEL; BXSTEEL
Certification: MTC; SGS;
Model Number: SGCC/ CGCC/ TDC51DZM/ TDC52DT350GD/ DX51D+Z

Payment & Shipping Terms:

Minimum Order Quantity: 25 Ton
Price: Negotiable
Packaging Details: Coils covered with waterproof protective packing materails
Delivery Time: 10-25 working days
Payment Terms: T/T
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Name: PPGI COIL Zinc Coating: Z30-275g/m2
Surface Treatment: Galvanized Material: CGCC/SGCH/G350/G450/G550/DX51D/DX52D/DX53D
Edge: Mill Edge Slit Edge Application: Roofing, Industry, Building Etc.
Surface: Skinpass Packing: Standard Seaworthy Package
Alloy Or Not: Alloy Standard: ASTM/EN/GBIT/3198-2010
High Light:

Prepainted Zinc Coated Carbon Steel Sheet

,

Ss400 Carbon Steel Sheet

,

Z275 304 Carbon Steel Sheet

Product Description

Hot/Cold Rolled Prepainted/Color Zinc Coated/Galvanized/Gallvalume/Corrugated/Aluminum/Ss400/A36/Z275//PPGI/PPGL/Gi/Gl/

Carbon Steel Coil



PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc

coated steel substrate. The term is an extension of GI which is a traditional abbreviation for Galvanized Iron.



Product Introduction:



Commodity Hot/Cold Rolled Prepainted/Color Zinc Coated/Galvanized/Gallvalume/Corrugated/Aluminum/Ss400/A36/Z275/DX51D+Z/PPGI/PPGL/Gi/Gl/Carbon Steel Coil
Grade SGCC/ CGCC/ TDC51DZM/ TDC52D/T350GD/ DX51D+Z
Brand SHOUGANG; ANSTEEL; MASTEEL; BXSTEEL
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.56 MM
Width  1000MM
Length
Surface PPGI
Standard JIS,AISI,ASTM,GB,DIN, BS EN, AS
Delivery time About 25  or based on the sales contract
MOQ 25 Ton






Advantages:



  • PPGI Roofing Sheet production process is less harmful to the environment, and can be recycled, greatly reducing the pollution to the environment, and light weight, can save load-bearing Structure materials, reduce the cost.

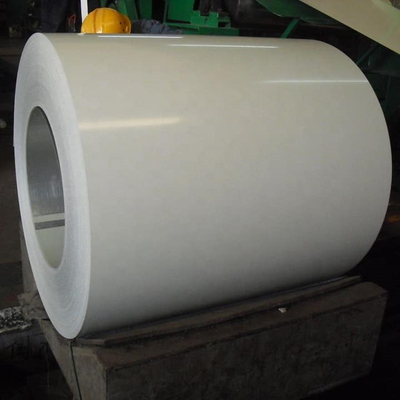

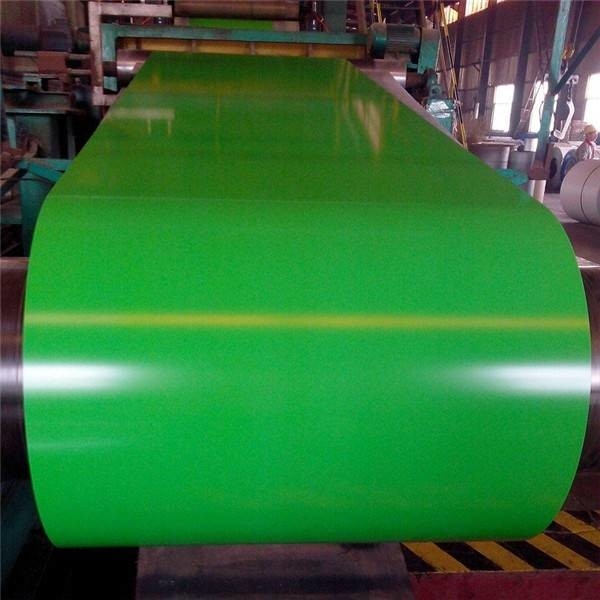

Product Show:



Pre painted galvanized steel coil  SGCC/ CGCC/ DX51D+Z A36 Z275 Z80 Z40 0

Pre painted galvanized steel coil  SGCC/ CGCC/ DX51D+Z A36 Z275 Z80 Z40 1



Pre-paint :



Pre-paint steel is a bare metal substrate or corrosion resistant substrate that has had paint applied to both sides through a continuous coil

coating process, which produces a uniform paint finish. The metal is unwound, cleaned and chemically treated during the process.



Application:



Pre-painted Galvanized Iron (PPGI)

The hot dip metallic coating process is typically used to coat steel sheet and coil which all may be factory pre-painted like PPGI. PPGI is also used to refer to metallic coated steels that have been pre-painted, by TSC offers PPGI that is zinc coated steel



Gauge Size Table:



Gauge SS inch SS mm Mild Steel Galvanized Steel

3 0.25 6.35 0.2391
4 0.2344 5.95376 0.2242
5 0.2187 5.55498 0.2092
6 0.2031 5.15874 0.1943
7 0.1875 4.7625 0.1793
8 0.165 4.191 0.1644 0.168
9 0.1562 3.96748 0.1495 0.1532
10 0.1406 3.57124 0.1345 0.1382
11 0.125 3.175 0.1196 0.1233
12 0.1094 2.77876 0.1046 0.1084
13 0.0937 2.37998 0.0897 0.0934
14 0.0781 1.98374 0.0747 0.0785
15 0.0703 1.78562 0.0673 0.071
16 0.0625 1.5875 0.0598 0.0635
17 0.0562 1.42748 0.0538 0.0575
18 0.05 1.27 0.0478 0.0516
19 0.0437 1.10998 0.0418 0.0456
20 0.0375 0.9525 0.0359 0.0396
21 0.0344 0.87376 0.0329 0.0366
22 0.0312 0.79248 0.0299 0.0336

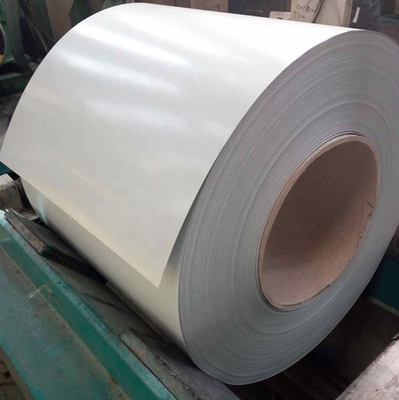

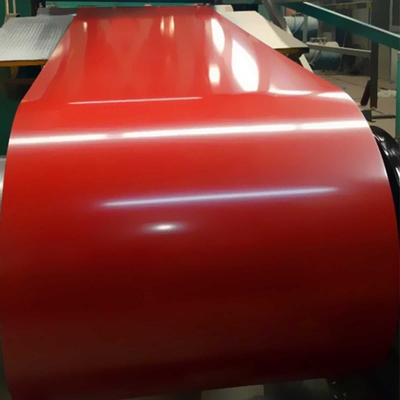

Surface finish :



Pre painted galvanized steel coil  SGCC/ CGCC/ DX51D+Z A36 Z275 Z80 Z40 2Pre painted galvanized steel coil  SGCC/ CGCC/ DX51D+Z A36 Z275 Z80 Z40 3


What is the difference between galvanized and galvalume?



Galvanized steel is made completely of zinc, while galvalume includes aluminum, zinc, and a small amount of silicon. This provides superior durability and resistance to corrosion in comparison to galvanized coating



Pre painted galvanized steel coil  SGCC/ CGCC/ DX51D+Z A36 Z275 Z80 Z40 4

Packaging :



Pre painted galvanized steel coil  SGCC/ CGCC/ DX51D+Z A36 Z275 Z80 Z40 5



Prepainted Galvanized Steel Coil/PPGI Zinc Coating Metal Sheet packaging details :

1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel strip ;
3: Well loaded and be transported to the loading port .

The innner size container as below :

1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

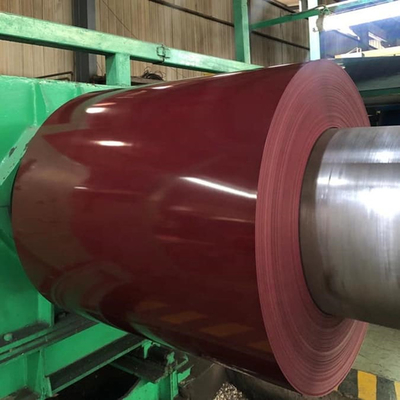

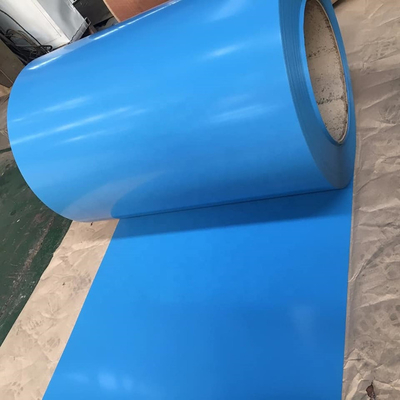

Product Display:





Pre painted galvanized steel coil  SGCC/ CGCC/ DX51D+Z A36 Z275 Z80 Z40 6Pre painted galvanized steel coil  SGCC/ CGCC/ DX51D+Z A36 Z275 Z80 Z40 7
