304 Stainless Steel Channel Bar For Building Materials With Corrosion Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification: | MTC; SGS |
| Model Number: | 304 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Each steel bar has the single protective package and several be bundled togehter |
| Delivery Time: | 15-21 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 150 tons per month |
|
Detail Information |
|||
| Name: | 304 C Stainless Steel Channel | Place Of Origin: | Henan, China |
|---|---|---|---|
| Price Term: | FOB, CFR, CIF | Packing: | Standard Sea-worthy Packing |
| Shape: | C Channel | Application: | Steel Structure Building |
| Length: | 6m Or Customer's Requirements | Surface: | Anneald And Pickled |
| Color: | True Color | ||
| High Light: | Building Materials Stainless Steel Channel Bar,Corrosion Resistance Stainless Steel Channel Bar,Corrosion Resistance stainless channel bar |
||
Product Description
304 C Section Stainless Steel Channel For Building Materials
304 stainless steel channel is a stainless steel channel made of 304 stainless steel. Stainless steel channel
is a long strip of steel with a groove-shaped cross-section. The same as I-steel, stainless steel channel is also
divided into ordinary channel steel and light channel steel two.
Product information:
|
Length
|
6M or any length
|
|
Width
|
50mm*4.0mm thick-160mm*6.5mm thick
|
|
Thickness
|
2.0mm-20mm
|
|
Standard
|
AISI,ASTM,DIN,JIS,GB ,JIS,SUS,EN,etc
|
|
Technique
|
Hot rolling/welding/bending
|
|
Surface Treatment
|
No.1/No.3/No.4/HL/1D/8K
|
|
Thickness Tolerance
|
±0.05mm
|
|
Material
|
201/304/321/316/316L/310S in stock, other models can be customized
|
|
Application
|
It is widely used in beam and column components of industrial and civil construction steel structure. Steel structure load-bearing
support for industrial structures. Ship and machinery manufacturing frame structure. Steel piles and supporting structures of underground engineering, etc. |
|
MOQ
|
1 Piece
|
|
Delivery time
|
1.200 ton: Within 5 days after deposit
2.Customize Size:Within 10 days after deposit 3.OEM Product: Within 20 days after deposit |
|
Capacity
|
20000 tons/month
|
Chemical Position:
| Grade | C | Si | Mn | P | S | Cr | Ni | Cu | N |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.0-20.0 | 8.00-10.00 | 0.02 | 0.039 |
Physical Property:
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | HV/ Hardness |
| 304 | ≥205 | ≥520 | ≥40 | ≤200HV |
Packing:
304 C Section Stainless Steel Channel For Building Materials packaging details :
1.with plastic cap to protect both ends
2.weaving bag wrapped outside the pipe
3.then pack into wooden case
The innner size container as below :
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

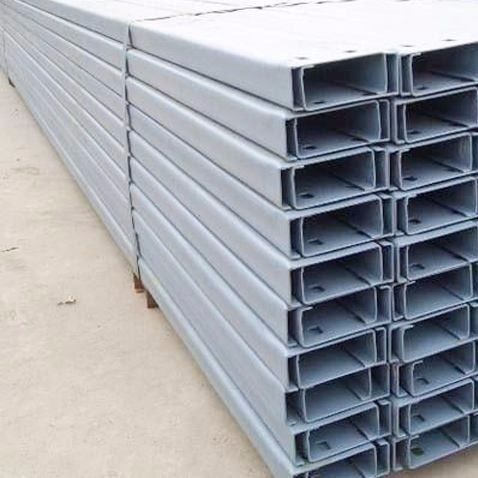

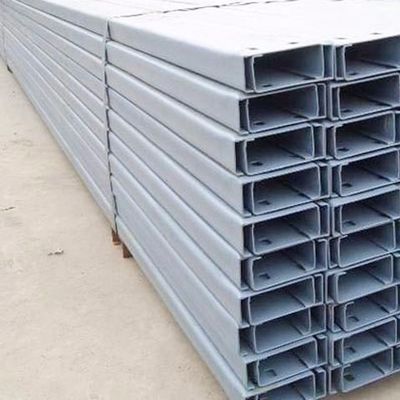

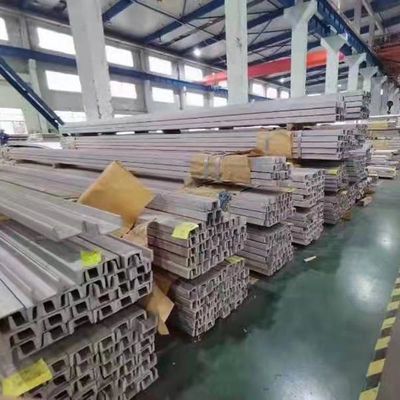

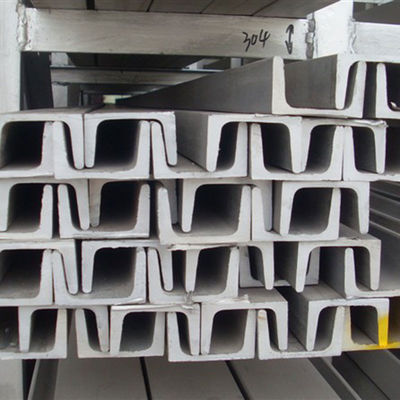

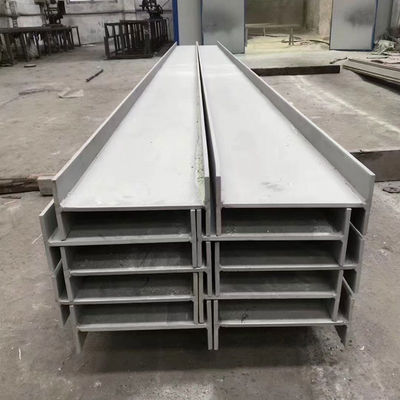

Product Display:
