201 202 Stainless Steel Channel Bar For Shipbuilding And Chemical Industries
Product Details:
Place of Origin: | China |
Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
Certification: | MTC; SGS |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Ton |
---|---|
Price: | Negotiable |
Packaging Details: | Each steel bar has the single protective package and several be bundled togehter |
Delivery Time: | 3-15 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 250 tons per month |
Detail Information |
|||
Name: | Hot Rolled Steel Bar | Technique: | Annealed And Pickled |
---|---|---|---|
Price Term: | FOB, CFR, CIF | Side Size: | Variable |
Perforated Or Not: | Not Perforated | Shape: | H Shaped |
Material: | Hot Rolled Or Cold Rolled, Or Welded | Length: | 6m Or Customer's Requirements |
Surface: | Pickled Polish Bright | Standard: | 201 202 |
High Light: | Shipbuilding Stainless Steel Channel Bar,Chemical Industries Stainless Steel Channel Bar,202 stainless channel bar |
Product Description
Hot Rolled Steel Bar Stainless Steel H Channel 3 Inch Channel Steel 201 202
Steel channel is often specially formed to construct vehicle frames. It can be used for both the main frame rails and for cross members, braces or structural components like radiator supports. Steel channel prevents a vehicle from flexing too much, but still allows movement to compensate for engine torque.
Product information:
Commodity | Hot Rolled Steel Bar Stainless Steel H Channel 3 Inch Channel Steel 201 202 |
Grade | 201 202 |
Brand | None |
Certification | SGS,BV,IQI,TUV,ISO,etc |
Thickness | 3-10mm |
Size | UPN30-UPN400, UPE80-UPE400,5#--40# |
Length | 5.8m,6m or customized length |
Surface | Hot rolled,cold drawn,annealed, pickling |
Standard | JIS,AISI,ASTM,GB,DIN |
Delivery time | About15-30 days or based on the sales contract |
MOQ | 1 TON |
Advanatages |
Construction field, shipbuilding industry,petroleum, chemical industries, war and electricity industries,food processing and medical industry,boiler heat exchanger,machinery and hardware fields |
Chemical Position:
Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.03 | 3.5~5.5 | 16.00~18.00 | - |
202 | ≤0.15 | ≤1.00 | 7.5~10.0 | ≤0.060 | ≤0.03 | 4.0~6.0 | 17.00~19.00 | - |
301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00~8.00 | 16.00~18.00 | - |
302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~10.00 | 17.00~19.00 | - |
304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~10.00 | 18.00~20.00 | - |
304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00~13.00 | 18.00~20.00 | - |
310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00~22.00 | 24.00~26.00 | - |
316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00~13.00 | 17.00~19.00 | - |
410 | ≤0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 11.500~13.50 | - | |
430 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 | - |
Physical Property:
Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
304L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
304 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
304J1 | ≥450 | ≥155 | ≥40 | ≤187 | ≤90 | ≤200 |
304N1 | ≥550 | ≥275 | ≥35 | ≤217 | ≤95 | ≤200 |
304N2 | ≥690 | ≥345 | ≥35 | ≤248 | ≤100 | ≤260 |
316 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
316L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
321 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
409L | ≥360 | ≥175 | ≥25 | ≤162 | ≤80 | ≤175 |
410L | ≥360 | ≥195 | ≥22 | ≤183 | ≤88 | ≤200 |
430 | ≥450 | ≥205 | ≥22 | ≤183 | ≤88 | ≤200 |
430J1L | ≥390 | ≥205 | ≥22 | ≤192 | ≤90 | ≤200 |
436L | ≥410 | ≥245 | ≥20 | ≤217 | ≤96 | ≤230 |
410 | ≥440 | ≥205 | ≥20 | ≤201 | ≤93 | ≤210 |
201 | ≥520 | ≥275 | ≥55 | ≤241 | ≤100 | ≤253 |
202 | ≥520 | ≥275 | ≥55 | ≤207 | ≤95 | ≤218 |
Brand Cross Reference Table:
GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
12Cr17Ni7 | SUS301 | 301 | S30100 | STS301 | 1.4319 | 301 |
06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 304L |
06Cr19Ni10N | SUS304N1 | 304N | S30451 | STS304N1 | 1.4315 | 304N1 |
06Cr19Ni9NbN | SUS304N2 | XM21 | S30452 | STS304N2 | - | 304N2 |
022Cr19Ni10N | SUS304LN | 304LN | S30453 | STS304LN | - | 304LN |
10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | 305 |
06Cr23Ni13 | SUS309S | 309S | S30908 | STS309S | 1.4833 | 309S |
06Cr25Ni20 | SUS310S | 310S | S31008 | STS310S | 1.4845 | 310S |
06Cr17Ni12Mo2 | SUS316 | 316 | S31600 | STS316 | 1.4401 | 316 |
06Cr17Ni12Mo2Ti | SUS316Ti | 316Ti | S31635 | - | 1.4571 | 316Ti |
022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
06Cr17Ni12Mo2N | SUS316N | 316N | S31651 | STS316N | - | 316N |
Surface Finish:
Surface Finish | Definition | Application |
2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Packing:
Hot Rolled Steel Bar Stainless Steel H Channel 3 Inch Channel Steel 201 202 packaging details :
1.with plastic cap to protect both ends
2.weaving bag wrapped outside the pipe
3.then pack into wooden case
The innner size container as below :
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

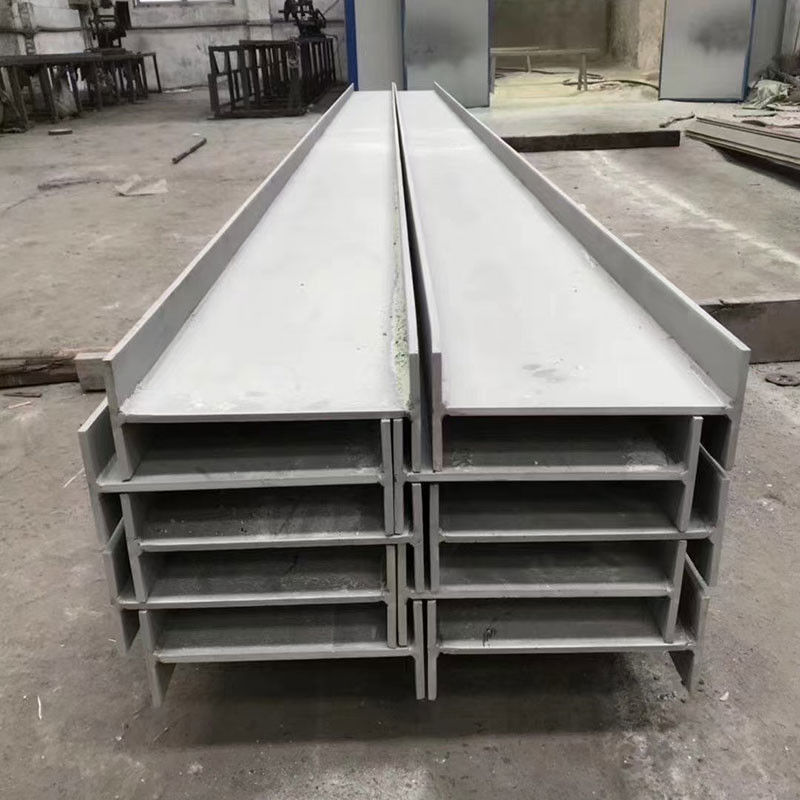

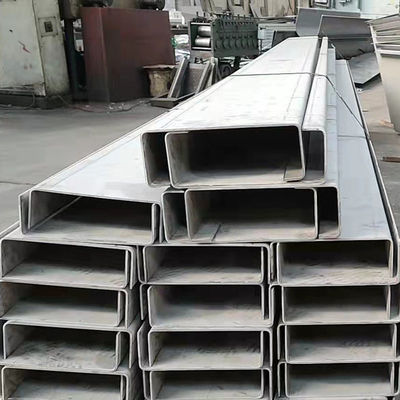

Product Display:
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7.Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties' inspections are all available such SGS, BV ect.
Q9:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q11:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q12:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Q13:How to pack the products?
A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
Q14:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry in the coming working day.
