3mm Thickness SUS 304 304L ASTM A480 Stainless Steel Sheet With Long-Lasting Durability
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification: | MTC; SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20' or 40' GP |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 250 Tons per month |
|
Detail Information |
|||
| Name: | 304L ASTM A480 Stainless Steel Hot | Thickness: | 3mm-100mm For Hot Rolled |
|---|---|---|---|
| Type: | Sheet Plate | Tolerance: | ±5% |
| Surface: | NO.1/NO.3/NO.4/8K/HL/2D/1D | Standard: | AISI ASTM JIS DIN GB |
| Application: | Construction, Industry, Machine Building | Grade: | 304 304L |
| Length: | 2000 2438 3000 4000 6000 Mm | Width: | 1000 1218 1500 2000 Mm |
| High Light: | 304L Stainless Steel Sheet,3mm Stainless Steel Sheet,Long-Lasting Stainless Steel Sheet |
||
Product Description
3mm Thickness SUS 304 304L ASTM A480 Stainless Steel Sheet with Long-Lasting Durability
304 stainless steel is a commonly used stainless steel material, known for its excellent properties. Firstly, it exhibits good corrosion resistance, making it resistant to the corrosion of most chemicals and suitable for use in various environments.
Product introduction:
| Commodity | 3mm Thickness SUS 304 304L ASTM A480 Stainless Steel Sheet with Long-Lasting Durability |
| Grade | 304 304L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness |
3 mm |
| Width | 1000 1218 1500 2000 mm |
| Length | 2000 2438 3000 4000 6000 mm |
| Surface | NO.1 |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
304 stainless steel is the most common form of stainless steel used around the world due to excellent corrosion resistance and value |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
| 022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 304L |
Gauge and Inch:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
| 23 | 0.0281 | 0.71374 | 0.0269 | 0.0306 |
| 24 | 0.025 | 0.635 | 0.0239 | 0.0276 |
| 25 | 0.0219 | 0.55626 | 0.0209 | 0.0247 |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 18.00～20.00 | - |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 304 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
304 VS 304L:
Grade 304L has a slight, but noticeable, reduction in key mechanical performance characteristics compared to the “standard” grade 304 stainless steel alloy.
For example, the ultimate tensile strength (UTS) of 304L is roughly 85 ksi (~586 MPa), less than the UTS of standard grade 304 stainless, which is 90 ksi (~620 MPa). The difference in yield strength is slightly greater, with 304 SS having a 0.2% yield strength of 42 ksi (~289 MPa) and 304L having a 0.2% yield strength of 35 ksi (~241 MPa).
This means that if you had two steel wire baskets and both baskets had the exact same design, wire thickness, and construction, the basket made from 304L would be structurally weaker than the standard 304 basket.
Surface Finish:
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Packing:

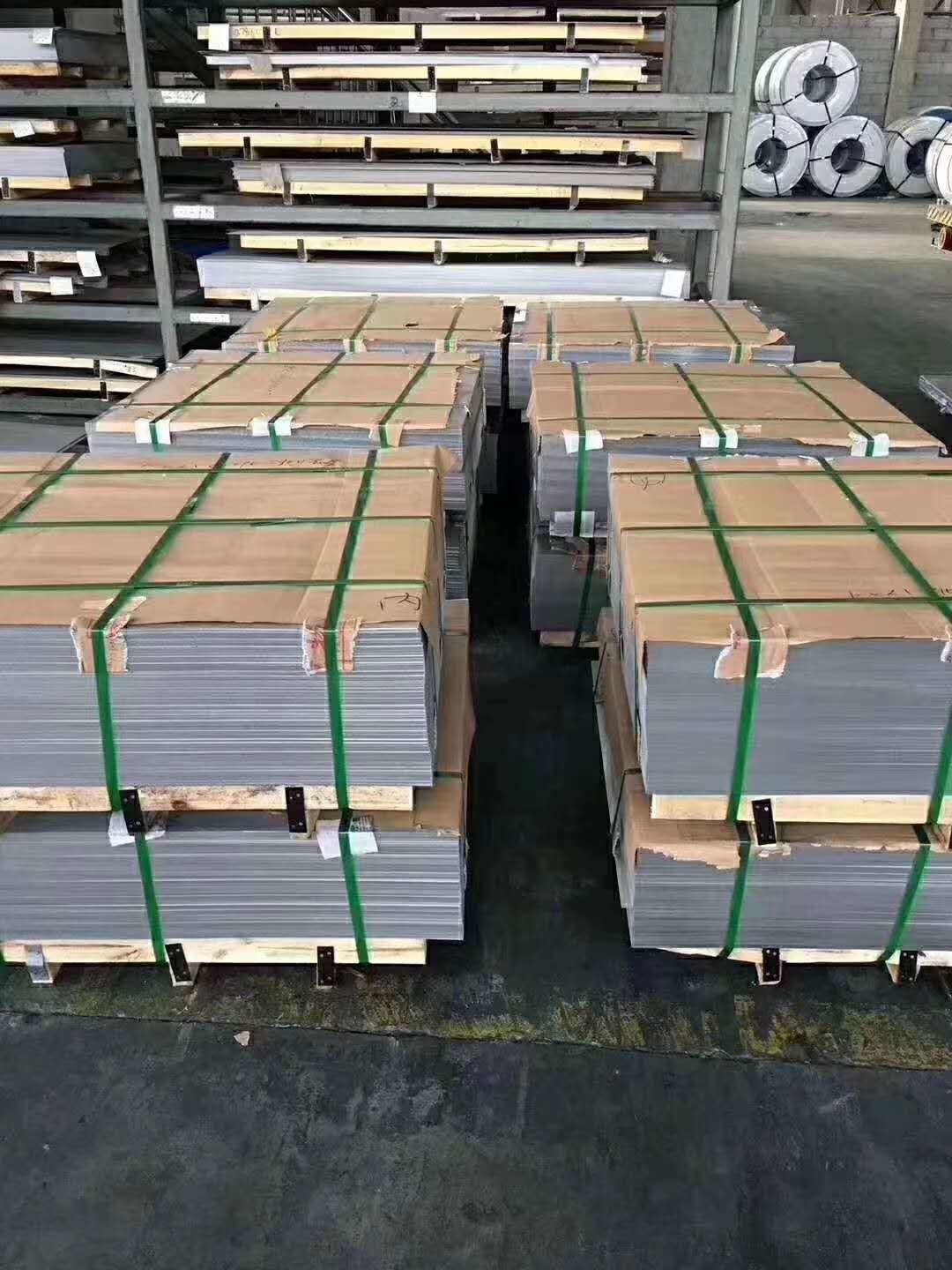

304 NO.1 Finish Stainless Steel Plate size 4x1500x6000 HR Sheet Packing 2 types:
l Standard packing
l Fine packing
Factory and Machine Equipment:
We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine
304 NO.1 Finish Stainless Steel Plate size 4x1500x6000 HR Sheet Diaplay:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
