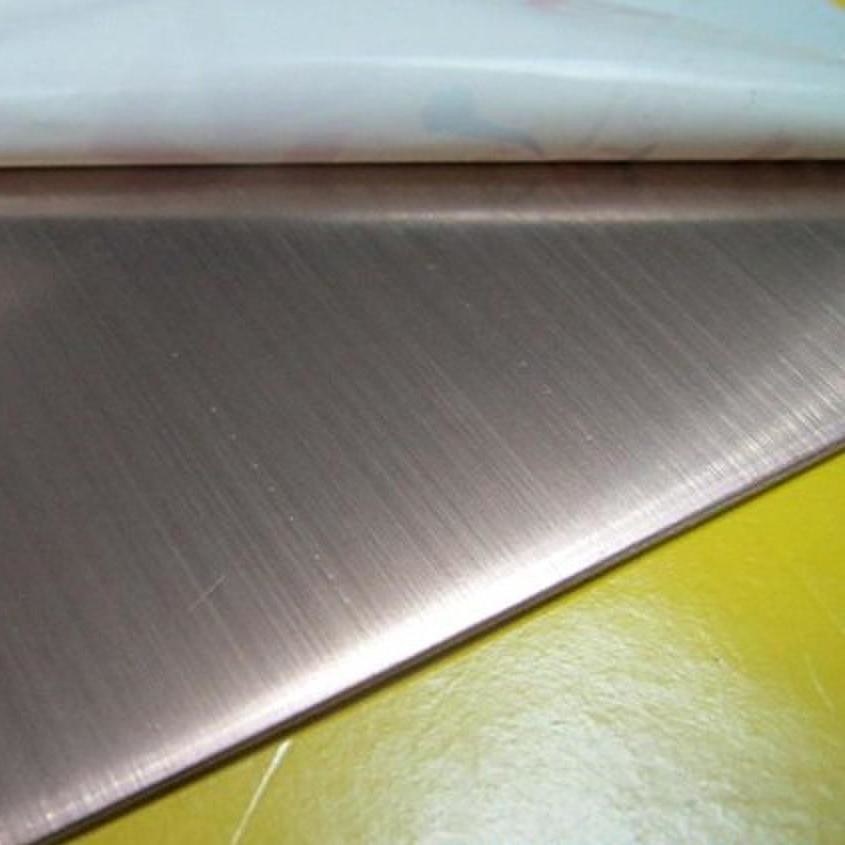

Hairline HL Cold Rolled Stainless Steel Sheet Finish 304 NO.4 Surface Finished 2.8mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification: | MTC; SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20' or 40' GP |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 tons per month |
|
Detail Information |
|||
| Name: | NO.4 Surface HL Finish Sheet | Surface: | Hairline |
|---|---|---|---|
| Technique: | Cold Rolled | Price Term: | FOB, CFR, CIF |
| Packing: | Standard Sea-worthy Packing | Tolerance: | ±1% |
| Thickness: | 2.8 Mm | Grade: | 304 |
| Width: | 1 M | Length: | 2 M |
| High Light: | HL Cold Rolled Stainless Steel Sheet,Hairline Stainless Steel Sheet 304,2.8mm 304 Stainless Steel Plate |
||
Product Description
NO.4 Surface HL Finish 304 Stainless Steel Plate CR Sheet Hairline
No. 4 Finish is characterized by short, parallel polishing lines extending uniformly along the length of the coil. It is obtained by mechanically polishing a No. 3 finish with gradually finer abrasives. Depending on the requirements of the application, the final finish can be anywhere between 120 and 320 grit.
Product introduction:
| Commodity | NO.4 Surface HL Finish 304 Stainless Steel Plate CR Sheet Hairline |
| Grade | 304 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness |
0-3 mm |
| Width | 1000 1500 2000 mm or as customer's requirments |
| Length | 2000 3000 6000 mm or as customer's requirments |
| Surface | Hairline Finish |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
Corrosion Resistance – Chromium is the alloying element that imparts to Stainless Steel their corrosion resistant qualities. Fire and Heat Resistance – Special high chromium and nickel-alloyed grades resist scaling and retain high strength at high temperatures. |
1. No 4 finish stainless steel is the workhorse of the light fabrication industry. The easiest of the finishes to maintain, No 4 finish is used for work surfaces, handrails and where appearance is important.
2. A 'No 4' surface is produced by cutting the surface with abrasive belts to remove a very small amount of metal without affecting its thickness.
For architects and designers, No 4 finish gives low gloss and best apparent flatness of panels. For fabricators, the No 4 finish is directional, allowing easy matching of surfaces and refinishing of welds. For end users, the surface can be repaired to remove any service damage.
3. No 4 finish is duller than the other common finishes, 2B and BA and is generally used where lower reflectivity or gloss is required and where welds and other fabrication marks are to be refinished to match the original surface. This is not possible with 2B and difficult with BA.
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 304L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304J1 | ≥450 | ≥155 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304N1 | ≥550 | ≥275 | ≥35 | ≤217 | ≤95 | ≤200 |
| 304N2 | ≥690 | ≥345 | ≥35 | ≤248 | ≤100 | ≤260 |
| 316 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
| 12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
| 12Cr17Ni7 | SUS301 | 301 | S30100 | STS301 | 1.4319 | 301 |
| 06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
| 022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 304L |
| 06Cr19Ni10N | SUS304N1 | 304N | S30451 | STS304N1 | 1.4315 | 304N1 |
| 06Cr19Ni9NbN | SUS304N2 | XM21 | S30452 | STS304N2 | - | 304N2 |
| 022Cr19Ni10N | SUS304LN | 304LN | S30453 | STS304LN | - | 304LN |
| 10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | 305 |
| 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
| 06Cr17Ni12Mo2N | SUS316N | 316N | S31651 | STS316N | - | 316N |
| 022Cr17Ni13Mo2N | SUS316LN | 316LN | S31653 | STS316LN | 1.4429 | 316LN |
| 06Cr18Ni12Mo2Cu2 | SUS316J1 | - | - | STS316J1 | - | 316J1 |
| 022Cr18Ni14Mo2Cu2 | SUS316J1L | - | - | STS316J1L | - | - |
| 06Cr19Ni13Mo3 | SUS317 | 317 | S31700 | STS317 | - | 317 |
| 022Cr19Ni13Mo3 | SUS317L | 317L | S31703 | STS317L | 1.4438 | 317L |
| 06Cr18Ni11Tji | SUS321 | 321 | S32100 | STS321 | 1.4541 | 321 |
| 06Cr18Ni11Nb | SUS347 | 347 | S34700 | STS347 | 1.455 | 347 |
Surface Finish:
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Thickness Gauge:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
| 23 | 0.0281 | 0.71374 | 0.0269 | 0.0306 |
| 24 | 0.025 | 0.635 | 0.0239 | 0.0276 |
| 25 | 0.0219 | 0.55626 | 0.0209 | 0.0247 |
| 26 | 0.0187 | 0.47498 | 0.0179 | 0.0217 |
| 27 | 0.0172 | 0.43688 | 0.0164 | 0.0202 |
| 28 | 0.0156 | 0.39624 | 0.0149 | 0.0187 |
| 29 | 0.0141 | 0.35814 | 0.0135 | 0.0172 |
| 30 | 0.0125 | 0.3175 | 0.012 | 0.0157 |
| 31 | 0.0109 | 0.27686 | 0.0105 | 0.0142 |
| 32 | 0.0102 | 0.25908 | 0.0097 | 0.0134 |
| 33 | 0.0094 | 0.23876 | 0.009 | |
| 34 | 0.0086 | 0.21844 | 0.0082 | |
| 35 | 0.0078 | 0.19812 | 0.0075 | |
| 36 | 0.007 | 0.1778 | 0.0067 |
Packing:
NO.4 Surface HL Finish 304 Stainless Steel Plate CR Sheet Hairline 2 types:
l Standard packing
l Fine packing
Factory and Machine Equipment:
We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine
Product Display:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
