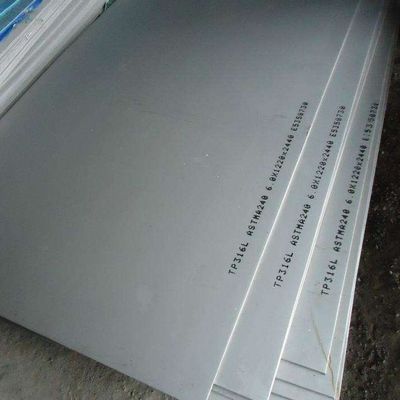

A240 TP316L Hot Rolled Stainless Steel Sheet 6x1220x2440mm

A240 TP316L Hot Rolled Stainless Steel Sheet 6x1220x2440mm

Product Details:

Place of Origin: China
Brand Name: TISCO,BAOSTEEL,POSCO,JISCO,LISCO
Certification: MTC; SGS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20' or 40' GP
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T
Supply Ability: 250 Tons per month
Get Best Price Contact Now

Detail Information

Name: Stainless Steel Metal Sheet Thickness: 6 Mm
Type: HRC Plate Tolerance: ±5%
Surface: NO.1/NO.3/NO.4/8K/HL/2D/1D Color: Custom-made
Application: Welding And Boiler Making Grade: 316L
Length: 2440 Mm Width: 1220 Mm
High Light:

TP316L Hot Rolled Stainless Steel Sheet

,

Stainless Steel Sheet 1220x2440mm

,

A240 TP316L Stainless Steel Plate

Product Description

Steel Sheet Roll TP316L ASTM A240 6x1220x2440mm Hot Rolled Sheet Steel



It's important to note that the main difference between hot rolled and cold rolled steel is one of process. “Hot rolling” refers to processing done with heat. “Cold rolling” refers to processes done at or near room temperature. ... It may seem obvious, but some types of steel are better suited for certain applications.



Product introduction:



Commodity Steel Sheet Roll TP316L ASTM A240 6x1220x2440mm Hot Rolled Sheet Steel
Grade 316L
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness

mm

Width 1220 mm
Length 2440 mm
Surface NO.1 2D NO.3
Standard JIS,AISI,ASTM,GB,DIN
Delivery time About 15 -30 days or based on the sales contract
MOQ 1 Ton
Advantages

Hot rolling can greatly reduce energy consumption and costs. The metal plastic deformation is high during hot rolling, and the deformation resistance is low, which reduces the energy consumption of metal deformation. Hot rolling can improve the processing performance of metals and alloys.



Brand Cross Reference Table:



GB NEW BRAND JIS ASTM UNS KS BS EN AS
022Cr17Ni12Mo2 SUS316L 316L S31603 STS316L 1.4404 316L


Gauge and Inch:



Gauge SS inch SS mm Mild Steel Galvanized Steel

3 0.25 6.35 0.2391
4 0.2344 5.95376 0.2242
5 0.2187 5.55498 0.2092
6 0.2031 5.15874 0.1943
7 0.1875 4.7625 0.1793
8 0.165 4.191 0.1644 0.168
9 0.1562 3.96748 0.1495 0.1532
10 0.1406 3.57124 0.1345 0.1382
11 0.125 3.175 0.1196 0.1233
12 0.1094 2.77876 0.1046 0.1084
13 0.0937 2.37998 0.0897 0.0934
14 0.0781 1.98374 0.0747 0.0785
15 0.0703 1.78562 0.0673 0.071
16 0.0625 1.5875 0.0598 0.0635
17 0.0562 1.42748 0.0538 0.0575
18 0.05 1.27 0.0478 0.0516
19 0.0437 1.10998 0.0418 0.0456
20 0.0375 0.9525 0.0359 0.0396
21 0.0344 0.87376 0.0329 0.0366
22 0.0312 0.79248 0.0299 0.0336
23 0.0281 0.71374 0.0269 0.0306
24 0.025 0.635 0.0239 0.0276
25 0.0219 0.55626 0.0209 0.0247


Chemical Composition:



Grade C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤1.00 5.57.5 ≤0.060 ≤0.03 3.55.5 16.0018.00 -
202 ≤0.15 ≤1.00 7.510.0 ≤0.060 ≤0.03 4.06.0 17.0019.00 -



Physical Property:



Grade Tensile Strength(Mpa) Yield Strength(Mpa) Elongation(%) HBW HRB HV
316L ≥480 ≥175 ≥40 ≤187 ≤90 ≤200


Feature:



304 and 304L ASTM A240 stainless steel plate is a standard 18-8 material – meaning it contains 18% chromium and 8% nickel. 304 Stainless steel plate is one of the most versatile stainless steel materials available. It has excellent forming and welding characteristics.



Surface Finish:



A240 TP316L Hot Rolled Stainless Steel Sheet 6x1220x2440mm 0



Surface Finish Definition Application
2B Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface General application Medical instruments, Tableware
BA Bright heat treament after cold rolling Kitchen utensil, kitchenware, architectural
8K A mirror-like reflective surface by polishing with finer abrasives over 800mesh Construction, mirrors, plate sets, decoration elevators
HL Finished by continuous linear polishing Architectural purpose, Escalators, kitchenware, vehicles
NO.1 Finished by hot rolling, annealing and picking, characterized by white pickled surface Chemical industry Equipment, industrail tanks
NO.4 Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 Kitchen utensils, Building Construction, Medical equipment



Packing:



Steel Sheet Roll TP316L ASTM A240 6x1220x2440mm Hot Rolled Sheet Steel Packing 2 types:



l Standard packing



A240 TP316L Hot Rolled Stainless Steel Sheet 6x1220x2440mm 1



l Fine packing



A240 TP316L Hot Rolled Stainless Steel Sheet 6x1220x2440mm 2



Factory and Machine Equipment:



We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,



1. CNC Flame Cutting Machine

2. CNC Plasma Cutting Machine

3. CNC Laser Cutting Machine

4. Bending Machine

5. Shearing Machine

6. Punch Machine

7. Driving Machine



Steel Sheet Roll TP316L ASTM A240 6x1220x2440mm Hot Rolled Sheet Steel Diaplay:



A240 TP316L Hot Rolled Stainless Steel Sheet 6x1220x2440mm 3A240 TP316L Hot Rolled Stainless Steel Sheet 6x1220x2440mm 4



WHY CHOOSE US:



Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: FOB, CIF, CFR,

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.

420 grade stainless steel has a composition of 12 to 14 percent chromium, 0.15 percent carbon, 1 percent manganese, 1 percent silicon, and tiny amounts of phosphorus and sulfur. 440 grade stainless steel has higher amounts of chromium -- 16 to 18 percent -- and carbon at 0.6 to 0.75 percent.

It's important to note that the main difference between hot rolled and cold rolled steel is one of process. “Hot rolling” refers to processing done with heat. “Cold rolling” refers to processes done at or near room temperature. ... It may seem obvious, but some types of steel are better suited for certain applications.
