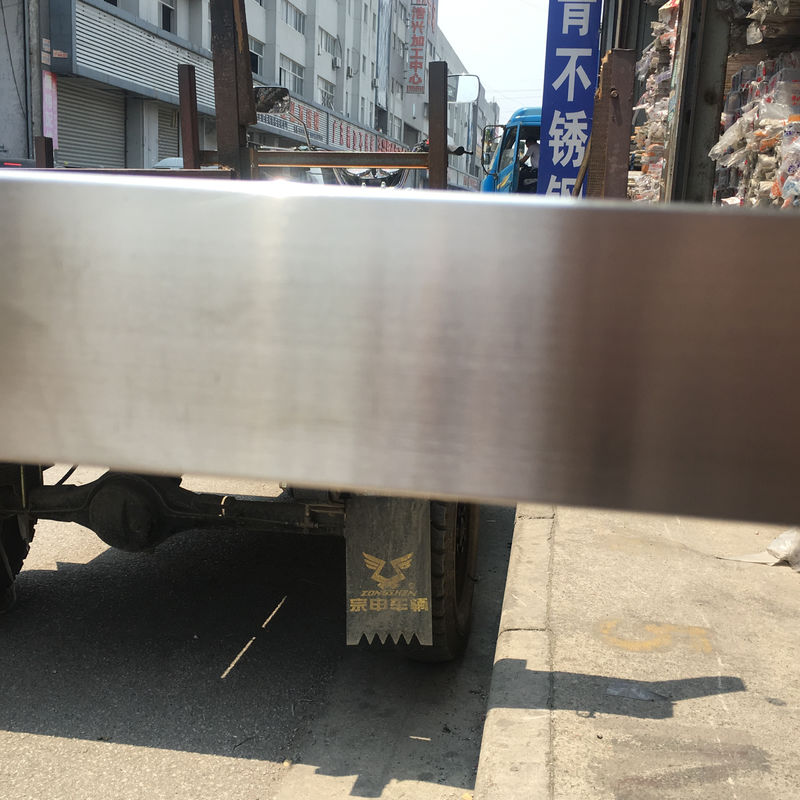

Rectangular 201 Stainless Steel Pipe 240 Grit Finish 1mm Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 201 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes be covered with waterproof protective packing materials |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 200 Tons per month |
|
Detail Information |
|||
| Name: | SS Square Tube | Thickness: | 1 Mm |
|---|---|---|---|
| Size: | 6-101mm | Length: | 6 M |
| Surface: | 240 Grit Polished | Grade: | 201 |
| Tolerance: | ±10% | Application: | Decorative |
| Standard: | ASTM A554 | End Treatment: | Threaded, Beveled, Plain, Screwed, Etc. |
| High Light: | Rectangular 201 Stainless Steel Pipe,Stainless Steel Pipe 240 Grit,240 Grit Rectangular SS Tube |
||
Product Description
ASTM A554 201 Stainless Steel Pipe 240 Grit Finish 1mm Thickness Rectangular Tube
201 stainless steel, with a certain acid and alkali resistance, high density, polishing without bubbles, no pinhole and other characteristics, is the production of all kinds of watchcase, watchband bottom cover quality materials. Mainly used for decorative pipe, industrial pipe, some shallow stretching products.
Product introduction:
| Commodity |
ASTM A554 201 Stainless Steel Pipe 180 Grit Finish 1mm Thickness Rectangular Tube |
| Grade | 201 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 1 mm |
| Size | 6-101mm |
| Length | 5.8m,6m or customized length |
| Surface | 240 Grit polished |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About15-30 days or based on the sales contract |
| MOQ | 1 TON |
| Advanatages |
Stainless Steel Square Tube has inside and outside radius corners, with a protruding interior weld seam. Stainless Square Tube is ideal for all structural applications where greater strength and superior corrosion resistance is required. |
Mechanical property:
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | HV/HB Hardness |
| 304 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 304L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 316 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 316L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 430 | ≥205 | ≥450 | ≥22 | ≤200HV |
| SAF2507 | ≥800 | ≥550 | ≥15 | ≤310HB |
| SAF2205 | ≥620 | ≥440 | ≥25 | ≤290HB |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - |
| 202 | ≤0.15 | ≤1.00 | 7.5～10.0 | ≤0.060 | ≤0.03 | 4.0～6.0 | 17.00～19.00 | - |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00～8.00 | 16.00～18.00 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 17.00～19.00 | - |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 18.00～20.00 | - |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00～22.00 | 24.00～26.00 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 |
Size:
Product display :
Advantage of 201:
Price cheap ,widely used in decorative pipe
Surface finish :
Packaging:
ASTM A554 201 Stainless Steel Pipe 240 Grit Finish 1mm Thickness Rectangular Tube packaging details :
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Wooden cases packing:
We will customized the wooden cases according to the pipe length and quantity . It will protect goods well but cost high . One wooden case size usually : 580x580x6100mm (for pipe with small size ) .
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
