Grade 316Ti Stainless Steel Flat Stock Bright Annealed Carbide Hot Rolled Flat Bar
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification: | MTC; SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Each steel bar has the single protective package and several be bundled togehter |
| Delivery Time: | 3-15 working days |
| Supply Ability: | 200 Tons per month |
|
Detail Information |
|||
| Name: | Widely Used Hot Rolled Bar Grade 316Ti | Thickness: | 4.5 Mm |
|---|---|---|---|
| Width: | 60.3mm | Length: | 6 Meters Or Customized |
| Surface: | 2B | Finish: | Bright Annealed Or Un Annealed |
| Grade: | 316Ti | Tolerance: | ±3% |
| Application: | Construction | Technique: | Hot Rolled |
| High Light: | 316Ti Stainless Steel Bright Annealed,Carbide Stainless Steel Flat Stock,Bright Annealed Hot Rolled Flat Bar |
||
Product Description
Widely Used Hot Rolled Bar Grade 316Ti Carbide Hot Rolled Steel Flat Bar
316Ti is a metal material. Ti is added to SUS316 steel to improve the resistance to intergranular corrosion. Equipment used to resist sulfuric acid, phosphoric acid and acetic acid.
Product introduction:
| Commodity | 6m ASTM 2B Cold Rolled 304 Stainless Steel Flat Bar 2.5mm Thickness |
| Grade | 304 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness |
4.5 mm |
| Width | 10-300mm |
| Length | 5.8m,6m or customized length |
| Surface | Hot rolled |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About15-30 days or based on the sales contract |
| MOQ | 1 TON |
| Advanatages | Stainless steel bar is widely used in hardware, shipbuilding, petrochemical, machinery,medicine,food,electric power, energy, building upholster,nuclear power,aerospace,military industry and other industries,marine equipment,chemical,dyestuff, paper-making, oxalic acid,fertilizer and other production equipment, food industry,coastal facilities,rope,CD rod,bolts and nuts |
Mechanical property:
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | HV/HB Hardness |
| 304 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 304L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 316 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 316L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 430 | ≥205 | ≥450 | ≥22 | ≤200HV |
| SAF2507 | ≥800 | ≥550 | ≥15 | ≤310HB |
| SAF2205 | ≥620 | ≥440 | ≥25 | ≤290HB |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - |
| 202 | ≤0.15 | ≤1.00 | 7.5～10.0 | ≤0.060 | ≤0.03 | 4.0～6.0 | 17.00～19.00 | - |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00～8.00 | 16.00～18.00 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 17.00～19.00 | - |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 18.00～20.00 | - |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00～22.00 | 24.00～26.00 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.00～15.00 | 16.00～18.00 | 2.00～3.00 |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 17.00～19.00 | - |
| 410 | ≤0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 11.500～13.50 | - | |
| 430 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00～18.00 | - |
Stainless steel has better corrosion resistance than 304 stainless steel, and has good corrosion resistance in the production process of pulp and paper. Moreover, 316 stainless steel is also resistant to marine and aggressive industrial atmosphere. 316 stainless steel has good oxidation resistance in intermittent use below 1600 degrees and continuous use below 1700 degrees. In the range of 800-1575 degrees, Zui should not continuously act on 316 stainless steel, but when 316 stainless steel is continuously used outside this temperature range, the stainless steel has good heat resistance. The carbide precipitation resistance of 316L stainless steel is better than that of 316 stainless steel, and the above temperature range can be used. Annealing in the temperature range of 1850-2050 degrees, then rapid annealing, and then rapid cooling., It has high temperature resistance, easy processing and high strength. 316L stainless steel, post weld annealing is not required.
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
| 12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
| 12Cr17Ni7 | SUS301 | 301 | S30100 | STS301 | 1.4319 | 301 |
| 06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
| 022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 304L |
| 06Cr19Ni10N | SUS304N1 | 304N | S30451 | STS304N1 | 1.4315 | 304N1 |
| 06Cr19Ni9NbN | SUS304N2 | XM21 | S30452 | STS304N2 | - | 304N2 |
| 022Cr19Ni10N | SUS304LN | 304LN | S30453 | STS304LN | - | 304LN |
| 10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | 305 |
| 06Cr23Ni13 | SUS309S | 309S | S30908 | STS309S | 1.4833 | 309S |
| 06Cr25Ni20 | SUS310S | 310S | S31008 | STS310S | 1.4845 | 310S |
| 06Cr17Ni12Mo2 | SUS316 | 3016 | S31600 | STS316 | 1.4401 | 316 |
| 06Cr17Ni12Mo2Ti | SUS316Ti | 316Ti | S31635 | - | 1.4571 | 316Ti |
| 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
| 06Cr17Ni12Mo2N | SUS316N | 316N | S31651 | STS316N | - | 316N |
| 022Cr17Ni13Mo2N | SUS316LN | 316LN | S31653 | STS316LN | 1.4429 | 316LN |
| 06Cr18Ni12Mo2Cu2 | SUS316J1 | - | - | STS316J1 | - | 316J1 |
| 022Cr18Ni14Mo2Cu2 | SUS316J1L | - | - | STS316J1L | - | - |
| 06Cr19Ni13Mo3 | SUS317 | 317 | S31700 | STS317 | - | 317 |
Surface finish :
Packaging:
Widely Used Hot Rolled Bar Grade 316Ti Carbide Hot Rolled Steel Flat Bar packaging details :
1:Each steel bar has the single protective package and several be bundled togehter ;
2:Stainless steel flat bars will be packaged with protective packing materials
and bundled with strong strips ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

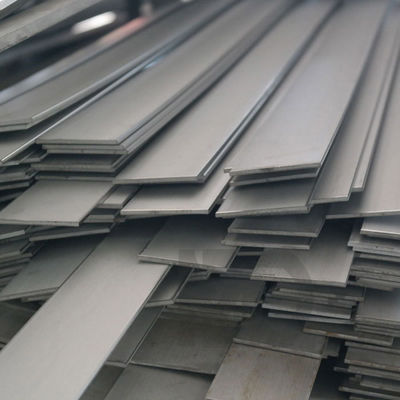

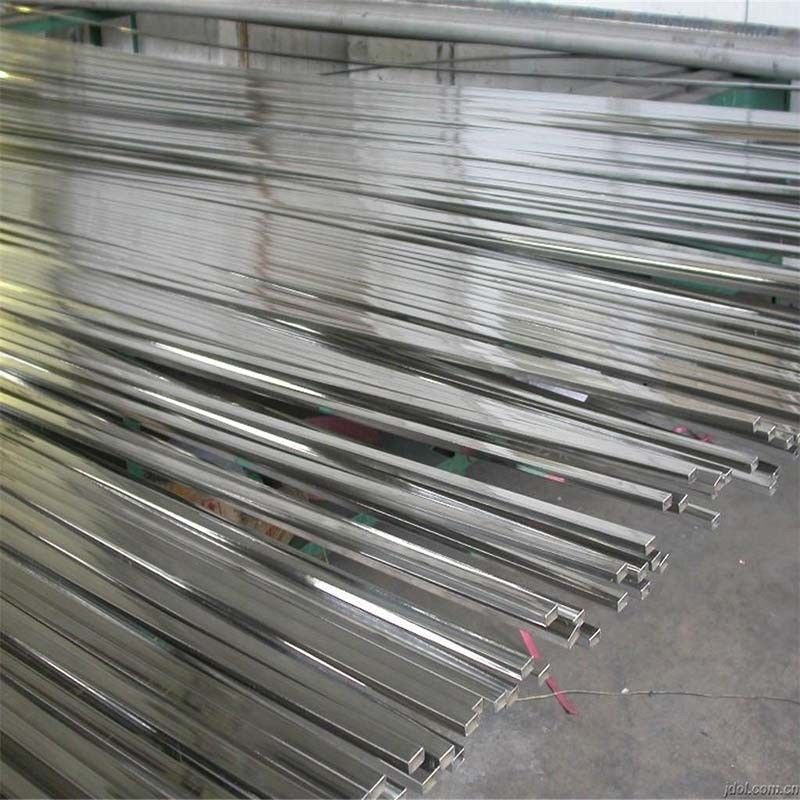

Products Show:
