Hot Rolled Annealed SS Flat Bar 60mm Pickled Surface ASTM Standard
Product Details:
Place of Origin: | China |
Brand Name: | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
Certification: | MTC; SGS |
Model Number: | 304 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Ton |
---|---|
Price: | Negotiable |
Packaging Details: | Each steel bar has the single protective package and several be bundled togehter |
Delivery Time: | 7-15 working days |
Supply Ability: | 200 Tons per month |
Detail Information |
|||
Name: | 316L Stainless Steel Flat Bar | Thickness: | 2 Mm |
---|---|---|---|
Width: | 60 Mm | Length: | 6 Meters Or Customized |
Surface: | 2B BA | Finish: | Bright Annealed Or Un Annealed |
Grade: | 304 | Tolerance: | ±3% |
Application: | Construction | Technique: | Cold Rolled |
High Light: | Annealed SS Flat Bar,60mm SS Flat Bar,Pickled Surface SS Flat Bar |
Product Description
SUS 304 Hot rolled Stainless Steel Flat Bar Annealed And Pickled Surface ASTM Standard
304 Stainless Steel is an austenite steel and contains between 16% and 24% chromium and up to 35% nickel. The most common type of 304 stainless steel is the 18/8 or 18-8 steel, which constitutes 18% chromium and 8% nickel. Additionally, it contains about 2% manganese, 0.1% nitrogen, 0.03% sulphur, 0.08% carbon, 0.75% silicon and 0.045% phosphorous. 304 stainless steel is the most popular and widely used grade of steel.
Product introduction:
Commodity | SUS 304 Hot rolled Stainless Steel Flat Bar Annealed And Pickled Surface ASTM Standard |
Grade | 304 |
Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
Certification | SGS,BV,IQI,TUV,ISO,etc |
Thickness | 3-60mm |
Width | 10-300mm |
Length | 5.8m,6m or customized length |
Surface | Hot rolled |
Standard | JIS,AISI,ASTM,GB,DIN |
Delivery time | About15-30 days or based on the sales contract |
MOQ | 1 TON |
Advanatages | Stainless steel bar is widely used in hardware, shipbuilding, petrochemical, machinery,medicine,food,electric power, energy, building upholster,nuclear power,aerospace,military industry and other industries,marine equipment,chemical,dyestuff, paper-making, oxalic acid,fertilizer and other production equipment, food industry,coastal facilities,rope,CD rod,bolts and nuts |
Mechanical property:
Grade | YS(Mpa) | TS(Mpa) | EL(%) | HV/HB Hardness |
304 | ≥205 | ≥520 | ≥40 | ≤200HV |
304L | ≥175 | ≥480 | ≥40 | ≤200HV |
316 | ≥205 | ≥520 | ≥40 | ≤200HV |
316L | ≥175 | ≥480 | ≥40 | ≤200HV |
430 | ≥205 | ≥450 | ≥22 | ≤200HV |
SAF2507 | ≥800 | ≥550 | ≥15 | ≤310HB |
SAF2205 | ≥620 | ≥440 | ≥25 | ≤290HB |
Chemical Composition:
Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.03 | 3.5~5.5 | 16.00~18.00 | - |
202 | ≤0.15 | ≤1.00 | 7.5~10.0 | ≤0.060 | ≤0.03 | 4.0~6.0 | 17.00~19.00 | - |
301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00~8.00 | 16.00~18.00 | - |
302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~10.00 | 17.00~19.00 | - |
304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~10.00 | 18.00~20.00 | - |
304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00~13.00 | 18.00~20.00 | - |
310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00~22.00 | 24.00~26.00 | - |
316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00~13.00 | 17.00~19.00 | - |
410 | ≤0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 11.500~13.50 | - | |
430 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 | - |
Advantage of 304:
Using 304 stainless steel is a smart choice for your budget’s project and longevity. It is cost-effective in comparison to other materials. Its high quality and durability ensures that your product lasts a long time and the design of it is suitable for home and commercial use.
Brand Cross Reference Table:
GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
12Cr17Ni7 | SUS301 | 301 | S30100 | STS301 | 1.4319 | 301 |
06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 304L |
06Cr19Ni10N | SUS304N1 | 304N | S30451 | STS304N1 | 1.4315 | 304N1 |
06Cr19Ni9NbN | SUS304N2 | XM21 | S30452 | STS304N2 | - | 304N2 |
022Cr19Ni10N | SUS304LN | 304LN | S30453 | STS304LN | - | 304LN |
10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | 305 |
06Cr23Ni13 | SUS309S | 309S | S30908 | STS309S | 1.4833 | 309S |
06Cr25Ni20 | SUS310S | 310S | S31008 | STS310S | 1.4845 | 310S |
06Cr17Ni12Mo2 | SUS316 | 3016 | S31600 | STS316 | 1.4401 | 316 |
06Cr17Ni12Mo2Ti | SUS316Ti | 316Ti | S31635 | - | 1.4571 | 316Ti |
022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
06Cr17Ni12Mo2N | SUS316N | 316N | S31651 | STS316N | - | 316N |
022Cr17Ni13Mo2N | SUS316LN | 316LN | S31653 | STS316LN | 1.4429 | 316LN |
06Cr18Ni12Mo2Cu2 | SUS316J1 | - | - | STS316J1 | - | 316J1 |
022Cr18Ni14Mo2Cu2 | SUS316J1L | - | - | STS316J1L | - | - |
06Cr19Ni13Mo3 | SUS317 | 317 | S31700 | STS317 | - | 317 |
Surface finish :

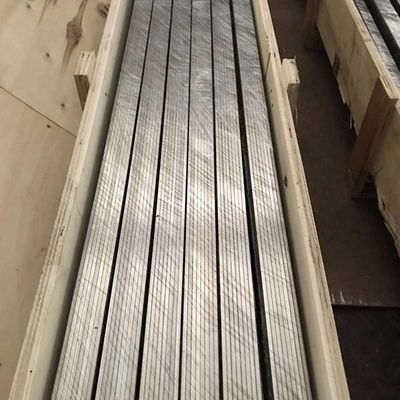

Packaging:
SUS 304 Cold Rolled Punching Brushed Polished SUS 316L Stainless Steel Flat Bar packaging details :
1:Each steel bar has the single protective package and several be bundled togehter ;
2:Stainless steel flat bars will be packaged with protective packing materials
and bundled with strong strips ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

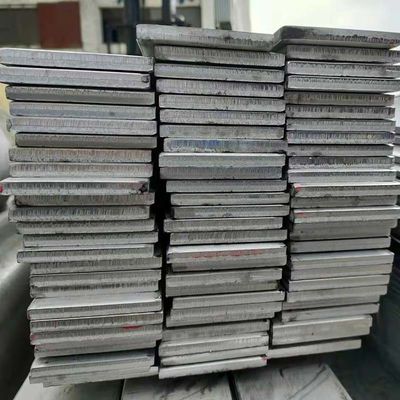

Products Show:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
