Hot Rolled Stainless Steel Square Pipe With High Density And Acid / Alkali Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 201、304、310、316 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes be covered with waterproof protective packing materials |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 200 Tons per month |
|
Detail Information |
|||
| Name: | SS Square Tube | Thickness: | 1 .2mm |
|---|---|---|---|
| Size: | 6-101mm | Length: | 6 M |
| Surface Finish: | BA/2B/NO.1/NO.2/NO.8/HL/8K/Brush/Mirror Finish | Material: | 201,301, 304,310S, 410, 316L, 316, 321, 314, 430 |
| Tolerance: | ±10% | Application: | Decorative |
| Standard: | ASTM A554 | End Treatment: | Threaded, Beveled, Plain, Screwed, Etc. |
| High Light: | Alkali Resistance Stainless Steel Square Pipe,Hot Rolled Stainless Steel Square Pipe,High Density Stainless Steel Square Pipe |
||
Product Description
201/304/310/316/316L/321/904/2205/2507 Stainless Steel Duplex Steel Galvanized Square / Rectangular Tube Pipe Hot Rolled
201 stainless steel, with a certain acid and alkali resistance, high density, polishing without bubbles, no pinhole and other characteristics, is the production of all kinds of watchcase, watchband bottom cover quality materials. Mainly used for decorative pipe, industrial pipe, some shallow stretching products.
Product introduction:
| Processing | Forging | Length | 300mm-1000mm and customized. |
| Size | 3MM-500MM and customized size | Perforated or Not | No |
| Standard | ASTM DIN GB ISO JIS BA ANSI | Technics | Electroslag remelting and Heat treatment |
| Material | 201/202/301/302/303/303Se/304/304L/304N/XM21/ 305/309S/310S/316/316Ti |
Surface | black, pickling, bright |
| S31635/316L/316N/316LN/317/317L/321/347/XM7/ XM15/XM27/403/405/410/420/430/431 |
OEM service | Yes | |
| Shape | Round, flat, square, triangle, hexagon, angle | Production capitaty | 150 TON/day 5000 TON /month |
| Place of Origin | SHANDONG | M.O.Q | 1 TON |
| Export packing | Standard Export Seaworthy Package.Suit for all kinds of transport,or as required | Terms of payment | 30%T/T and 70% balance |
Mechanical property:
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | HV/HB Hardness |
| 304 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 304L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 316 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 316L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 430 | ≥205 | ≥450 | ≥22 | ≤200HV |
| SAF2507 | ≥800 | ≥550 | ≥15 | ≤310HB |
| SAF2205 | ≥620 | ≥440 | ≥25 | ≤290HB |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - |
| 202 | ≤0.15 | ≤1.00 | 7.5～10.0 | ≤0.060 | ≤0.03 | 4.0～6.0 | 17.00～19.00 | - |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00～8.00 | 16.00～18.00 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 17.00～19.00 | - |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 18.00～20.00 | - |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00～22.00 | 24.00～26.00 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 |
Size:

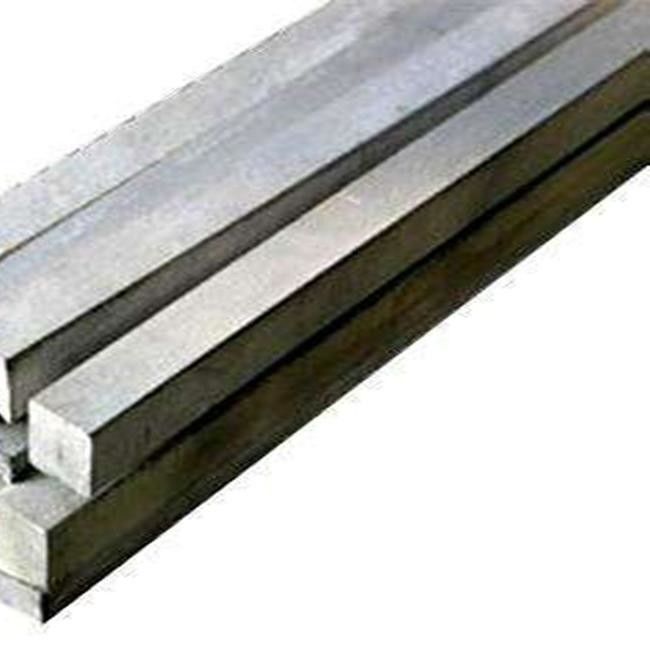

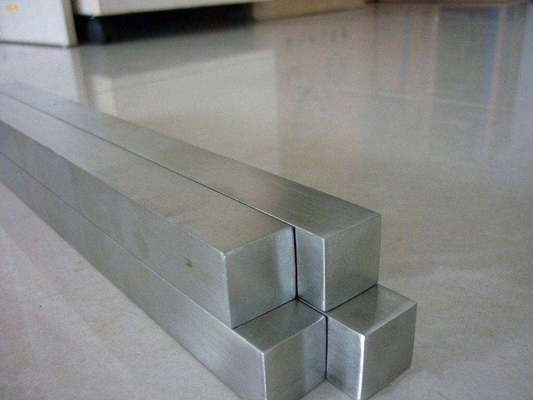

Product display :
Advantage of 201:
Price cheap ,widely used in decorative pipe
Surface finish :
Packaging:
180 Grit Finish ASTM A554 201 Stainless Steel Pipe 1.2mm Thickness Square Tube packaging details :
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Wooden cases packing:
We will customized the wooden cases according to the pipe length and quantity . It will protect goods well but cost high . One wooden case size usually : 580x580x6100mm (for pipe with small size ) .
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
