304 Stainless Steel Square Pipe With 1.0mm Thickness And Customized Length
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 304 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes be covered with waterproof protective packing materials |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 100 Tons per month |
|
Detail Information |
|||
| Name: | 304 SS Square Pipe | Thickness: | 1.0mm |
|---|---|---|---|
| Size: | 6-101mm | Usage: | Construction Structure |
| Surface: | Matt Surface | Grade: | 304 |
| Tolerance: | ±10% | Application: | Industrial |
| Packing: | STANDARD PACKING | End Treatment: | Threaded, Beveled, Plain, Screwed, Etc. |
| High Light: | 1.0mm Stainless Steel Square Pipe,Customized Length Stainless Steel Square Pipe,304 Stainless Steel Square Pipe |
||
Product Description
304 Stainless Steel Square Pipe with 1.0mm Thickness and Customized Length
Stainless steel square tube is a type of hollow strip steel, also known as stainless steel rectangular tube. There are many types of materials for stainless steel square tubes, including 201, 202, 301, 304, 316, 321, etc. Stainless steel square tubes have advantages such as corrosion resistance, high temperature resistance, wear resistance, high strength, and aesthetics, and are therefore widely used in various fields.
Product introduction:
| Product Name | 304 Stainless Steel Square Pipe with 1.0mm Thickness and Customized Length |
| Standard | ASTM, JIS, DIN EN,GB |
| Certificate | ISO, SGS ,CE or other third party inspection acceptable. |
| Outer Diameter | 1) Round pipe: 8mm to 680 mm 2) Square pipe: 10x10mm to 300x300mm 3) Rectangular pipe: 10x20mm to 120x180mm |
| Thickness | 0.5mm-100mm |
| Type | Seamless pipe/tube, welded pipe/tube |
| Shape | Round, Square, Rectangular, Slot, Oval, etc |
| Length | 6m or as customer's request |
| Surface | 180G, 320G, 400G Satin / Hairline;400G, 500G, 600G or 800G Mirror finish,HL,8K,etc, |
| Application | Decoration,construction,upholstery,industry instrument,medical equipment,ect |
| Payment terms | T/T, L/C at sight, Western Union,etc. |
| Trade terms | Ex-Work, FOB/CFR/CIF |
| Delivery Time | 15-20 days after receive the deposit. |
| Packing | Water proof film coated, standard export package or as required. |
| Port of shipment | Wuxi, Shanghai or as required. |
| Packing | Standard export package or as required |
| Advantage | Small MOQ + Superior quality + Competitive price + Fast delivery |
Mechanical property:
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | HV/HB Hardness |
| 304 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 304L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 316 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 316L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 430 | ≥205 | ≥450 | ≥22 | ≤200HV |
| SAF2507 | ≥800 | ≥550 | ≥15 | ≤310HB |
| SAF2205 | ≥620 | ≥440 | ≥25 | ≤290HB |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - |
| 202 | ≤0.15 | ≤1.00 | 7.5～10.0 | ≤0.060 | ≤0.03 | 4.0～6.0 | 17.00～19.00 | - |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00～8.00 | 16.00～18.00 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 17.00～19.00 | - |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 18.00～20.00 | - |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00～22.00 | 24.00～26.00 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 |
Size:

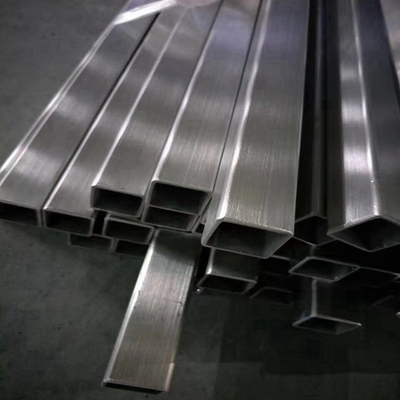

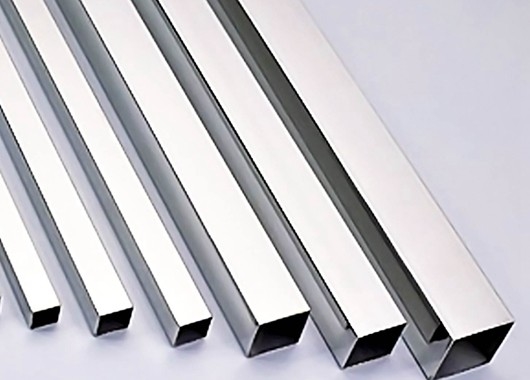

Product display :
Advantage of 304:
304 is a universal stainless steel, which is widely used in the manufacture of equipment and parts requiring good comprehensive properties (corrosion resistance and formability). To maintain the corrosion resistance inherent in stainless steel, the steel must contain at least 18% chromium and at least 8% nickel.
Surface finish :
Packaging:
ASTM A554 304 Stainless Steel Round Pipe 1.0mm Thickness SS 304 Tube Matt Surface Packaging Details :
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Wooden cases packing:
We will customized the wooden cases according to the pipe length and quantity . It will protect goods well but cost high . One wooden case size usually : 580x580x6100mm (for pipe with small size ) .
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
