ASTM ASME Standard TP301 Stainless Steel Seamless SS Round Tube 1 1/2 Quot Sch10
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 301 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes will be covered with waterproof protective packing materials; |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 100 Tons per month |
|
Detail Information |
|||
| Name: | 301 Seamless Ss Pipe | Shape: | Round |
|---|---|---|---|
| Outer Diameter: | 48.3 Mm | Thickness: | 2.77mm |
| Finish: | Annealed Or Un Annealed | Thickness Tolerance: | ±5% |
| Application: | Fluid Pipe | Standard: | ASTM 312 |
| MOQ: | 1 Ton | Type: | Seamless Round Steel Pipe |
| High Light: | Sch10 SS Round Tube,ASTM ASME Standard SS Round Tube,TP301 SS Round Tube |
||
Product Description
ASTM ASME Standard TP301 Stainless Steel Seamless SS Round Tube 1 1/2" Sch10
301 is the most easy cold deformation strengthening steel grade, by cold deformation processing can make the strength of steel, hardness, and retain enough plastic and toughness, together with the steel under the condition of the atmosphere with good rust resistance, but the poor corrosion resistance, reducing medium in acid and alkali salt chemical medium corrosion resistance is poorer, therefore is not recommended for corrosion harsh environment. 301 is mainly used in cold working state to withstand high load, but also want to reduce the weight of equipment and do not rust equipment parts
Product introduction:
|
Description
|
||
|
Item
|
Round aisi tube prices 201 304 304l 316 stainless steel pipe/tube
|
|
|
Steel grade
|
200/300/400 series
|
|
|
Standard |
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,
GB13296 |
|
|
Material
|
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,
202 |
|
|
Surface
|
Polishing,annealing,pickling,bright
|
|
|
Type
|
hot rolled and cold rolled
|
|
|
stainless steel round pipe/tube
|
||
|
Size |
Wall thickness
|
1mm-150mm(SCH10-XXS)
|
|
Outer diameter
|
6mm-2500mm (3/8"-100")
|
|
|
Delivery time
|
Prompt delivery or as the order quantity.
|
|
|
Package
|
Standard export seaworthy package,or as required.
|
|
|
Application |
Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper
making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required. |
|

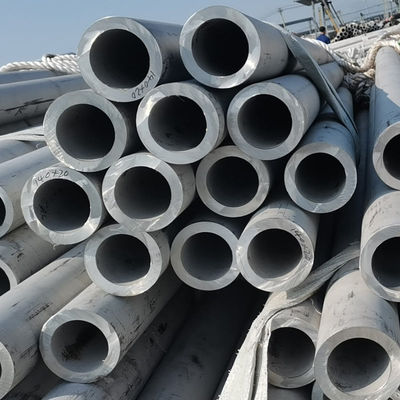

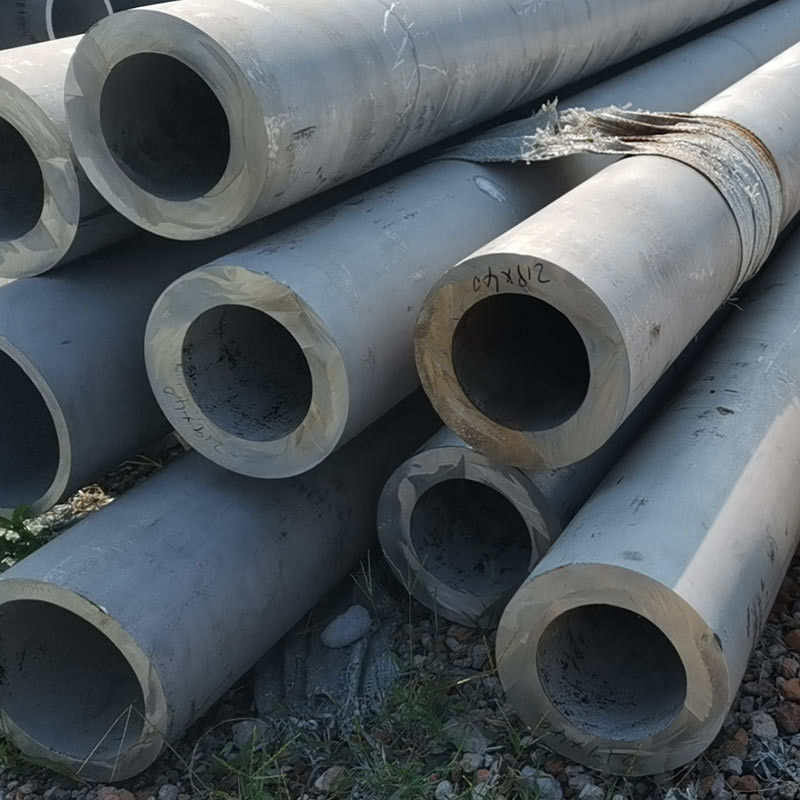

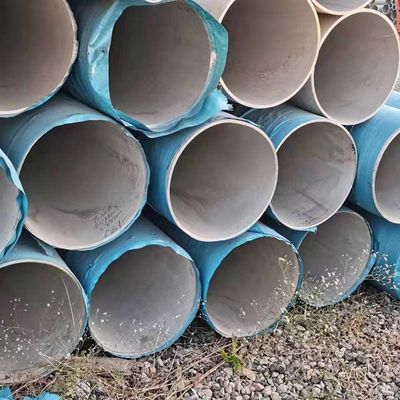

Product Display :
Chemical Composition:
| Grade | Chemical Composition (WT %) | ||||||
| C | Mn | P | S | Si | Cr | Ni | |
| 301 | ≤ 0.15 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 16.0 to 18.0 | 6.00 to 8.00 |
Physical Property:
| Physical Property | |||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | / | Hardness(HV/HB) | Density |
| ≥520MPa | ≥205MPa | ≥40% | / | ≤200HV | 7.93g/cm3 |
The following table is the size of the stainless steel seamless tube. For any other detail information, please feel free to contact us.
Typicall material :
| Seamless and redrawn | |||
| ASTM Grade | UNS no. | Condition | Specifications |
| 304 | S30400 | Hard | AMS 5566/5564 |
| 304 | S30400 | Hard | MILT 5695 |
| 304 | S30400 | Hard | LN 9396 |
| 304 | S30400 | Hard | LN 9398 |
| 304 | S30400 | Annealed | MILT 8504 |
| 304L | S30403 | Hard | AMS 5569 |
| 304L | S30403 | Hard or annealed | AIR 9164 |
| 304L | S30403 | Hard or annealed | AIR 9160 |
| 304L | S30403 | Annealed | AIR 9423 |
| 304L | S30403 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | AMS 5645, AMS 5557/5570 |
| 321 | S32100 | Hard or annealed | AIR 9164 |
| 321 | S32100 | Hard or annealed | AIR 9160 |
| 321 | S32100 | Annealed | AIR 9423 |
| 321 | S32100 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | BSI T67 |
| 321 | S32100 | Annealed | LN 9396 |
| 321 | S32100 | Annealed | MILT 8808 |
| 321/347 | S34700 | Annealed | LN 9398 |
| 347 | S34700 | Annealed | AMS 5571/5556 |
| 347 | S34700 | Hard | BSI T68 |
| 347 | S34700 | Annealed | BSI T66 |
| 347 | S34700 | Annealed | BSI T72 |
| 347 | S34700 | Annealed | MILT 8808 |
| 304/304L | S30400/S30403 | Hard | MILT 6845 |
| 304L/321/347 | S30403/S32100/S34700 | Annealed | MILT 8606 |
| 304L/316L/321/347 | S30403/S32100/S34700 | Hard | MILT 8973 |
| Alloy 625 | N06625 | Annealed | AMS 5581 |
| Alloy 718 | N07718 | Annealed | AMS 5590 |
| Nickel 200 | N02200 | Annealed |
|
SCH Table:
Surface Finish:
Packaging:
ASTM ASME Standard TP301 Stainless Steel Seamless SS Round Tube 1 1/2" Sch10 packaging details:
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
