1.2 Mm Stainless Steel Sheet Cold Rolled For Energy And Power Plants

1.2 Mm Stainless Steel Sheet Cold Rolled For Energy And Power Plants

Product Details:

Place of Origin: China
Brand Name: TISCO,BAOSTEEL,POSCO,JISCO,LISCO
Certification: MTC; SGS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20' or 40' GP
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 100 tons per month
Get Best Price Contact Now

Detail Information
Name: 1.2 Mm Stainless Steel Sheet Standard: JIS/AISI/ASTM/SUS/EN
Key Word: Stainless Steel Sheet Steel Grade: 301L, 310S, 316Ti, 316, 443, 304, 409L, 405, 444, 305, 202
Material: 200 Series/300 Series/400 Series Invoicing: By Theoretical Weight
Processing: Bending, Welding, Decoiling, Punching, Cutting, Polishhing Surface Finish: No.1, 2D, 2b, Ba, 8K, No.4, Hairline, Sandblasting
Width: 2438.4 Mm 8' Application: Textile, Food, Machinery, Constructio
High Light:

Power Plants stainless steel sheet

,

Energy stainless steel sheet

,

1.2 Mm Cold Rolled stainless steel sheet

Product Description

1.2 mm stainless steel sheet Cold Rolled for Energy and Power Plants



The processing performance of cold-rolled stainless steel sheets is excellent, and they can be processed through cutting, stamping, bending, welding, and other processes. During the processing, it is necessary to pay attention to maintaining the surface smoothness and dimensional accuracy of the board to avoid problems such as scratches and deformation.
Cold rolled stainless steel sheets have excellent corrosion resistance and can be used in harsh environments. However, it is still necessary to pay attention to maintenance and upkeep during use to avoid problems such as rust and corrosion.



Product introduction:



Commodity Stainless Steel Sheet Plate
Standard AISI, ASTM, ASME, EN, BS, GB, DIN, JIS, etc
Material 200 Series: 201,202
300 Series: 301,304,304L,316,316L,316Ti,309,310,317,321
400 Series: 409,410,420,430,436,444,441,440c
Duplex Steel: 904L,2205,2507,2101,2520,2304
Standard size 4x8 ft, 1220x2440mm; 5x10 ft, 1500x3000mm
Thickness Thin Sheet: 0.1mm-3mm, Thick Plate: 3mm-16mm, Extra Thick Plate: 16mm-115mm
Width 1000mm, 1220mm, 1250mm, 1500mm, 1800mm, 2000mm, 2500mm
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm
Technicial Cold Rolled, Hot Rolled
Surface No.1, 2D, 2B, BA, No.4, Hairline, Brushed, No.8, 8K, Mirror, Sandblasting
Surface Treatment Corrugated, Perforated, Embossed, Etched, Water Rippled
Color Golden, Champagne gold, Rose gold, Brown, Bronze, Brass, Black, etc.
Edges Mill Edges, Silt Edges
Processing Bending, Welding, Decoiling, Punching, Cutting
Delivery time In stock: 1-3 days, Not in stock: 7-10 days
MOQ 1 Ton
Payment Terms T/T, L/C, Paypal, Credit Card, Trade Online
Certificates ISO9001, CE, SGS, TUV
Sample Free provided, trial order can be acceptable
Origin TISCO / ZPSS / JISCO / Easternsteel/ Chengde/ Delong.etc
Packing In bundles, packed with Water proof paper and Wooden pallet or according to customer's request.
Export to UAE, Arab, Turkey, Spain, Chile, Colombia, Brazil, Kuwait, Malaysia, Vietnam, Philippines, Indonesia, Korea, India, South Africa, etc
Applications Interior/ exterior/ architectural/ bathroom decoration, elevator decoration, hotel decoration, kitchen equipment, ceiling, cabinet, kitchen sink, advertising nameplate
Advantages Strong corrosion and decorative effect;
Excellent and high quality control; competitive price;
Timely, reliable and efficient delivery;
Customer service.
Cheap, better, faster



Gauge and Thickness Inch:



Gauge Mild Steel Aluminum Galvanized Steel Stainless Steel

3 0.2391 0.2294   0.2500
4 0.2242 0.2043   0.2344
5 0.2092 0.1819   0.2187
6 0.1943 0.1620   0.2031
7 0.1793 0.1443   0.1875
8 0.1644 0.1285 0.1680 0.1650
9 0.1495 0.1144 0.1532 0.1562
10 0.1345 0.1019 0.1382 0.1406
11 0.1196 0.0907 0.1233 0.1250
12 0.1046 0.0808 0.1084 0.1094
13 0.0897 0.0720 0.0934 0.0937
14 0.0747 0.0641 0.0785 0.0781
15 0.0673 0.0571 0.0710 0.0703
16 0.0598 0.0508 0.0635 0.0625
17 0.0538 0.0453 0.0575 0.0562
18 0.0478 0.0403 0.0516 0.0500
19 0.0418 0.0359 0.0456 0.0437
20 0.0359 0.0320 0.0396 0.0375
21 0.0329 0.0285 0.0366 0.0344
22 0.0299 0.0253 0.0336 0.0312
23 0.0269 0.0226 0.0306 0.0281
24 0.0239 0.0201 0.0276 0.0250
25 0.0209 0.0179 0.0247 0.0219
26 0.0179 0.0159 0.0217 0.0187
27 0.0164 0.0142 0.0202 0.0172
28 0.0149 0.0126 0.0187 0.0156
29 0.0135 0.0113 0.0172 0.0141
30 0.0120 0.0100 0.0157 0.0125
31 0.0105 0.0089 0.0142 0.0109
32 0.0097 0.0080 0.0134 0.0102
33 0.0090 0.0071   0.0094
34 0.0082 0.0063   0.0086
35 0.0075 0.0056   0.0078
36 0.0067     0.0070



Chemical Composition:



Grade C Si Mn P S Ni Cr Mo N
202 ≤0.15 ≤1.00 7.5～10.0 ≤0.060 ≤0.03 4.0～6.0 17.00～19.00 -
202 ≤0.15 ≤1.00 7.5～10.0 ≤0.060 ≤0.03 4.0～6.0 17.00～19.00 -
410 ≤0.15 ≤1.00 ≤1.00 ≤0.040 ≤0.03   11.50～13.50 -
430 ≤0.12 ≤1.00 ≤1.00 ≤0.040 ≤0.03   16.00～18.00 -
304 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.00～10.00 18.00～20.00 -
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00～14.00 16.00～18.00 2.00～3.00
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 12.00～15.00 16.00～18.00 2.00～3.00
430 ≤0.12 ≤1.00 ≤1.00 ≤0.040 ≤0.03   16.00～18.00 -
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 12.00～15.00 16.00～18.00 2.00～3.00
2205 ≤0.03 ≤1.00 ≤2.00 ≤0.04 ≤0.03 4.5～6.5 21.0～24.0 2.5～3.5 0.08～0.2
304 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.00～10.00 18.00～20.00 -
304L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 9.00～13.00 18.00～20.00 -



Physical Property:



Grade Tensile Strength(Mpa) Yield Strength(Mpa) Elongation(%) HBW HRB HV
410 ≥440 ≥205 ≥20 ≤201 ≤93 ≤210
430 ≥450 ≥205 ≥22 ≤183 ≤88 ≤200
304 ≥520 ≥205 ≥40 ≤187 ≤90 ≤200
316 ≥520 ≥205 ≥40 ≤187 ≤90 ≤200
316L ≥480 ≥175 ≥40 ≤187 ≤90 ≤200
2205 ≥620 ≥450 ≥25
201 ≥520 ≥275 ≥55 ≤241 ≤100 ≤253
202 ≥520 ≥275 ≥55 ≤207 ≤95 ≤218
410 ≥440 ≥205 ≥20 ≤201 ≤93 ≤210
420 ≥635 ≥440 ≥20 ≤223
430 ≥450 ≥205 ≥22 ≤183 ≤88 ≤200
304 ≥520 ≥205 ≥40 ≤187 ≤90 ≤200
304L ≥480 ≥175 ≥40 ≤187 ≤90 ≤200



Surface Finish:



1.2 Mm Stainless Steel Sheet Cold Rolled For Energy And Power Plants 0

Surface Finish Definition Application
2B Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface General application Medical instruments, Tableware
BA Bright heat treament after cold rolling Kitchen utensil, kitchenware, architectural
8K A mirror-like reflective surface by polishing with finer abrasives over 800mesh Construction, mirrors, plate sets, decoration elevators
HL Finished by continuous linear polishing Architectural purpose, Escalators, kitchenware, vehicles
NO.1 Finished by hot rolling, annealing and picking, characterized by white pickled surface Chemical industry Equipment, industrail tanks
NO.4 Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 Kitchen utensils, Building Construction, Medical equipment



Brand Cross Reference Table:



GB NEW BRAND JIS ASTM UNS KS BS EN AS
12Cr17Mn6Ni5N SUS201 201 S20100 STS201 1.4372 201-2
12Cr18Mn9Ni5N SUS202 202 S20200 STS202 1.4373 -
12Cr17Ni7 SUS301 301 S30100 STS301 1.4319 301
06Cr19Ni10 SUS304 304 S30400 STS304 1.4301 304
022Cr19Ni10 SUS304L 304L S30403 STS304L 1.4306 304L
06Cr19Ni10N SUS304N1 304N S30451 STS304N1 1.4315 304N1
06Cr19Ni9NbN SUS304N2 XM21 S30452 STS304N2 - 304N2
022Cr19Ni10N SUS304LN 304LN S30453 STS304LN - 304LN
10Cr18Ni12 SUS305 305 S30500 STS305 1.4303 305
06Cr23Ni13 SUS309S 309S S30908 STS309S 1.4833 309S
06Cr25Ni20 SUS310S 310S S31008 STS310S 1.4845 310S
06Cr17Ni12Mo2 SUS316 3016 S31600 STS316 1.4401 316
06Cr17Ni12Mo2Ti SUS316Ti 316Ti S31635 - 1.4571 316Ti
022Cr17Ni12Mo2 SUS316L 316L S31603 STS316L 1.4404 316L
06Cr17Ni12Mo2N SUS316N 316N S31651 STS316N - 316N
022Cr17Ni13Mo2N SUS316LN 316LN S31653 STS316LN 1.4429 316LN
06Cr18Ni12Mo2Cu2 SUS316J1 - - STS316J1 - 316J1
022Cr18Ni14Mo2Cu2 SUS316J1L - - STS316J1L - -
06Cr19Ni13Mo3 SUS317 317 S31700 STS317 - 317
022Cr19Ni13Mo3 SUS317L 317L S31703 STS317L 1.4438 317L
06Cr18Ni11Tji SUS321 321 S32100 STS321 1.4541 321
06Cr18Ni11Nb SUS347 347 S34700 STS347 1.455 347
12Cr13 SUS410 410 S41000 STS410 1.4006 410
20Cr13 SUS420J1 420 S42000 STS420J1 1.4021 420
10Cr17 SUS430 430 S43000 STS430 1.4016 430

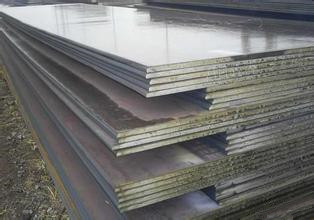

Product Display:



1.2 Mm Stainless Steel Sheet Cold Rolled For Energy And Power Plants 11.2 Mm Stainless Steel Sheet Cold Rolled For Energy And Power Plants 2



Packing:



1 Mm Thickness Stainless Steel Cold Rolled Plate 4'X8' 12 Gauge 16 Gauge:



l Standard packing



1.2 Mm Stainless Steel Sheet Cold Rolled For Energy And Power Plants 3



l Fine packing



1.2 Mm Stainless Steel Sheet Cold Rolled For Energy And Power Plants 4



Typical applications include:



  • Furnace parts
  • Oil burner parts
  • Carburising boxes
  • Heat Treatment baskets and jigs
  • Heat Exchangers
  • Welding filler wire and electrodes



Factory and Machine Equipment:



We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,



1. CNC Flame Cutting Machine

2. CNC Plasma Cutting Machine

3. CNC Laser Cutting Machine

4. Bending Machine

5. Shearing Machine

6. Punch Machine

7. Driving Machine



WHY CHOOSE US:



Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: FOB, CIF, CFR,

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
