0.5mm 2mm Stainless Steel Sheet Metal 4x8 Cold Rolled Sheet 304 904l 1220x2440
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification: | MTC; SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20' or 40' GP |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 850 tons per month |
|
Detail Information |
|||
| Name: | 304 904L 1220x2440 | Surface Finish: | 2B BA Miroor |
|---|---|---|---|
| Thickness: | 0.5 Mm 2 Mm | Thickness Tolerance: | ±3% |
| Service: | Sample Free | Width: | 1220 |
| Length: | 2440 | Color: | According To Customers's Requirement |
| Type: | Stainless Steel Sheet | Certification: | ISO, SGS, MTC |
| High Light: | 2mm cold rolled stainless steel sheet,0.5mm cold rolled stainless steel sheet,1220x2440 stainless steel cold rolled sheet |
||
Product Description
0.5mm 2mm stainless steel sheet metal 4x8 Cold Rolled Sheet 304 904l 1220x2440
Cold rolled stainless steel sheets have excellent corrosion resistance and can be used in harsh environments. However, it is still necessary to pay attention to maintenance and upkeep during use to avoid problems such as rust and corrosion.
5. The price of cold-rolled stainless steel sheets is relatively high, but due to their excellent performance and beautiful appearance, they are still widely used. When selecting cold-rolled stainless steel sheets, it is necessary to choose according to actual needs to avoid waste and unnecessary cost increases.
Product introduction:
| Commodity | Stainless Steel Cold Rolled Sheet 0.5 Mm 2 Mm 304 904L 1220x2440 |
| Grade | 304 904L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 0.5mm 2mm |
| Width |
1000mm,1219mm,1500mm as per customers’ requirements |
| Length | 2000,3000,6000mm or as per customers’ requirements |
| Surface | 2B BA Mirro |
| Standard |
JIS,AISI,ASTM,GB,DIN |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
combining excellent high temperature properties with good ductility and weldability |
Gauge and Thickness Inch:
| Gauge | Mild Steel | Aluminum | Galvanized Steel | Stainless Steel |
| 3 | 0.2391 | 0.2294 | 0.2500 | |
| 4 | 0.2242 | 0.2043 | 0.2344 | |
| 5 | 0.2092 | 0.1819 | 0.2187 | |
| 6 | 0.1943 | 0.1620 | 0.2031 | |
| 7 | 0.1793 | 0.1443 | 0.1875 | |
| 8 | 0.1644 | 0.1285 | 0.1680 | 0.1650 |
| 9 | 0.1495 | 0.1144 | 0.1532 | 0.1562 |
| 10 | 0.1345 | 0.1019 | 0.1382 | 0.1406 |
| 11 | 0.1196 | 0.0907 | 0.1233 | 0.1250 |
| 12 | 0.1046 | 0.0808 | 0.1084 | 0.1094 |
| 13 | 0.0897 | 0.0720 | 0.0934 | 0.0937 |
| 14 | 0.0747 | 0.0641 | 0.0785 | 0.0781 |
| 15 | 0.0673 | 0.0571 | 0.0710 | 0.0703 |
| 16 | 0.0598 | 0.0508 | 0.0635 | 0.0625 |
| 17 | 0.0538 | 0.0453 | 0.0575 | 0.0562 |
| 18 | 0.0478 | 0.0403 | 0.0516 | 0.0500 |
| 19 | 0.0418 | 0.0359 | 0.0456 | 0.0437 |
| 20 | 0.0359 | 0.0320 | 0.0396 | 0.0375 |
| 21 | 0.0329 | 0.0285 | 0.0366 | 0.0344 |
| 22 | 0.0299 | 0.0253 | 0.0336 | 0.0312 |
| 23 | 0.0269 | 0.0226 | 0.0306 | 0.0281 |
| 24 | 0.0239 | 0.0201 | 0.0276 | 0.0250 |
| 25 | 0.0209 | 0.0179 | 0.0247 | 0.0219 |
| 26 | 0.0179 | 0.0159 | 0.0217 | 0.0187 |
| 27 | 0.0164 | 0.0142 | 0.0202 | 0.0172 |
| 28 | 0.0149 | 0.0126 | 0.0187 | 0.0156 |
| 29 | 0.0135 | 0.0113 | 0.0172 | 0.0141 |
| 30 | 0.0120 | 0.0100 | 0.0157 | 0.0125 |
| 31 | 0.0105 | 0.0089 | 0.0142 | 0.0109 |
| 32 | 0.0097 | 0.0080 | 0.0134 | 0.0102 |
| 33 | 0.0090 | 0.0071 | 0.0094 | |
| 34 | 0.0082 | 0.0063 | 0.0086 | |
| 35 | 0.0075 | 0.0056 | 0.0078 | |
| 36 | 0.0067 | 0.0070 |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 304 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
Surface Finish:
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
| 12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
| 12Cr17Ni7 | SUS301 | 301 | S30100 | STS301 | 1.4319 | 301 |
| 06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
| 022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 304L |
| 06Cr19Ni10N | SUS304N1 | 304N | S30451 | STS304N1 | 1.4315 | 304N1 |
| 06Cr19Ni9NbN | SUS304N2 | XM21 | S30452 | STS304N2 | - | 304N2 |
| 022Cr19Ni10N | SUS304LN | 304LN | S30453 | STS304LN | - | 304LN |
| 10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | 305 |
| 06Cr23Ni13 | SUS309S | 309S | S30908 | STS309S | 1.4833 | 309S |
| 06Cr25Ni20 | SUS310S | 310S | S31008 | STS310S | 1.4845 | 310S |
| 06Cr17Ni12Mo2 | SUS316 | 3016 | S31600 | STS316 | 1.4401 | 316 |
| 06Cr17Ni12Mo2Ti | SUS316Ti | 316Ti | S31635 | - | 1.4571 | 316Ti |
| 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
| 06Cr17Ni12Mo2N | SUS316N | 316N | S31651 | STS316N | - | 316N |
| 022Cr17Ni13Mo2N | SUS316LN | 316LN | S31653 | STS316LN | 1.4429 | 316LN |
| 06Cr18Ni12Mo2Cu2 | SUS316J1 | - | - | STS316J1 | - | 316J1 |
| 022Cr18Ni14Mo2Cu2 | SUS316J1L | - | - | STS316J1L | - | - |
| 06Cr19Ni13Mo3 | SUS317 | 317 | S31700 | STS317 | - | 317 |
| 022Cr19Ni13Mo3 | SUS317L | 317L | S31703 | STS317L | 1.4438 | 317L |
| 06Cr18Ni11Tji | SUS321 | 321 | S32100 | STS321 | 1.4541 | 321 |
| 06Cr18Ni11Nb | SUS347 | 347 | S34700 | STS347 | 1.455 | 347 |
| 12Cr13 | SUS410 | 410 | S41000 | STS410 | 1.4006 | 410 |
| 20Cr13 | SUS420J1 | 420 | S42000 | STS420J1 | 1.4021 | 420 |
| 10Cr17 | SUS430 | 430 | S43000 | STS430 | 1.4016 | 430 |

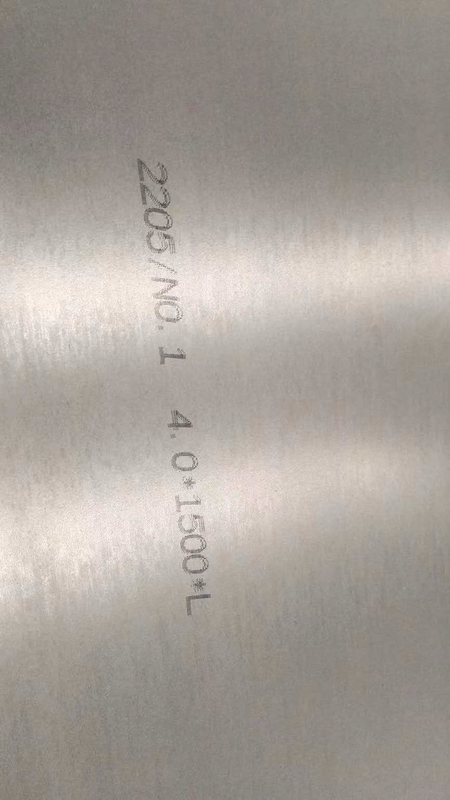

Product Display:
Packing:
Stainless Steel Cold Rolled Sheet 0.5 Mm 2 Mm 304 904L 1220x2440 2 types:
l Standard packing
l Fine packing
Typical applications include:
- Furnace parts
- Oil burner parts
- Carburising boxes
- Heat Treatment baskets and jigs
- Heat Exchangers
- Welding filler wire and electrodes

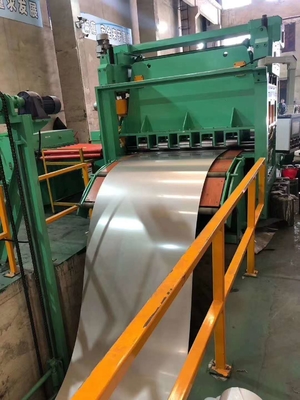

Factory and Machine Equipment:
We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
