316L 304 Cold Rolled Stainless Steel Sheet Plate With 2mm Thickness For Heat Exchangers

316L 304 Cold Rolled Stainless Steel Sheet Plate With 2mm Thickness For Heat Exchangers

Product Details:

Place of Origin: China
Brand Name: TISCO,BAOSTEEL,POSCO,JISCO,LISCO
Certification: MTC; SGS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20' or 40' GP
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 tons per month
Get Best Price Contact Now

Detail Information
Standard: JIS/AISI/ASTM/SUS/EN Thickness: 4 Mm
Steel Grade: 301L, 310S, 316Ti, 316, 443, 304, 409L, 405, 444, 305, 202 Package: Standard Export Package
Invoicing: By Theoretical Weight Processing: Bending, Welding, Decoiling, Punching, Cutting, Polishhing
Application: Textile, Food, Machinery, Construction Quality: High Quality
Application: Itchenware, Medical Equipment, Construction, Etc.
High Light:

Heat Exchangers Stainless Steel Sheet

,

2mm Stainless Steel Sheet

,

316L Stainless Steel Sheet

Product Description

316L 304 Cold Rolled Stainless Steel Sheet Plate with 2mm Thickness for Heat Exchangers

316 is a stainless steel containing molybdenum. Under high temperature conditions, when the concentration of sulfuric acid is lower than 15% and higher than 85%, 316 stainless steel has a wide range of uses. 316 stainless steel also has good resistance to chloride erosion. The corrosion resistance is better than 304 stainless steel, and it has good corrosion resistance in the production process of pulp and paper.



Product introduction:



Commodity 310s Stainless Steel Sheet 2mm 321 Cold Rolled Stainless Steel Sheet Plate
Grade 310S 321
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0-3 mm
Width

1000mm,1500mm,1500mm as per customers’ requirements
Length 2000,3000,6000mm or as per customers’ requirements
Surface BA
Standard

JIS,AISI,ASTM,GB,DIN
Delivery time About 15 -30 days or based on the sales contract
MOQ 1 Ton
Advantages

combining excellent high temperature properties with good ductility and weldability



Gauge and Thickness Inch:



Gauge Mild Steel Aluminum Galvanized Steel Stainless Steel

3 0.2391 0.2294   0.2500
4 0.2242 0.2043   0.2344
5 0.2092 0.1819   0.2187
6 0.1943 0.1620   0.2031
7 0.1793 0.1443   0.1875
8 0.1644 0.1285 0.1680 0.1650
9 0.1495 0.1144 0.1532 0.1562
10 0.1345 0.1019 0.1382 0.1406
11 0.1196 0.0907 0.1233 0.1250
12 0.1046 0.0808 0.1084 0.1094
13 0.0897 0.0720 0.0934 0.0937
14 0.0747 0.0641 0.0785 0.0781
15 0.0673 0.0571 0.0710 0.0703
16 0.0598 0.0508 0.0635 0.0625
17 0.0538 0.0453 0.0575 0.0562
18 0.0478 0.0403 0.0516 0.0500
19 0.0418 0.0359 0.0456 0.0437
20 0.0359 0.0320 0.0396 0.0375
21 0.0329 0.0285 0.0366 0.0344
22 0.0299 0.0253 0.0336 0.0312
23 0.0269 0.0226 0.0306 0.0281
24 0.0239 0.0201 0.0276 0.0250
25 0.0209 0.0179 0.0247 0.0219
26 0.0179 0.0159 0.0217 0.0187
27 0.0164 0.0142 0.0202 0.0172
28 0.0149 0.0126 0.0187 0.0156
29 0.0135 0.0113 0.0172 0.0141
30 0.0120 0.0100 0.0157 0.0125
31 0.0105 0.0089 0.0142 0.0109
32 0.0097 0.0080 0.0134 0.0102
33 0.0090 0.0071   0.0094
34 0.0082 0.0063   0.0086
35 0.0075 0.0056   0.0078
36 0.0067     0.0070



Chemical Composition:



Grade C Si Mn P S Ni Cr Mo N
202 ≤0.15 ≤1.00 7.5～10.0 ≤0.060 ≤0.03 4.0～6.0 17.00～19.00 -
202 ≤0.15 ≤1.00 7.5～10.0 ≤0.060 ≤0.03 4.0～6.0 17.00～19.00 -
410 ≤0.15 ≤1.00 ≤1.00 ≤0.040 ≤0.03   11.50～13.50 -
430 ≤0.12 ≤1.00 ≤1.00 ≤0.040 ≤0.03   16.00～18.00 -
304 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.00～10.00 18.00～20.00 -
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00～14.00 16.00～18.00 2.00～3.00
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 12.00～15.00 16.00～18.00 2.00～3.00
430 ≤0.12 ≤1.00 ≤1.00 ≤0.040 ≤0.03   16.00～18.00 -
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 12.00～15.00 16.00～18.00 2.00～3.00
2205 ≤0.03 ≤1.00 ≤2.00 ≤0.04 ≤0.03 4.5～6.5 21.0～24.0 2.5～3.5 0.08～0.2
304 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.00～10.00 18.00～20.00 -
304L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 9.00～13.00 18.00～20.00 -



Physical Property:



Grade Tensile Strength(Mpa) Yield Strength(Mpa) Elongation(%) HBW HRB HV
410 ≥440 ≥205 ≥20 ≤201 ≤93 ≤210
430 ≥450 ≥205 ≥22 ≤183 ≤88 ≤200
304 ≥520 ≥205 ≥40 ≤187 ≤90 ≤200
316 ≥520 ≥205 ≥40 ≤187 ≤90 ≤200
316L ≥480 ≥175 ≥40 ≤187 ≤90 ≤200
2205 ≥620 ≥450 ≥25
201 ≥520 ≥275 ≥55 ≤241 ≤100 ≤253
202 ≥520 ≥275 ≥55 ≤207 ≤95 ≤218
410 ≥440 ≥205 ≥20 ≤201 ≤93 ≤210
420 ≥635 ≥440 ≥20 ≤223
430 ≥450 ≥205 ≥22 ≤183 ≤88 ≤200
304 ≥520 ≥205 ≥40 ≤187 ≤90 ≤200
304L ≥480 ≥175 ≥40 ≤187 ≤90 ≤200



Surface Finish:



316L 304 Cold Rolled Stainless Steel Sheet Plate With 2mm Thickness For Heat Exchangers 0

Surface Finish Definition Application
2B Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface General application Medical instruments, Tableware
BA Bright heat treament after cold rolling Kitchen utensil, kitchenware, architectural
8K A mirror-like reflective surface by polishing with finer abrasives over 800mesh Construction, mirrors, plate sets, decoration elevators
HL Finished by continuous linear polishing Architectural purpose, Escalators, kitchenware, vehicles
NO.1 Finished by hot rolling, annealing and picking, characterized by white pickled surface Chemical industry Equipment, industrail tanks
NO.4 Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 Kitchen utensils, Building Construction, Medical equipment



Brand Cross Reference Table:



GB NEW BRAND JIS ASTM UNS KS BS EN AS
12Cr17Mn6Ni5N SUS201 201 S20100 STS201 1.4372 201-2
12Cr18Mn9Ni5N SUS202 202 S20200 STS202 1.4373 -
12Cr17Ni7 SUS301 301 S30100 STS301 1.4319 301
06Cr19Ni10 SUS304 304 S30400 STS304 1.4301 304
022Cr19Ni10 SUS304L 304L S30403 STS304L 1.4306 304L
06Cr19Ni10N SUS304N1 304N S30451 STS304N1 1.4315 304N1
06Cr19Ni9NbN SUS304N2 XM21 S30452 STS304N2 - 304N2
022Cr19Ni10N SUS304LN 304LN S30453 STS304LN - 304LN
10Cr18Ni12 SUS305 305 S30500 STS305 1.4303 305
06Cr23Ni13 SUS309S 309S S30908 STS309S 1.4833 309S
06Cr25Ni20 SUS310S 310S S31008 STS310S 1.4845 310S
06Cr17Ni12Mo2 SUS316 3016 S31600 STS316 1.4401 316
06Cr17Ni12Mo2Ti SUS316Ti 316Ti S31635 - 1.4571 316Ti
022Cr17Ni12Mo2 SUS316L 316L S31603 STS316L 1.4404 316L
06Cr17Ni12Mo2N SUS316N 316N S31651 STS316N - 316N
022Cr17Ni13Mo2N SUS316LN 316LN S31653 STS316LN 1.4429 316LN
06Cr18Ni12Mo2Cu2 SUS316J1 - - STS316J1 - 316J1
022Cr18Ni14Mo2Cu2 SUS316J1L - - STS316J1L - -
06Cr19Ni13Mo3 SUS317 317 S31700 STS317 - 317
022Cr19Ni13Mo3 SUS317L 317L S31703 STS317L 1.4438 317L
06Cr18Ni11Tji SUS321 321 S32100 STS321 1.4541 321
06Cr18Ni11Nb SUS347 347 S34700 STS347 1.455 347
12Cr13 SUS410 410 S41000 STS410 1.4006 410
20Cr13 SUS420J1 420 S42000 STS420J1 1.4021 420
10Cr17 SUS430 430 S43000 STS430 1.4016 430



Product Display:

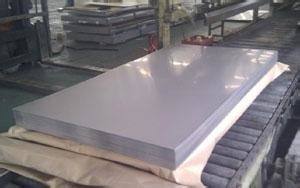

316L 304 Cold Rolled Stainless Steel Sheet Plate With 2mm Thickness For Heat Exchangers 1





Packing:



304 Stainless Steel Sheet 3mm 316 Cold Rolled Stainless Steel Sheet Plate Sheet:



l Standard packing



316L 304 Cold Rolled Stainless Steel Sheet Plate With 2mm Thickness For Heat Exchangers 2



l Fine packing



316L 304 Cold Rolled Stainless Steel Sheet Plate With 2mm Thickness For Heat Exchangers 3



Typical applications include:



  • Furnace parts
  • Oil burner parts
  • Carburising boxes
  • Heat Treatment baskets and jigs
  • Heat Exchangers
  • Welding filler wire and electrodes



Factory and Machine Equipment:



We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,



1. CNC Flame Cutting Machine

2. CNC Plasma Cutting Machine

3. CNC Laser Cutting Machine

4. Bending Machine

5. Shearing Machine

6. Punch Machine

7. Driving Machine
