TP316L ASTM A240 6x1220x2440mm Hot Rolled Sheet Steel For Automotive Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification: | MTC; SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20' or 40' GP |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 250 Tons per month |
|
Detail Information |
|||
| Name: | Hot Rolled Sheet Steel | Thickness: | 6 Mm |
|---|---|---|---|
| Type: | HRC Plate | Tolerance: | ±5% |
| Surface: | NO.1/NO.3/NO.4/8K/HL/2D/1D | Color: | Custom-made |
| Application: | Welding And Boiler Making | Grade: | 316L |
| Invoicing: | By Actual Weight | Width: | As Resquest |
| High Light: | 6x1220x2440mm rolled sheet steel,Automotive Parts rolled sheet steel,TP316L Hot Rolled Sheet Steel |
||
Product Description
TP316L ASTM A240 6x1220x2440mm hot rolled sheet steel for Automotive Parts
The specifications and dimensions of hot-rolled plates are usually customized according to customer needs, and various thicknesses, widths, and lengths of hot-rolled plates can be produced.
Product introduction:
| Commodity | TP316L ASTM A240 6x1220x2440mm hot rolled sheet steel for Automotive Parts |
| Grade | 316L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness |
6 mm |
| Width | 1220 mm |
| Length | 2440 mm |
| Surface | NO.1 2D NO.3 |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
Hot rolling can greatly reduce energy consumption and costs. The metal plastic deformation is high during hot rolling, and the deformation resistance is low, which reduces the energy consumption of metal deformation. Hot rolling can improve the processing performance of metals and alloys. |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
Gauge and Inch:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
| 23 | 0.0281 | 0.71374 | 0.0269 | 0.0306 |
| 24 | 0.025 | 0.635 | 0.0239 | 0.0276 |
| 25 | 0.0219 | 0.55626 | 0.0209 | 0.0247 |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - |
| 202 | ≤0.15 | ≤1.00 | 7.5～10.0 | ≤0.060 | ≤0.03 | 4.0～6.0 | 17.00～19.00 | - |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 316L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
Feature:
304 and 304L ASTM A240 stainless steel plate is a standard 18-8 material – meaning it contains 18% chromium and 8% nickel. 304 Stainless steel plate is one of the most versatile stainless steel materials available. It has excellent forming and welding characteristics.
Surface Finish:
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Our factory

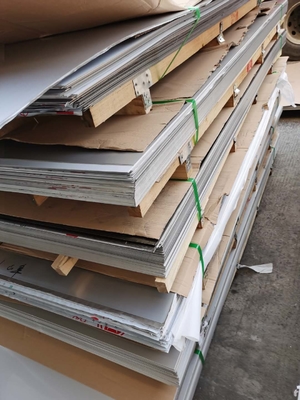

Packing:
Steel Sheet Roll TP316L ASTM A240 6x1220x2440mm Hot Rolled Sheet Steel Packing 2 types:
l Standard packing
l Fine packing

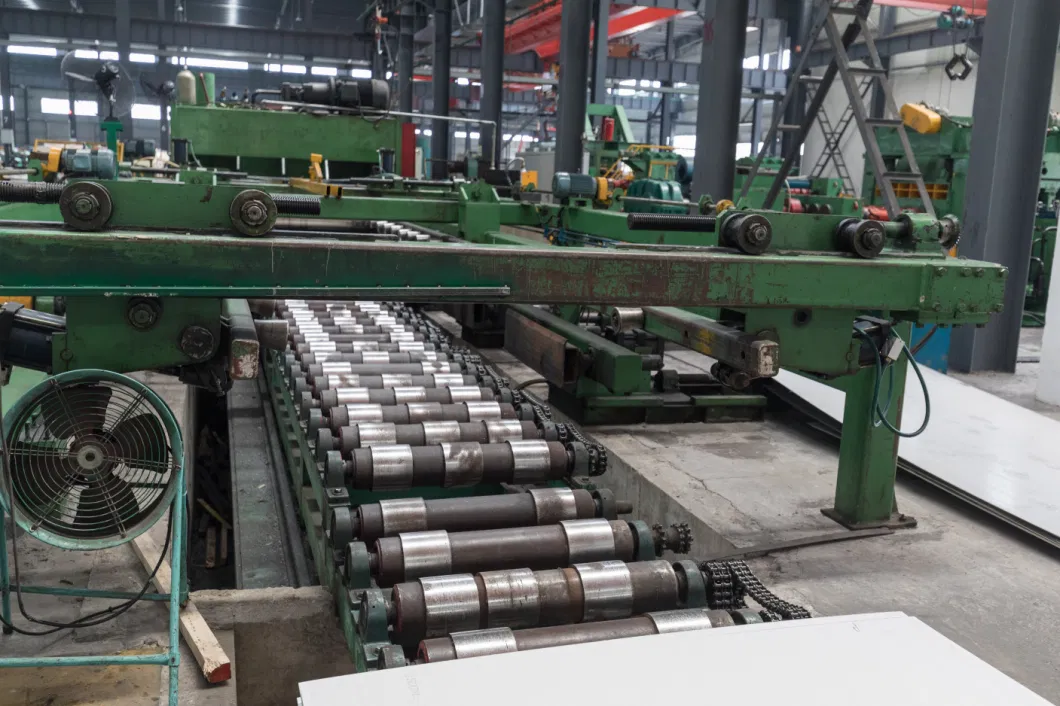

Factory and Machine Equipment:
We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine
Steel Sheet Roll TP316L ASTM A240 6x1220x2440mm Hot Rolled Sheet Steel Diaplay:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
420 grade stainless steel has a composition of 12 to 14 percent chromium, 0.15 percent carbon, 1 percent manganese, 1 percent silicon, and tiny amounts of phosphorus and sulfur. 440 grade stainless steel has higher amounts of chromium -- 16 to 18 percent -- and carbon at 0.6 to 0.75 percent.
