Roll Of Stainless Steel Sheet SUS304 SUS316 SUS316L With High-Temperature Strength
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification: | MTC; SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Coils covered with waterproof protective packing materails |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per month |
|
Detail Information |
|||
| Name: | Cold Rolled Steel Sheet In Coil | Transport Package: | Export Package |
|---|---|---|---|
| Technique: | Cold Rolled | Price Term: | FOB, CFR, CIF |
| Standard: | 304 304L 316 | Origin: | Shangdong |
| Surface: | 2B & BA & Mirror & 8K Finish | Packing: | Standard Seaworthy Package |
| Type: | Cold Rolled | ||
| High Light: | SUS316L cold rolled stainless steel coil,SUS316 cold rolled stainless steel coil,High Temperature Strength stainless steel coil |
||
Product Description
roll of stainless steel sheet SUS304 SUS316 SUS316L with High-Temperature Strength
316L stainless steel has good processing performance and can be processed into various shapes and sizes of parts through cold and hot processing. Its cold working performance is better than 304 stainless steel, and it can be processed through deep drawing, stretching, bending, and other processes. It also has good thermal processing performance and can be used for forging, casting, welding and other processing.
Basic features:
1) Cold rolled products have good appearance gloss;
2) Due to the addition of Mo (2 ~ 3%), the corrosion resistance, especially pitting corrosion resistance, is excellent
3) Excellent high temperature strength
4) Excellent work hardening (weak magnetism after machining)
5) Non magnetic in solid solution state
6) Good welding performance. All standard welding methods can be used for welding. 316cb, 316L or 309cb stainless steel filler rods or electrodes can be used for welding according to the purpose. In order to obtain the best corrosion resistance, the welded section of 316 stainless steel needs post weld annealing. If 316L stainless steel is used, post weld annealing is not required.
Product introduction :
|
Chemical composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - | |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 | |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.00～15.00 | 16.00～18.00 | 2.00～3.00 |
Mechanical property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 304 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 316 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 316L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
Gauge Size Table:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
| 06Cr17Ni12Mo2 | SUS316 | 316 | S31600 | STS316 | 1.4401 | 316 |
| 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
Surface finish :
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Difference Between Grade 304 And 316
First, although 304 stainless steel and 316 stainless steel do not have much difference in appearance, friends can distinguish the difference between them from the aspect of composition. 316 stainless steel contains Mo, which makes 316 stainless steel much better than 304 stainless steel in high temperature resistance. If buildings need to be built in a high temperature environment, most design engineers will choose 316 stainless steel, so as to give better play to the stability of products.
Second, 304 stainless steel and 316 stainless steel also have obvious differences in brand. For example, the brand of 304 stainless steel is 0Cr18Ni9, while that of 316 stainless steel is 0Cr17Ni12Mo2. When purchasing, you can obviously see the difference between the two from the parameters, which is much simpler than the difference from the shape.
Thirdly, the composition of 304 stainless steel and 316 stainless steel is also different. 316 stainless steel reduces the composition of Cr, improves the composition of Ni, and enhances its corrosion resistance. In particular, it can be used in seawater or chemical environment. 316 stainless steel is also higher in cost. Generally, 316 stainless steel will be selected for the kitchen pool during home decoration, which has stronger corrosion resistance.
.
Packaging :

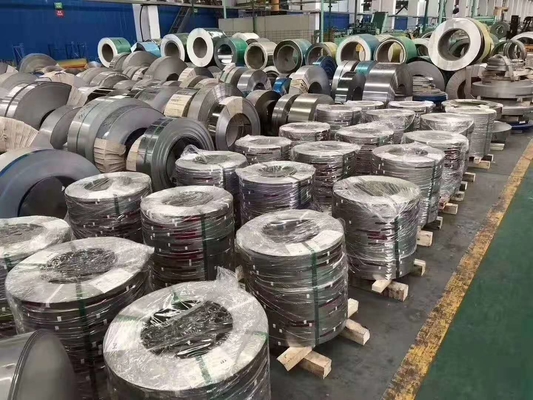

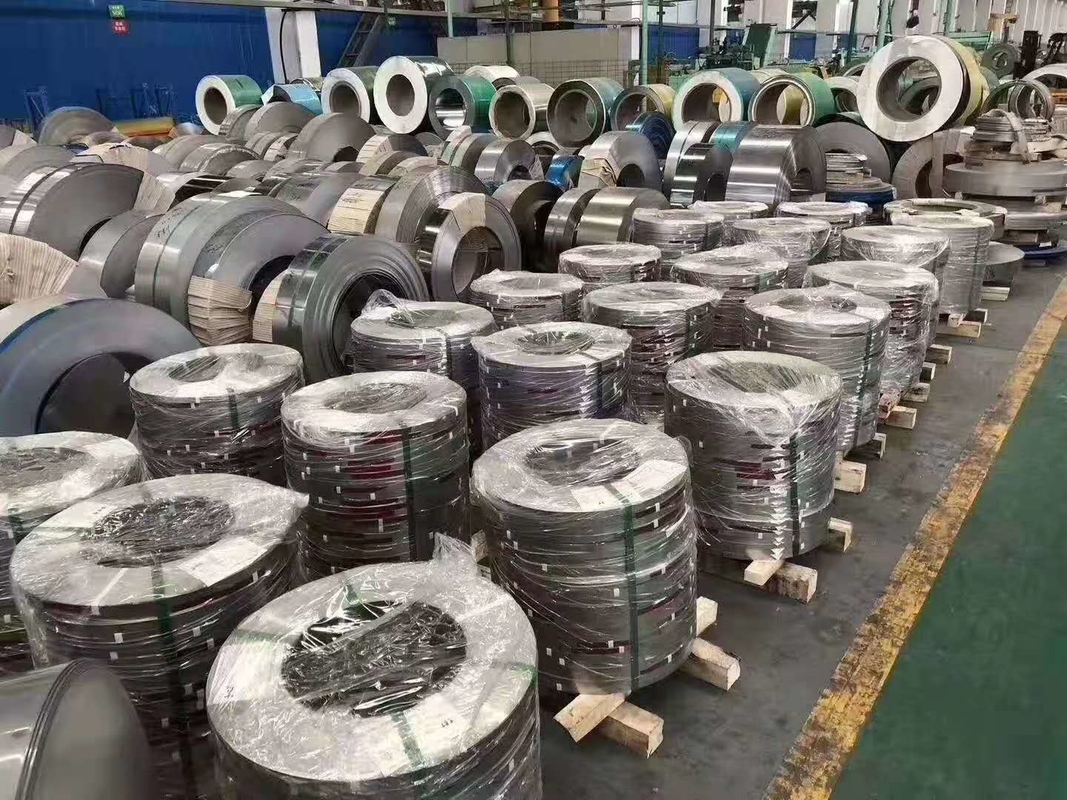

Product Display:
Cold Rolled Steel Sheet In Coil JIS SUS304 SUS316 SUS316L 1000x0.8mm packaging details :
1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel strip ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
