430 Cold Rolled Stainless Steel Coils With Good Mechanical Properties
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification: | MTC; SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Coils covered with waterproof protective packing materails |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per month |
|
Detail Information |
|||
| Name: | 430 Stainless Steel Coil | Width: | 800 Mm |
|---|---|---|---|
| Technique: | Cold Rolled | Price Term: | FOB, CFR, CIF |
| Standard: | 430 | Thickness: | 0-3 Mm |
| Surface: | BA Finish 2B Surface | Packing: | Standard Seaworthy Package |
| Service: | Sample And MTC | Usage: | Building Construction |
| Tolerance: | ±1% | ||
| High Light: | 430 Cold Rolled Stainless Steel Coils,Good Mechanical Properties Stainless Steel Coils,Cold Rolled Stainless Steel Coils 430 |
||
Product Description
430 cold rolled stainless steel coils with Good Mechanical Properties
430 stainless steel is a ferritic stainless steel with good corrosion resistance and processability, commonly used in fields such as tableware, furniture, and architectural decoration. Its chemical composition mainly includes elements such as carbon (C), silicon (Si), manganese (Mn), phosphorus (P), sulfur (S), nickel (Ni), chromium (Cr), etc. The content of chromium is about 16% -18%, which can improve the corrosion resistance of stainless steel.
Product introduction :
|
Chemical composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 430 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 |
≤0.0 3 |
16.00～18.00 | - |
Mechanical property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 430 | ≥450 | ≥205 | ≥22 | ≤183 | ≤88 | ≤200 |
Gauge Size Table:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 10Cr17 | SUS430 | 430 | S43000 | STS430 | 1.4016 | 430 |
Surface finish :
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Advantages of cold rolled stainless steel coil:
1. Cold rolled stainless steel coil has bright appearance, smooth surface in use, and strong plasticity. It can be used to make a variety of stainless steel paper products; Cold rolled stainless steel coil has good mechanical strength, which can ensure the strength of stainless steel products and prevent them from being damaged by collision; Cold rolled stainless steel coil has strong corrosion resistance and can resist the corrosion of acid, alkaline gas or other media; Because the stainless steel plate itself has a layer of oxide film, it can isolate the metal from the outside air, so that the stainless steel plate is protected from the hardness of the environment. Therefore, stainless steel can have good corrosion resistance;
2. The corrosion resistance of stainless steel mainly depends on its alloy composition and internal structure. Chromium plays a major role in use. It can form a passive film on the steel surface to protect the steel;
Packaging :

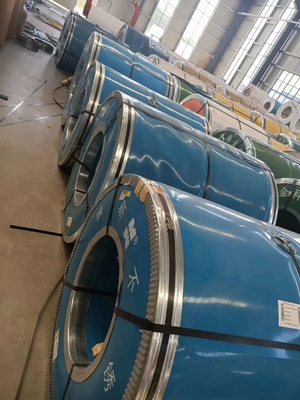

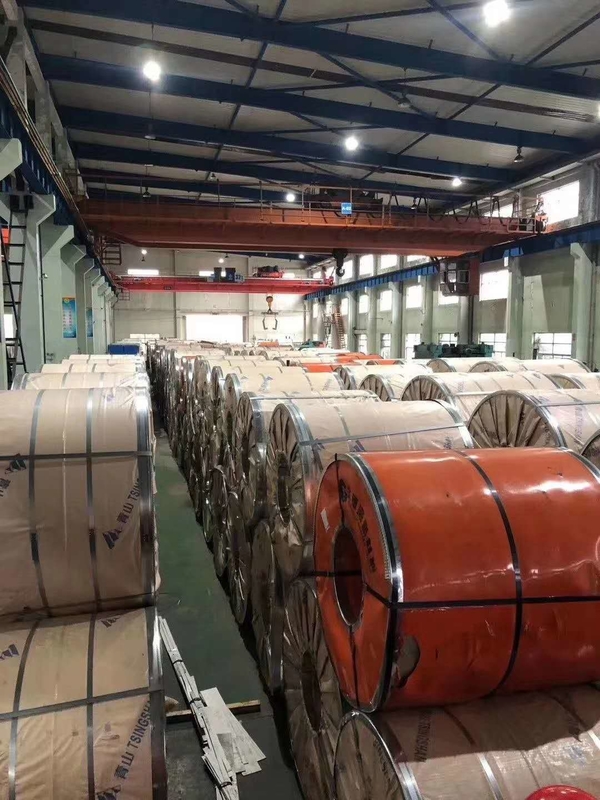

Product Display:
430 Stainless Steel Coil Ferrite Stainless Steel Roll 2B BA Finish packaging details :
1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel strip ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
