300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery

300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery

Product Details:

Place of Origin: China
Brand Name: TISCO,BAOSTEEL,POSCO,JISCO,LISCO
Certification: MTC; SGS
Model Number: 321

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: Coils covered with waterproof protective packing materails
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per month
Get Best Price Contact Now

Detail Information

Name: 310S 321 Austenite Stainless Steel CR Coil Length: Customers' Requirement
Width: 1501-2000MM Price Term: FOB, CFR, CIF
Standard: ASTM A240 Thickness: 0.9 Mm
Surface: BA Finish Packing: Standard Seaworthy Package
Service: Free Sample One

Product Description

300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery



304 stainless steel cold-rolled plate is the most common type of 300 series stainless steel, and its chemical composition is mainly iron, chromium, and nickel. 304 stainless steel cold-rolled sheet has good corrosion resistance, high temperature resistance, and wear resistance, and is a commonly used stainless steel material.
304 stainless steel cold-rolled sheet has a wide range of applications, mainly used in construction, decoration, kitchen equipment, chemical, medical and other fields. In the field of construction, 304 stainless steel cold-rolled sheet can be used to make doors and windows, railings, handrails, curtain walls, etc; In the field of decoration, 304 stainless steel cold-rolled sheet can be used to make furniture, lamps, sculptures, etc;



Product introduction :



Commodity 300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery
Grade 304 304L 316 316L 310S 321
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.9 mm
Width

1002 mm

Length as per customers'requirements
Surface BA & 2B Finish
Standard JIS,AISI,ASTM,GB,DIN, BS EN, AS
Delivery time About 15 days or based on the sales contract
MOQ 1 Ton
Advantages

Showing the splendor of your quality, wearresistant as well ,
strong corrosion resistance and decorative effect, durable and beautiful in good taste.


Chemical composition:



Grade C Si Mn P S Ni Cr Mo N
301 ≤0.15 ≤1.00 ≤2.00 ≤0.045 ≤0.03 6.008.00 16.0018.00 -
302 ≤0.15 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.0010.00 17.0019.00 -
304 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.0010.00 18.0020.00 -
304L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 9.0013.00 18.0020.00 -
310S ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 19.0022.00 24.0026.00 -
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.0014.00 16.0018.00 2.003.00
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 12.0015.00 16.0018.00 2.003.00
321 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 9.0013.00 17.0019.00 -


Mechanical property:



Grade Tensile Strength(Mpa) Yield Strength(Mpa) Elongation(%) HBW HRB HV
304L ≥480 ≥175 ≥40 ≤187 ≤90 ≤200
304 ≥520 ≥205 ≥40 ≤187 ≤90 ≤200
304J1 ≥450 ≥155 ≥40 ≤187 ≤90 ≤200
304N1 ≥550 ≥275 ≥35 ≤217 ≤95 ≤200
304N2 ≥690 ≥345 ≥35 ≤248 ≤100 ≤260
316 ≥520 ≥205 ≥40 ≤187 ≤90 ≤200
316L ≥480 ≥175 ≥40 ≤187 ≤90 ≤200
321 ≥520 ≥205 ≥40 ≤187 ≤90 ≤200



Gauge Size Table:



Gauge SS inch SS mm Mild Steel Galvanized Steel

3 0.25 6.35 0.2391
4 0.2344 5.95376 0.2242
5 0.2187 5.55498 0.2092
6 0.2031 5.15874 0.1943
7 0.1875 4.7625 0.1793
8 0.165 4.191 0.1644 0.168
9 0.1562 3.96748 0.1495 0.1532
10 0.1406 3.57124 0.1345 0.1382
11 0.125 3.175 0.1196 0.1233
12 0.1094 2.77876 0.1046 0.1084
13 0.0937 2.37998 0.0897 0.0934
14 0.0781 1.98374 0.0747 0.0785
15 0.0703 1.78562 0.0673 0.071
16 0.0625 1.5875 0.0598 0.0635
17 0.0562 1.42748 0.0538 0.0575
18 0.05 1.27 0.0478 0.0516
19 0.0437 1.10998 0.0418 0.0456
20 0.0375 0.9525 0.0359 0.0396
21 0.0344 0.87376 0.0329 0.0366
22 0.0312 0.79248 0.0299 0.0336



Brand Cross Reference Table:



GB NEW BRAND JIS ASTM UNS KS BS EN AS
12Cr17Ni7 SUS301 301 S30100 STS301 1.4319 301
06Cr19Ni10 SUS304 304 S30400 STS304 1.4301 304
022Cr19Ni10 SUS304L 304L S30403 STS304L 1.4306 304L
06Cr19Ni10N SUS304N1 304N S30451 STS304N1 1.4315 304N1
06Cr19Ni9NbN SUS304N2 XM21 S30452 STS304N2 - 304N2
022Cr19Ni10N SUS304LN 304LN S30453 STS304LN - 304LN
10Cr18Ni12 SUS305 305 S30500 STS305 1.4303 305
06Cr23Ni13 SUS309S 309S S30908 STS309S 1.4833 309S
06Cr25Ni20 SUS310S 310S S31008 STS310S 1.4845 310S
06Cr17Ni12Mo2 SUS316 316 S31600 STS316 1.4401 316
06Cr17Ni12Mo2Ti SUS316Ti 316Ti S31635 - 1.4571 316Ti
022Cr17Ni12Mo2 SUS316L 316L S31603 STS316L 1.4404 316L
06Cr17Ni12Mo2N SUS316N 316N S31651 STS316N - 316N
022Cr17Ni13Mo2N SUS316LN 316LN S31653 STS316LN 1.4429 316LN
06Cr18Ni12Mo2Cu2 SUS316J1 - - STS316J1 - 316J1
022Cr18Ni14Mo2Cu2 SUS316J1L - - STS316J1L - -
06Cr19Ni13Mo3 SUS317 317 S31700 STS317 - 317
022Cr19Ni13Mo3 SUS317L 317L S31703 STS317L 1.4438 317L
06Cr18Ni11Tji SUS321 321 S32100 STS321 1.4541 321
06Cr18Ni11Nb SUS347 347 S34700 STS347 1.455 347


Surface finish :



300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery 0


300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery 1


Surface Finish Definition Application
2B Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface General application Medical instruments, Tableware
BA Bright heat treament after cold rolling Kitchen utensil, kitchenware, architectural
8K A mirror-like reflective surface by polishing with finer abrasives over 800mesh Construction, mirrors, plate sets, decoration elevators
HL Finished by continuous linear polishing Architectural purpose, Escalators, kitchenware, vehicles
NO.1 Finished by hot rolling, annealing and picking, characterized by white pickled surface Chemical industry Equipment, industrail tanks
NO.4 Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 Kitchen utensils, Building Construction, Medical equipment



300 Series Stainless Steel Introducton:



304 is a universal stainless steel, which is widely used to make equipment and parts requiring good comprehensive performance (corrosion resistance and formability).



301 stainless steel shows obvious work hardening phenomenon during deformation, which is used in various occasions requiring high strength.



302 stainless steel is essentially a variant of 304 stainless steel with higher carbon content. It can obtain higher strength by cold rolling.



302B is a stainless steel with high silicon content, which has high resistance to high temperature oxidation.



303 and 303se



It is a free cutting stainless steel containing sulfur and selenium respectively. It is used in occasions where free cutting and surface are mainly required and the brightness is high. 303se stainless steel is also used to make parts requiring hot upsetting because it has good hot workability under such conditions.



304L is a variant of 304 stainless steel with low carbon content, which is used for occasions requiring welding. The lower carbon content minimizes the precipitation of carbides in the heat affected zone near the weld, which may lead to intergranular corrosion (welding corrosion) of stainless steel in some environments.



304n is a kind of stainless steel containing nitrogen. Nitrogen is added to improve the strength of the steel.



300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery 2

Packaging :



300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery 3



300 Series 304 304L 316 316L 310S 321 Austenite Stainless Steel CR packaging details :

1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel strip ;
3: Well loaded and be transported to the loading port .

The innner size container as below :

1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

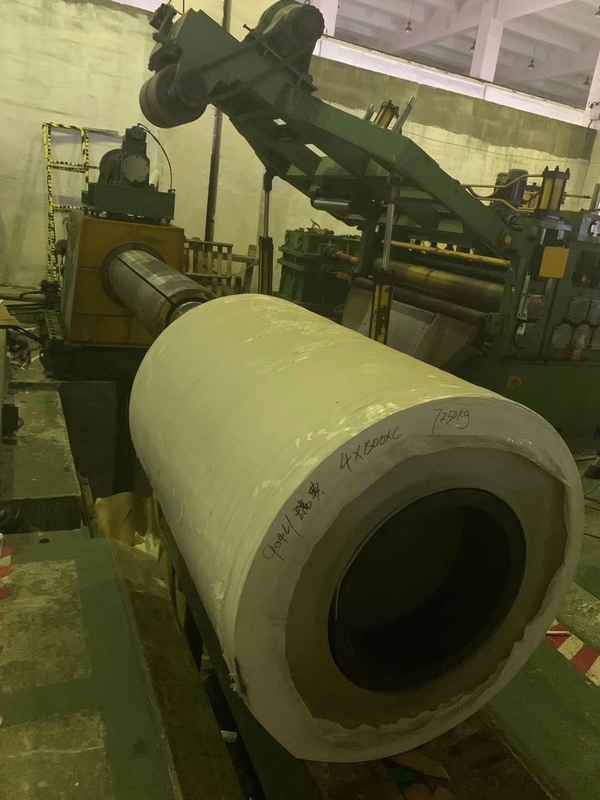

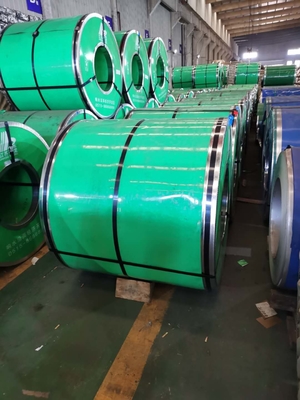

Product Display:



300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery 4300 Series 304 304L 316 316L 310S 321 cold roll steel coil for Machinery 5


WHY CHOOSE US:



Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: FOB, CIF, CFR,

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
