Cold Rolled Stainless Steel Coil For Superior Corrosion Resistance And Rust Prevention
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification: | MTC; SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Coils covered with waterproof protective packing materails |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per month |
|
Detail Information |
|||
| Width: | 950 Mm | Technique: | Cold Rolled |
|---|---|---|---|
| Price Term: | FOB, CFR, CIF | Standard: | 201 430 316 904L 304 |
| Packing: | Standard Export Packing Or As Per Customer's Request | Service: | Free Sample Provide |
| Application: | Kitchenware, Tanks, Medical Equipment, Chemical Industry, Construction | ||
| High Light: | Rust Prevention Stainless Steel Coil,Superior Corrosion Resistance Stainless Steel Coil,antiRust Cold Rolled Stainless Steel Coil |
||
Product Description
Cold Rolled 201 430 316 904L Stainless Steel Circles 304 2B Finish
It is widely used to make all kinds of container, furnace shell, furnace plate, bridge and automobile static steel plate, low
alloy steel plate, bridge steel plate, made steel plate, boiler steel plate, pressure vessel steel plate, pattern steel plate,
automobile girder steel plate. Some parts and welded components of tractors.
Product introduction :
| Product Name | Stainless steel coil |
| Standard | ASTM AISI DIN, EN, GB, JIS |
| Steel Grade |
200 Series: 201,202
300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s 400 Series: 409L,410,410s,420j1,420j2,430,444,441,436 Duplex Steel: 904L,2205,2507,2101,2520,2304 |
| Thickness | 0.1mm-60mm (as required) |
| Technique | Cold Rolled, Hot Rolled |
| Surface | No.1 2B BA 6K 8K Mirror No.4 Hairline |
| Tolerance | ±1% |
| Price Terms | FOB,CFR,CIF |
Chemical composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - | |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - | |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 18.00～20.00 | - | |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00～22.00 | 24.00～26.00 | - | |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 | |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.00～15.00 | 16.00～18.00 | 2.00～3.00 | |
| 410 | ≤0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 11.50～13.50 | - | ||
| 430 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00～18.00 | - | ||
| 420 | ≤0.15 | ≤1.00 | ≤1.00 | ≤0.04 | ≤0.03 | 12.00～14.00 |
Mechanical property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 304L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304J1 | ≥450 | ≥155 | ≥40 | ≤187 | ≤90 | ≤200 |
| 316 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 316L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
| 321 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 409L | ≥360 | ≥175 | ≥25 | ≤162 | ≤80 | ≤175 |
| 410L | ≥360 | ≥195 | ≥22 | ≤183 | ≤88 | ≤200 |
| 430 | ≥450 | ≥205 | ≥22 | ≤183 | ≤88 | ≤200 |
| 410 | ≥440 | ≥205 | ≥20 | ≤201 | ≤93 | ≤210 |
| 201 | ≥520 | ≥275 | ≥55 | ≤241 | ≤100 | ≤253 |
| 202 | ≥520 | ≥275 | ≥55 | ≤207 | ≤95 | ≤218 |
| 420 | ≥635 | ≥440 | ≥20 | ≤223 |
Gauge Size Table:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
| 12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
| 12Cr17Ni7 | SUS301 | 301 | S30100 | STS301 | 1.4319 | 301 |
| 06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
| 10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | 305 |
| 06Cr23Ni13 | SUS309S | 309S | S30908 | STS309S | 1.4833 | 309S |
| 06Cr25Ni20 | SUS310S | 310S | S31008 | STS310S | 1.4845 | 310S |
| 06Cr17Ni12Mo2 | SUS316 | 316 | S31600 | STS316 | 1.4401 | 316 |
| 06Cr17Ni12Mo2Ti | SUS316Ti | 316Ti | S31635 | - | 1.4571 | 316Ti |
| 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
| 06Cr18Ni12Mo2Cu2 | SUS316J1 | - | - | STS316J1 | - | 316J1 |
| 022Cr18Ni14Mo2Cu2 | SUS316J1L | - | - | STS316J1L | - | - |
| 12Cr13 | SUS410 | 410 | S41000 | STS410 | 1.4006 | 410 |
| 20Cr13 | SUS420J1 | 420 | S42000 | STS420J1 | 1.4021 | 420 |
| 10Cr17 | SUS430 | 430 | S43000 | STS430 | 1.4016 | 430 |
Surface finish :
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
cold rolled stainless steel coil:
Colorful coated steel coil is an extension of hot-dip galvanized steel coil. It is a kind of steel coil deep-processing commodity produced by first treating the appearance of galvanized steel coil collar and then coating. It is suitable for cold bending forming and further deep-processing. It is composed of cold rolled steel coil base material, galvanizing and coating. Because of its superior weather resistance, formability and recyclability, it has increasingly become a substitute for wood. The leading coating technology of granular scratch resistant coating at home and abroad is selected for curing, which is more than 5 times higher than that of general construction board, and can resist the scratch of sharp objects. Mainly used in garage doors, rolling shutter doors and windows, household appliances and other fields.
Packaging :
Cold Rolled 201 430 316 904L Stainless Steel Circles 304 2B Finish packaging details :
1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel strip ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

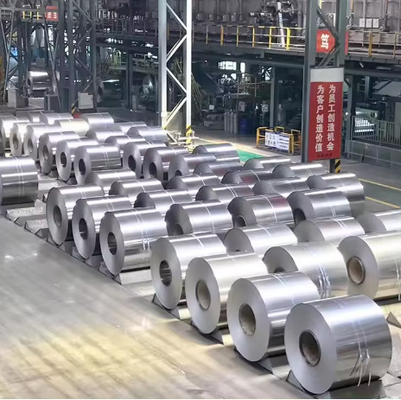

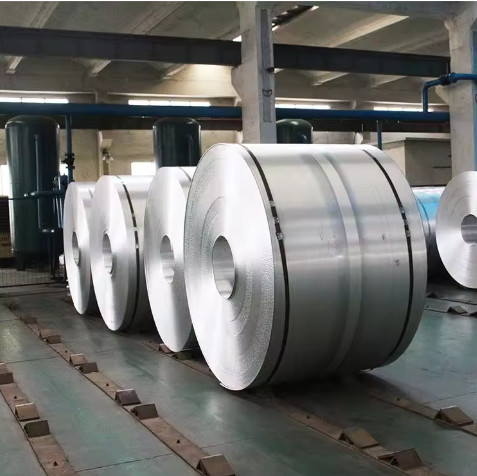

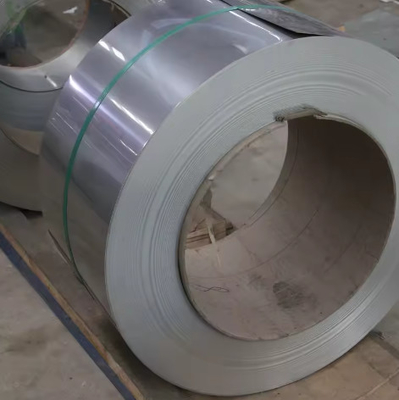

Product Display:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
