304 304L Welded Stainless Steel Pipe For High Strength Applications With Proper Heat Treatment

304 304L Welded Stainless Steel Pipe For High Strength Applications With Proper Heat Treatment

Product Details:

Place of Origin: China
Brand Name: no brand
Certification: MTC; SGS
Model Number: 304

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: Pipes be covered with waterproof protective packing materials;
Delivery Time: 15-30 working days
Supply Ability: 100 Tons per month
Get Best Price Contact Now

Detail Information

Name: 304 Stainless Steel Welded Round Pipe Thickness: 0.3-3mm
Outer Diameter: 6-101.6mm Welding Line Type: ERW
Length: Standard 5.8, 6 Meters Or Customized Finish: 240 Grit Polished
Processing Service: Welding, Cutting Invoicing: By Actual Weight
Transport Package: Export Standard Seaworthy Packing. Application: Hygiene-grade
High Light:

304 Welded Stainless Steel Pipe

,

304L Welded Stainless Steel Pipe

,

High Strength Welded Stainless Steel Pipe

Product Description

304 304L Welded Stainless Steel Pipe for High-Strength Applications with Proper Heat Treatment



304 stainless steel pipe is a commonly used stainless steel material, known for its excellent corrosion resistance and high-temperature performance. It consists of 18% to 20% chromium and 8% to 10.5% nickel, along with small amounts of carbon and other alloying elements, giving it outstanding corrosion resistance.



Product introduction:



Commodity 304 304L Welded Stainless Steel Pipe for High-Strength Applications with Proper Heat Treatment
Grade 304
Brand No brand
Certification SGS,BV,IQI,TUV,ISO,etc
Wall Thickness 0.3-3mm
Outside diameter 6-101.6mm
Length 1000-6000mm
Surface 240 grit polished
Technique welded
Standard ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery time About 15 -30 days or based on the sales contract
MOQ 1 Ton
Advantages

304 stainless steel is one of the most widely used chromium - nickel stainless steel, as a widely used steel, has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; Stamping, bending and other thermal processing, no heat treatment hardening phenomenon (use temperature (-196℃~800℃)



304 stainless steel is widely used for curtain wall, side wall, roof and other architectural purposes, but in the highly corrosive industrial or Marine atmosphere, it is best to use 316 stainless steel





Chemical Composition:



Grade Chemical Composition (WT %)
Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel
304 ≤ 0.08 ≤2.00 ≤ 0.045 ≤ 0.030 ≤ 1.00 18.00 to 20.00 8.00-10.00

Physical Property:



Physical Property
Tensile Strength(MPa) Yield Strength(MPa) Elongation(%) Elastic Modulus Hardness Density

≥520

205

≥40

/

≤200HV

7.93g/cm3



The following table is the size of the stainless steel seamless tube. For any other detail information, please feel free to contact us.



Typicall material :



Seamless and redrawn
ASTM Grade UNS no. Condition Specifications
304 S30400 Hard AMS 5566/5564
304 S30400 Hard MILT 5695
304 S30400 Hard LN 9396
304 S30400 Hard LN 9398
304 S30400 Annealed MILT 8504
304L S30403 Hard AMS 5569
304L S30403 Hard or annealed AIR 9164
304L S30403 Hard or annealed AIR 9160
304L S30403 Annealed AIR 9423
304L S30403 Annealed AIR 9424
321 S32100 Annealed AMS 5645, AMS 5557/5570
321 S32100 Hard or annealed AIR 9164
321 S32100 Hard or annealed AIR 9160
321 S32100 Annealed AIR 9423
321 S32100 Annealed AIR 9424
321 S32100 Annealed BSI T67
321 S32100 Annealed LN 9396
321 S32100 Annealed MILT 8808
321/347 S34700 Annealed LN 9398
347 S34700 Annealed AMS 5571/5556
347 S34700 Hard BSI T68





Surface grit :



304 304L Welded Stainless Steel Pipe For High Strength Applications With Proper Heat Treatment 0

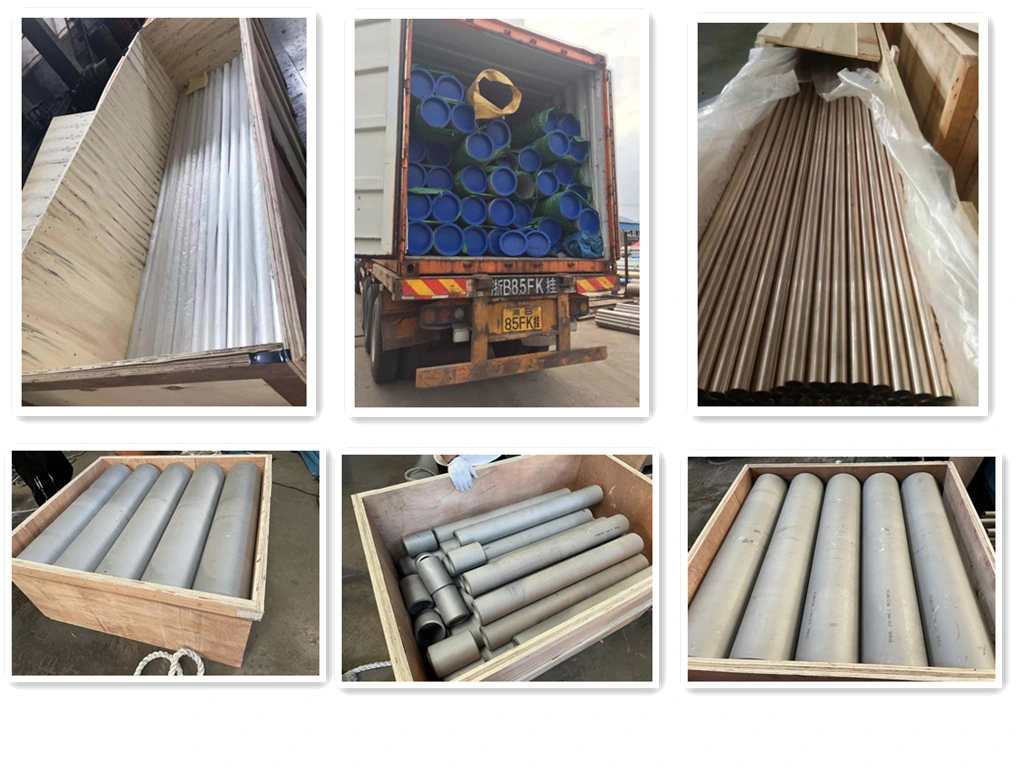

Packaging:



Maxi metal has its own shipping company to ensure lowest freight,professional service on delivery and Custom Clearance,we arrange good packing like wooden case, waterproof paper to ensure goods in a safty condition during transport.

Capillary Stainless Steel Seamless Round Welded Pipe Seamless Steel Pipe



ASTM A554 201 180 Grit polished Stainless Steel Welded Round Pipe SS Tube Packing Details :



1: Pipes be covered with waterproof protective packing materials;

2: Then be bundled with strips together;

3: Well loaded and be transported to the loading port.



The inner size container as below:



1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

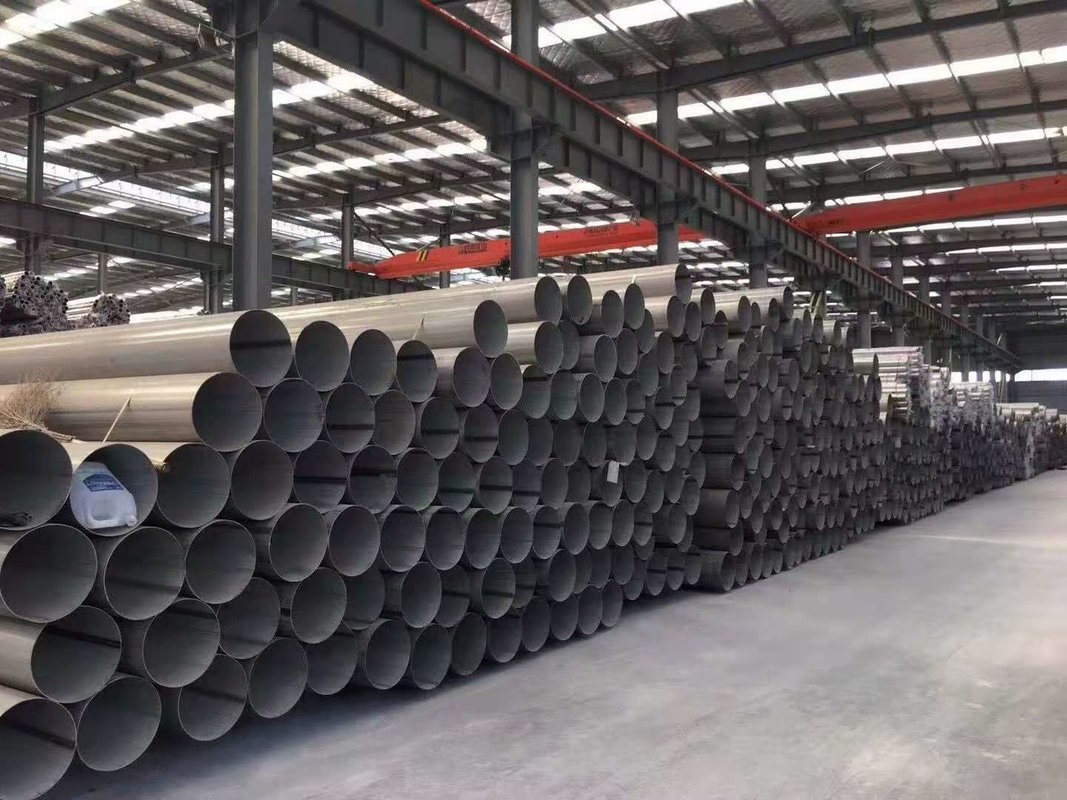

Product Show:



304 304L Welded Stainless Steel Pipe For High Strength Applications With Proper Heat Treatment 2



WHY CHOOSE US:



Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: FOB, CIF, CFR,

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
