ASTM A554 304 Welded Stainless Steel Pipe With 600 Grit Polished Surface For Diverse Needs
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 304 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes be covered with waterproof protective packing materials; |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 100 Tons per month |
|
Detail Information |
|||
| Name: | 304 SS Welded Round Tubing | Thickness: | 0.3-3mm |
|---|---|---|---|
| Outer Diameter: | 6-101.6mm | THK Tolerance: | ±5% |
| Length: | Standard 5.8, 6 Meters Or Customized | Advantage: | High Precision |
| Classify: | Decorated | Grade: | SUS304 |
| Port: | Shanghai, China | Application: | Hygiene-grade |
| High Light: | Diverse Welded Stainless Steel Pipe,304 Welded Stainless Steel Pipe,ASTM A554 Welded Stainless Steel Pipe |
||
Product Description
ASTM A554 304 Welded Stainless Steel Pipe with 600 Grit Polished Surface for Diverse Needs
304 stainless steel pipe offers good weldability and formability, allowing for easy fabrication into different shapes and sizes. This versatility makes it a popular choice for a wide range of applications.
The high-temperature resistance of 304 stainless steel pipe makes it ideal for use in applications where elevated temperatures are encountered, such as in exhaust systems, boilers, and heat exchangers.
Additionally, 304 stainless steel pipe is easy to clean and maintain, making it suitable for sanitary and hygienic applications such as in the pharmaceutical and food processing industries.
Product introduction:
| Commodity | ASTM A554 304 Welded Stainless Steel Pipe with 600 Grit Polished Surface for Diverse Needs |
| Grade | 304 |
| Brand | No brand |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Wall Thickness | 0.3-3mm |
| Outside diameter | 6-101.6mm |
| Length | 1000-6000mm |
| Surface | 600 grit polished |
| Technique | welded |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
Stainless steel pipe applies to petroleum, chemical industry, electric power, boiler ,high temperature resistant low temperature resistant ,corrosion resistant seamless steel pipe used. Stainless steel pipe and other material can be made according to the customers’ requirements. |
304 stainless steel is a common stainless steel material, density of 7.93 g/cm³, the industry is also known as 18/8 stainless steel. High temperature resistance of 800℃, with good processing performance, high toughness, widely used in industry and furniture decoration industry and food and medical industry.
Chemical Composition:
| Grade | Chemical Composition (WT %) | ||||||
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | |
| 304 | ≤ 0.08 |
≤2.00 |
≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 18.0 to 20.0 | 8.0-10.0 |
Physical Property:
| Physical Property | |||||
| Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) | Elastic Modulus | Hardness | Density |
|
≥520 |
≥205 |
≥40 |
/ | ≤210HV | 7.93g/cm3 |
The following table is the size of the stainless steel seamless tube. For any other detail information, please feel free to contact us.
Typicall material :
| Seamless and redrawn | |||
| ASTM Grade | UNS no. | Condition | Specifications |
| 304 | S30400 | Hard | AMS 5566/5564 |
| 304 | S30400 | Hard | MILT 5695 |
| 304 | S30400 | Hard | LN 9396 |
| 304 | S30400 | Hard | LN 9398 |
| 304 | S30400 | Annealed | MILT 8504 |
| 304L | S30403 | Hard | AMS 5569 |
| 304L | S30403 | Hard or annealed | AIR 9164 |
| 304L | S30403 | Hard or annealed | AIR 9160 |
| 304L | S30403 | Annealed | AIR 9423 |
| 304L | S30403 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | AMS 5645, AMS 5557/5570 |
| 321 | S32100 | Hard or annealed | AIR 9164 |
| 321 | S32100 | Hard or annealed | AIR 9160 |
| 321 | S32100 | Annealed | AIR 9423 |
| 321 | S32100 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | BSI T67 |
| 321 | S32100 | Annealed | LN 9396 |
| 321 | S32100 | Annealed | MILT 8808 |
| 321/347 | S34700 | Annealed | LN 9398 |
| 347 | S34700 | Annealed | AMS 5571/5556 |
| 347 | S34700 | Hard | BSI T68 |
Surface grit :
Packaging:

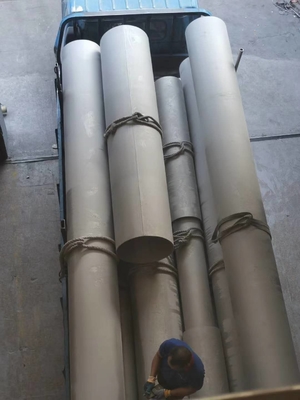

ASTM A554 304 600 grit polished Stainless Steel Welded Pipe Round Tube Packing Details :
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

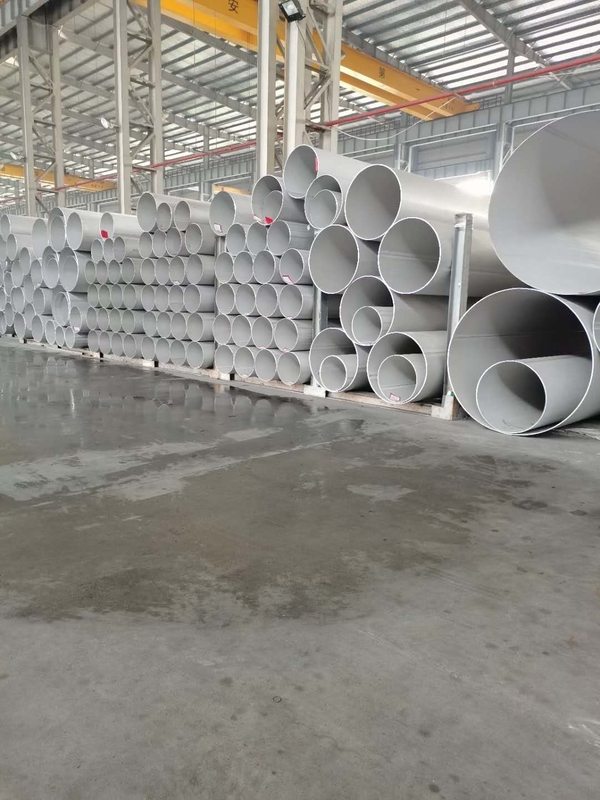

Product Show:
