TP316L Stainless Steel Pipe SS Welded Tubing With Superior Corrosion And Heat Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 316L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes be covered with waterproof protective packing materials; |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 100 Tons per month |
|
Detail Information |
|||
| Name: | 316L Stainless Steel Welded Pipe | Thickness: | 1.5-30mm |
|---|---|---|---|
| Outer Diameter: | 6-630mm | THK Tolerance: | ±5% |
| Length: | Standard 5.8, 6 Meters Or Customized | Finish: | Pickled |
| Technique: | Buttwelded | Package: | Standard Seaworthy Package |
| MOQ: | 1 Ton | Application: | Industry/Chemical Equipment/Kitchen |
| High Light: | Heat Resistance TP316L Stainless Steel Pipe,Welded TP316L Stainless Steel Pipe,Heat Resistance SS Welded Tubing |
||
Product Description
TP316L Stainless Steel Pipe SS Welded Tubing with Superior Corrosion and Heat Resistance
Widely used in industries such as marine, chemical processing, pharmaceuticals, and medical devices, 316L stainless steel pipe is favored for its ability to withstand corrosive environments, including those with exposure to chlorides and acids.
The low carbon content in 316L stainless steel pipe improves its weldability and reduces the risk of sensitization, making it suitable for welding without post-weld annealing in most cases. This enhances its versatility in fabrication and installation processes.
Product introduction:
| Commodity | TP316L Stainless Steel Pipe SS Welded Tubing with Superior Corrosion and Heat Resistance |
| Grade | 316L |
| Brand | no brand |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Wall Thickness | 1.5-30mm |
| Outside diameter | 6-630mm |
| Length | 1000-6000mm |
| Surface | pickled |
| Technique | welded |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
Stainless steel pipe applies to petroleum, chemical industry, electric power, boiler ,high temperature resistant low temperature resistant ,corrosion resistant seamless steel pipe used. Stainless steel pipe and other material can be made according to the customers’ requirements. |
Type 316L stainless steel contains molybdenum and is therefore significantly superior to 304 stainless steel in pitting resistance in Marine and chemical industry environments
Chemical Composition:
| Grade | Chemical Composition (WT %) | ||||||
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | |
| 316L | ≤ 0.03 |
≤ 2.00
|
≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 16.00 to 18.00 | ≤ 12.00-15.00 |
Physical Property:
| Physical Property | |||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation % | Elastic Modulus | Hardness | Density |
|
≥480 |
≥175
|
≥40 |
/ |
≤200HV
|
7.98g/cm3 |
The following table is the size of the stainless steel seamless tube. For any other detail information, please feel free to contact us.
Typicall material :
| Seamless and redrawn | |||
| ASTM Grade | UNS no. | Condition | Specifications |
| 304 | S30400 | Hard | AMS 5566/5564 |
| 304 | S30400 | Hard | MILT 5695 |
| 304 | S30400 | Hard | LN 9396 |
| 304 | S30400 | Hard | LN 9398 |
| 304 | S30400 | Annealed | MILT 8504 |
| 304L | S30403 | Hard | AMS 5569 |
| 304L | S30403 | Hard or annealed | AIR 9164 |
| 304L | S30403 | Hard or annealed | AIR 9160 |
| 304L | S30403 | Annealed | AIR 9423 |
| 304L | S30403 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | AMS 5645, AMS 5557/5570 |
| 321 | S32100 | Hard or annealed | AIR 9164 |
| 321 | S32100 | Hard or annealed | AIR 9160 |
| 321 | S32100 | Annealed | AIR 9423 |
| 321 | S32100 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | BSI T67 |
| 321 | S32100 | Annealed | LN 9396 |
| 321 | S32100 | Annealed | MILT 8808 |
| 321/347 | S34700 | Annealed | LN 9398 |
| 347 | S34700 | Annealed | AMS 5571/5556 |
| 347 | S34700 | Hard | BSI T68 |
SCH Table :
Surface :
Packaging:
ASTM A312 TP316L Stainless Steel Pipe SS Welded Tubing packaging details:
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

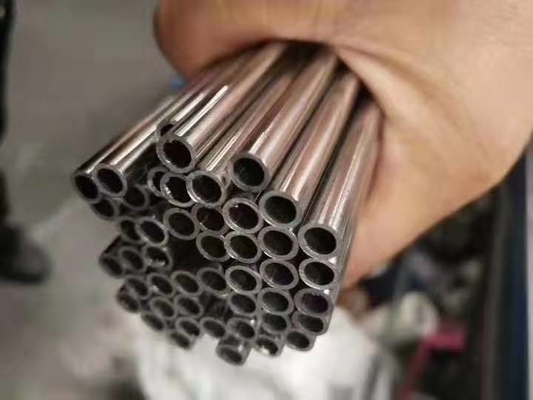

Product Show:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
