Submerged Arc Welded Stainless Steel Pipe 347 LSAW Steel Pipe OD 120mm
Product Details:
| Place of Origin: | China |
| Brand Name: | No brand |
| Certification: | MTC; SGS |
| Model Number: | 347 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes be covered with waterproof protective packing materials; |
| Delivery Time: | 15-35 working days |
| Supply Ability: | 100 Tons per month |
|
Detail Information |
|||
| Name: | 347 LSAW Stainless Steel Pipe | Thickness: | 0.25 Mm |
|---|---|---|---|
| Outer Diameter: | 120 Mm | THK Tolerance: | ±5% |
| Length: | Standard 5.8, 6 Meters Or Customized | Welding Line Type: | EFW |
| Classify: | Industrial | Grade: | 347 |
| MOQ: | 1 Ton | Application: | Building Decoration, Fuel Burner Parts, Household Appliances, Home Appliance Parts |
| High Light: | Submerged Arc Welded Stainless Steel Pipe,347 LSAW Steel Pipe,OD 120mm LSAW Steel Pipe |
||
Product Description
Longigudinally Submerged Arc Welding 347 LSAW Steel Pipe Large Diameter
LSAW steel pipe (Longitudinally Submerged Arc Welding abbreviated as LSAW) is a professional expression term for LSAW steel pipe. It uses a single medium and thick plate as the raw material, and the steel plate is pressed (rolled) into a tube blank in a mold or a forming machine.
Product introduction:
| Commodity | Longigudinally Submerged Arc Welding 347 LSAW Steel Pipe Large Diameter |
| Grade | 347 |
| Brand | No brand |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Wall Thickness | 2.5 mm |
| Outside diameter | 120 mm |
| Length | 1000-6000mm |
| Surface | annealed and pickled |
| Technique | welded |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
1) High strength; 2) Excellent machinability 3) hardening occurs after heat treatment; 4) magnetic; 5) Not suitable for harsh corrosive environment. |
347 stainless steel is a columbium/tantalum stabilized austenitic chromium-nickel stainless steel. Type 347 has excellent intergranular corrosion resistance and oxidation resistance. at high temperatures. This material is stabilized against chromium carbide formation by the addition of columbium and tantalum.
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 347 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 9.00～13.00 | 17.00～19.00 | - |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 347 | ≥520 | ≥205 | ≥35 | ≤187 | ≤90 | ≤200 |
The following table is the size of the stainless steel seamless tube. For any other detail information, please feel free to contact us.
Typicall material :
| Seamless and redrawn | |||
| ASTM Grade | UNS no. | Condition | Specifications |
| 304 | S30400 | Hard | AMS 5566/5564 |
| 304 | S30400 | Hard | MILT 5695 |
| 304 | S30400 | Hard | LN 9396 |
| 304 | S30400 | Hard | LN 9398 |
| 304 | S30400 | Annealed | MILT 8504 |
| 304L | S30403 | Hard | AMS 5569 |
| 304L | S30403 | Hard or annealed | AIR 9164 |
| 304L | S30403 | Hard or annealed | AIR 9160 |
| 304L | S30403 | Annealed | AIR 9423 |
| 304L | S30403 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | AMS 5645, AMS 5557/5570 |
| 321 | S32100 | Hard or annealed | AIR 9164 |
| 321 | S32100 | Hard or annealed | AIR 9160 |
| 321 | S32100 | Annealed | AIR 9423 |
| 321 | S32100 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | BSI T67 |
| 321 | S32100 | Annealed | LN 9396 |
| 321 | S32100 | Annealed | MILT 8808 |
| 321/347 | S34700 | Annealed | LN 9398 |
| 347 | S34700 | Annealed | AMS 5571/5556 |
| 347 | S34700 | Hard | BSI T68 |
SCH Table :
Surface Finish:
Packaging:
Longigudinally Submerged Arc Welding 347 LSAW Steel Pipe Large Diameter packaging details:
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

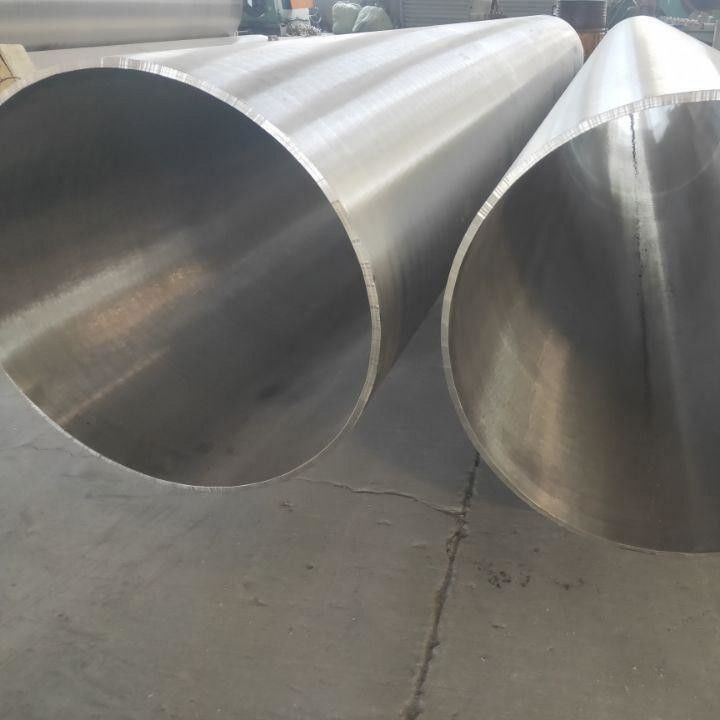

Product Show:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
