ASTM A312 TP304 Welded Stainless Steel Pipe For Long Lasting And Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | no brand |
| Certification: | MTC; SGS |
| Model Number: | 304 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pipes be covered with waterproof protective packing materials; |
| Delivery Time: | 10-35 working days |
| Supply Ability: | 100 Tons per month |
|
Detail Information |
|||
| Name: | Welde Pipe Ss 304 | Thickness: | 1.5-30mm |
|---|---|---|---|
| Outer Diameter: | 6-630mm | THK Tolerance: | ±5% |
| Length: | Standard 5.8, 6 Meters Or Customized | Finish: | Pickled |
| Technique: | Buttwelded | Grade: | BS 1.4372; JIS SUS201; UNS S20100 |
| Trademark: | ST | Specification: | ASTM |
| High Light: | Performance Welded Stainless Steel Pipe,Long-Lasting Welded Stainless Steel Pipe,ASTM A312 TP304 Pipe |
||
Product Description
ASTM A312 TP304 Welded Stainless Steel Pipe for Long-Lasting and Performance
304 stainless steel exhibits good strength and toughness at room temperature, meeting various structural requirements.
With proper heat treatment, SUS304 and 304L can enhance their mechanical properties such as tensile strength, yield strength, etc.
Overall, SUS304 and 304L are high-performance, versatile stainless steel materials widely recognized and utilized in various fields.
Product introduction:
| Commodity | ASTM A312 TP304 Welded Stainless Steel Pipe for Long-Lasting and Performance |
| Grade | 304 |
| Brand | No brand |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Wall Thickness | 1.5-30mm |
| Outside diameter | 6-630mm |
| Length | 1000-6000mm |
| Surface | matt surface |
| Technique | welded |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
Stainless steel pipe applies to petroleum, chemical industry, electric power, boiler ,high temperature resistant low temperature resistant ,corrosion resistant seamless steel pipe used. Stainless steel pipe and other material can be made according to the customers’ requirements. |
304 is a universal stainless steel, which is widely used in the manufacture of equipment and parts requiring good comprehensive properties (corrosion resistance and formability)
Chemical Composition:
| Grade | Chemical Composition (WT %) | ||||||
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | |
| 304 | ≤ 0.08 |
≤ 2.0
|
≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 18.00 to 20.00 | ≤ 8.0-10.0 |
Physical Property:
| Physical Property | |||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation % | Elastic Modulus | Hardness | Density |
|
≥520 |
≥205
|
≥40 |
/ |
≤200HV
|
7.93g/cm3 |
The following table is the size of the stainless steel seamless tube. For any other detail information, please feel free to contact us.
Typicall material :
| Seamless and redrawn | |||
| ASTM Grade | UNS no. | Condition | Specifications |
| 304 | S30400 | Hard | AMS 5566/5564 |
| 304 | S30400 | Hard | MILT 5695 |
| 304 | S30400 | Hard | LN 9396 |
| 304 | S30400 | Hard | LN 9398 |
| 304 | S30400 | Annealed | MILT 8504 |
| 304L | S30403 | Hard | AMS 5569 |
| 304L | S30403 | Hard or annealed | AIR 9164 |
| 304L | S30403 | Hard or annealed | AIR 9160 |
| 304L | S30403 | Annealed | AIR 9423 |
| 304L | S30403 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | AMS 5645, AMS 5557/5570 |
| 321 | S32100 | Hard or annealed | AIR 9164 |
| 321 | S32100 | Hard or annealed | AIR 9160 |
| 321 | S32100 | Annealed | AIR 9423 |
| 321 | S32100 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | BSI T67 |
| 321 | S32100 | Annealed | LN 9396 |
| 321 | S32100 | Annealed | MILT 8808 |
| 321/347 | S34700 | Annealed | LN 9398 |
| 347 | S34700 | Annealed | AMS 5571/5556 |
| 347 | S34700 | Hard | BSI T68 |
SCH Table:
Surface Finish:
Packaging:
Welded Pipe ASTM A312 TP304 Stainless Steel Pipe SS Tube packaging details:
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

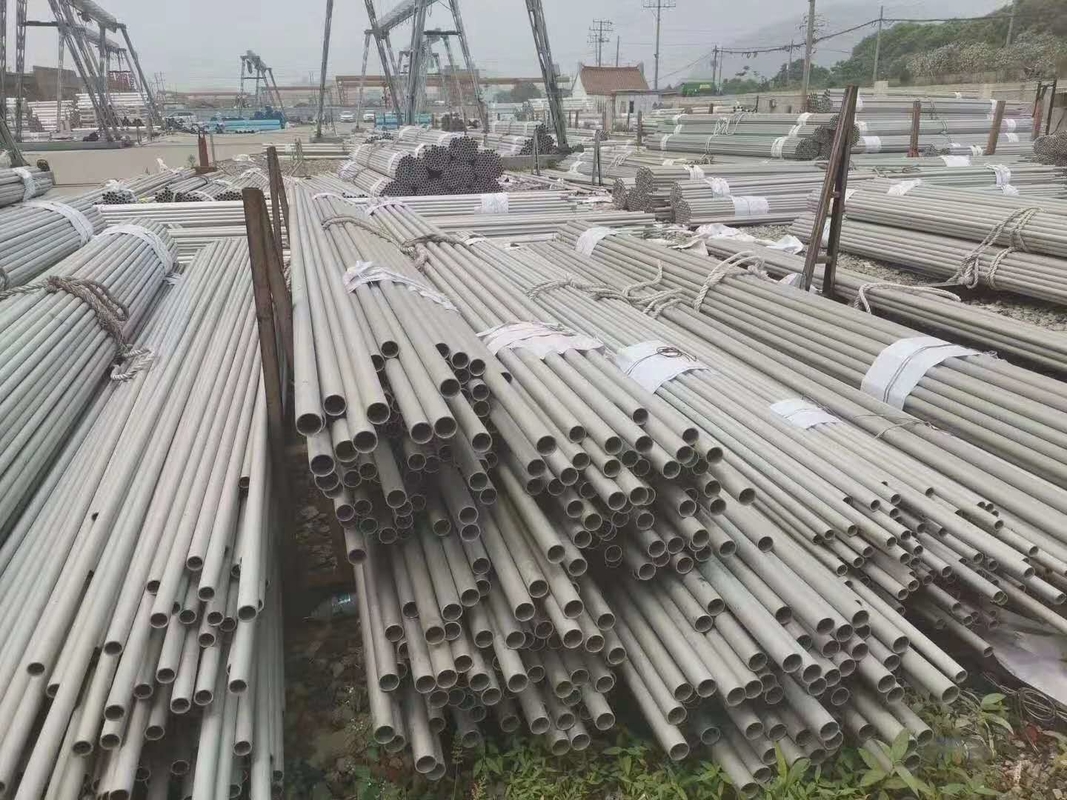

Product Show:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
